Delta DVP-ES3 Series User Manual

Chapter 4 Installing Hardware
4-31
4_

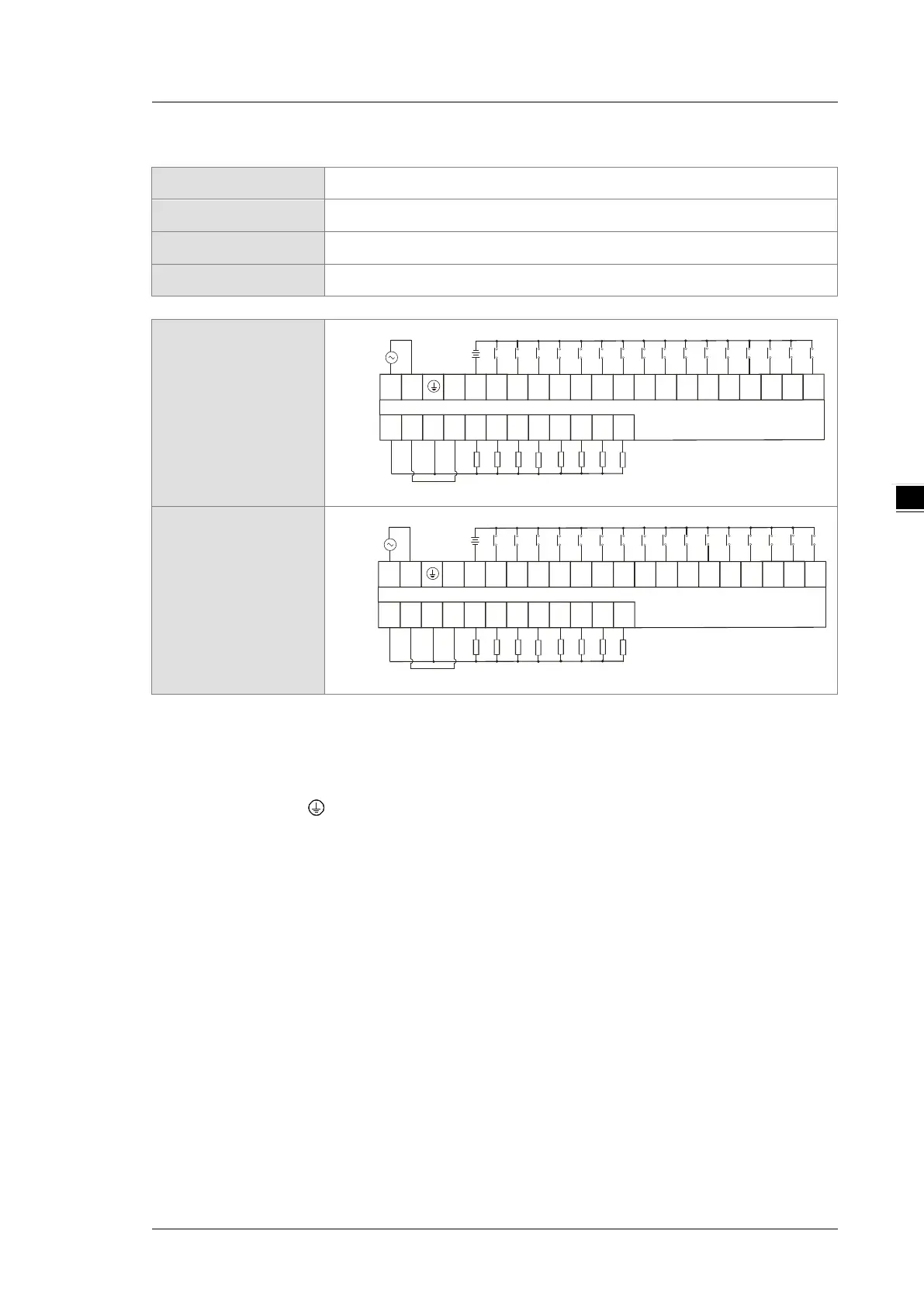

4.7.12 Wiring DVP24XP200T
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Output type
Transistor-T (sinking)
Voltage specifications
5 to 30 VDC, 0.5A/output, 4A/COM
Sinking input and output
OUT
ZP
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP24XP200T ( 16DI/8DO)
+24V 24G
S/S
X0
X1 X2
X3
X4
X5 X6 X7
IN
NCL N
UP
X10
X11 X12
X13
X14
X15 X16
X17
Sourcing input and
sinking output
OUT
ZP
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP24XP200T ( 16DI/8DO)
+24V 24G
S/S
X0
X1 X2
X3
X4
X5 X6 X7
IN
NC
L N
UP
X10
X11 X12
X13
X14
X15 X16
X17
Note:
1. You need to add external power supply 24 VDC (-15% ~ +20%) for UP and ZP; power consumption is up to
15 mA.
2. Connect the terminal to ground.
