Delta DVP-ES3 Series User Manual

Chapter 8 Hardware Configuration
8-5
8_

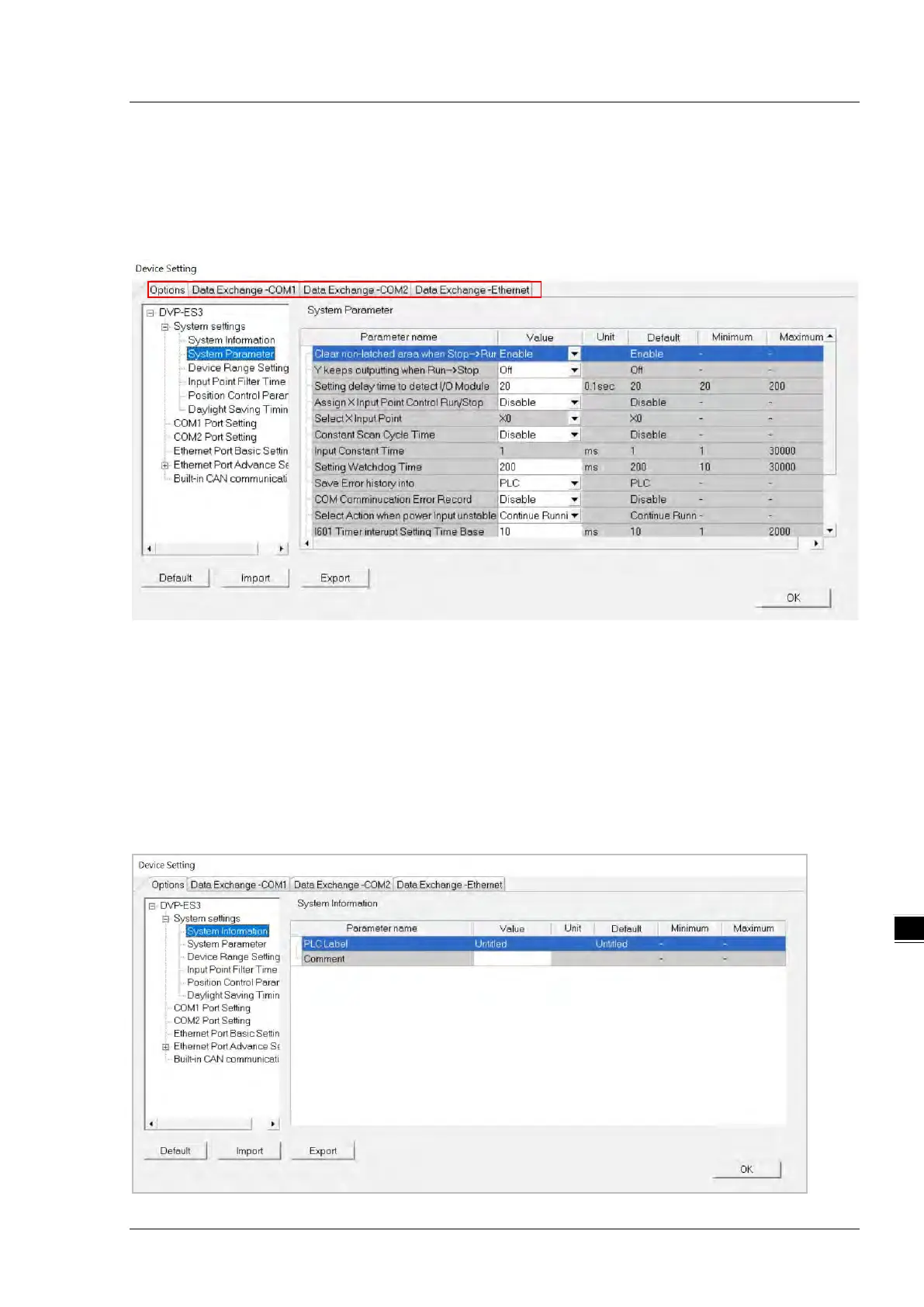

The parameters are classified into several types. Click the tabs at the top of the Device Setting dialog box and then
click the setting options in the tree on the left. The setting parameters for the selected setting option appear on the
right in the Device Setting dialog box. Click the option on the left, and then set Value, Unit, Default, Minimum and
Maximum for each parameter.
8.2.2 Setting the Basic CPU Parameters
8.2.2.1 Options - System Information Page
In the Device Setting dialog box, click the Options tab, and unfold the System settings to set up the settings of
System Information, System Parameter, Device Range Setting, Input Point Filter Time, Position Control Para,
and Daylight Saving Timing.
