12.1.4 System Log
If ISPSoft is connected to a DVP-ES3 Series, you can view actions and errors in the DVP-ES3 Series by clicking System
Log on the PLC menu. The CPU can store up to 20 error log sets. After the 20 sets are stored, the 1
st
log is replaced with
the 21
st
if there are new logs coming in, and the old logs are replaced with the new ones sequentially. When the memory
card is installed in the CPU module, 20 sets of the old logs are backed up in the memory card and up to 1000 logs can be
recorded. If the stored logs exceed 1000, the oldest 20 logs are replaced with the newest 20 logs in the memory card.

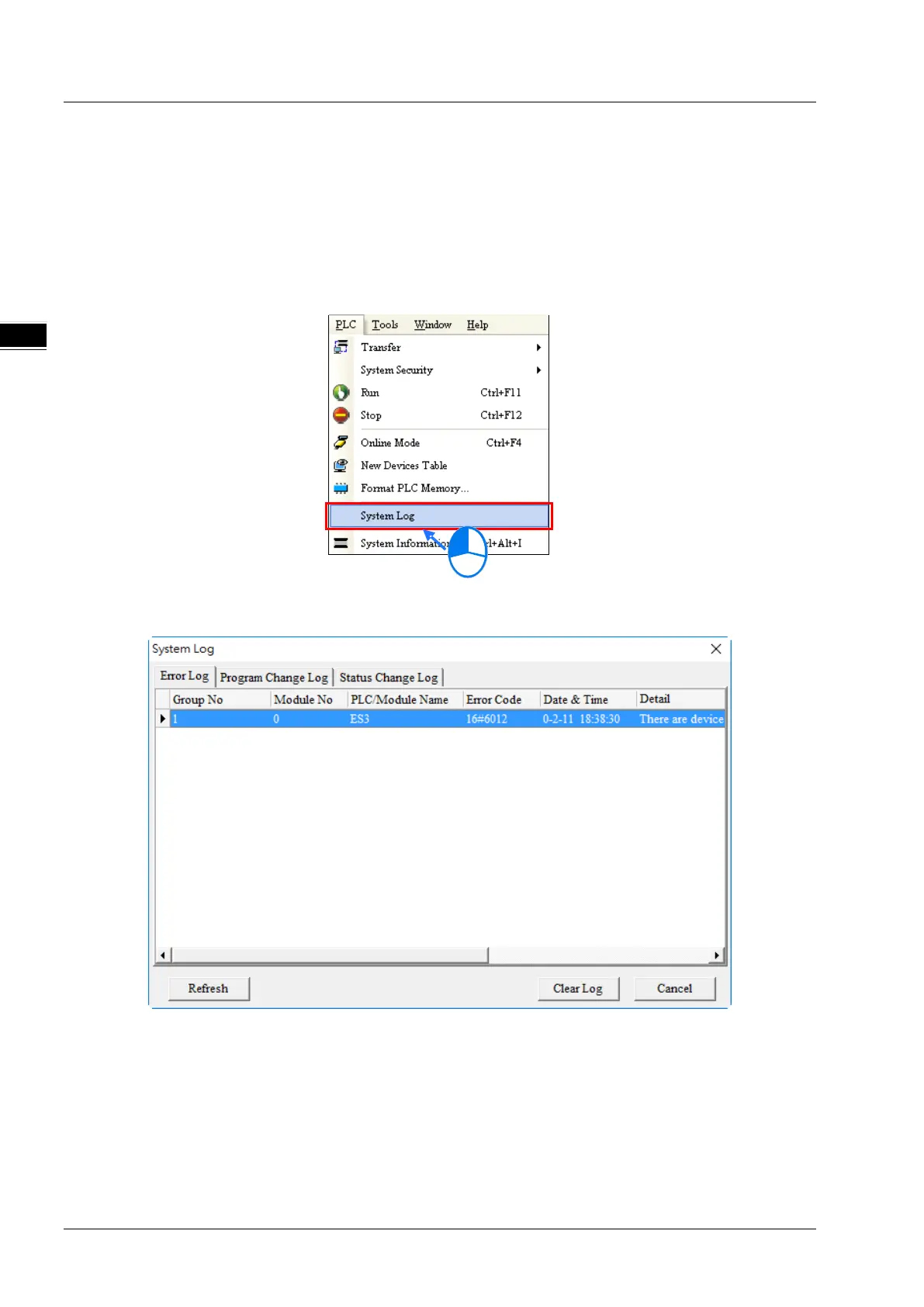

(1) On the PLC menu, click System Log.
(2) The System Log window appears. Click Clear Log to clear the error log in the window and the error log in the CPU
module, and reset the CPU module.
 Group No.: The number 1 indicates that the error occurred in the CPU module or the right-side module 1.
 Module No.: The number 0 indicates that the error occurred in the CPU module or the remote module. T
 PLC/Module name: Model names of the CPU, remote, and extension modules.
 Error Code: Error codes in the error log.
 Date & Time: The date and time the error occurred. The most recently occurring error is listed on the top.
 The last column shows the descriptions for the error.
