Delta DVP-ES3 Series User Manual

DVP-ES3 Series Operation Manual
2-25
_2
Number
Name
Description
ERROR LED indicator
Error status of the module
ON: a serious error occurs in the module.
OFF: the module is normal.
Blinking: a minor error occurs in the module.
Analog to digital conversion
indicator
Indicates the analog to digital conversion status
Blinking: conversion is taking place
OFF: stop conversion
6
External module connection
port
Connects the modules
7
DIN rail slot (35 mm)
For the DIN rail
8
I/O module securing clip
Secures the modules
9
Mounting hole
Secures the module on the set

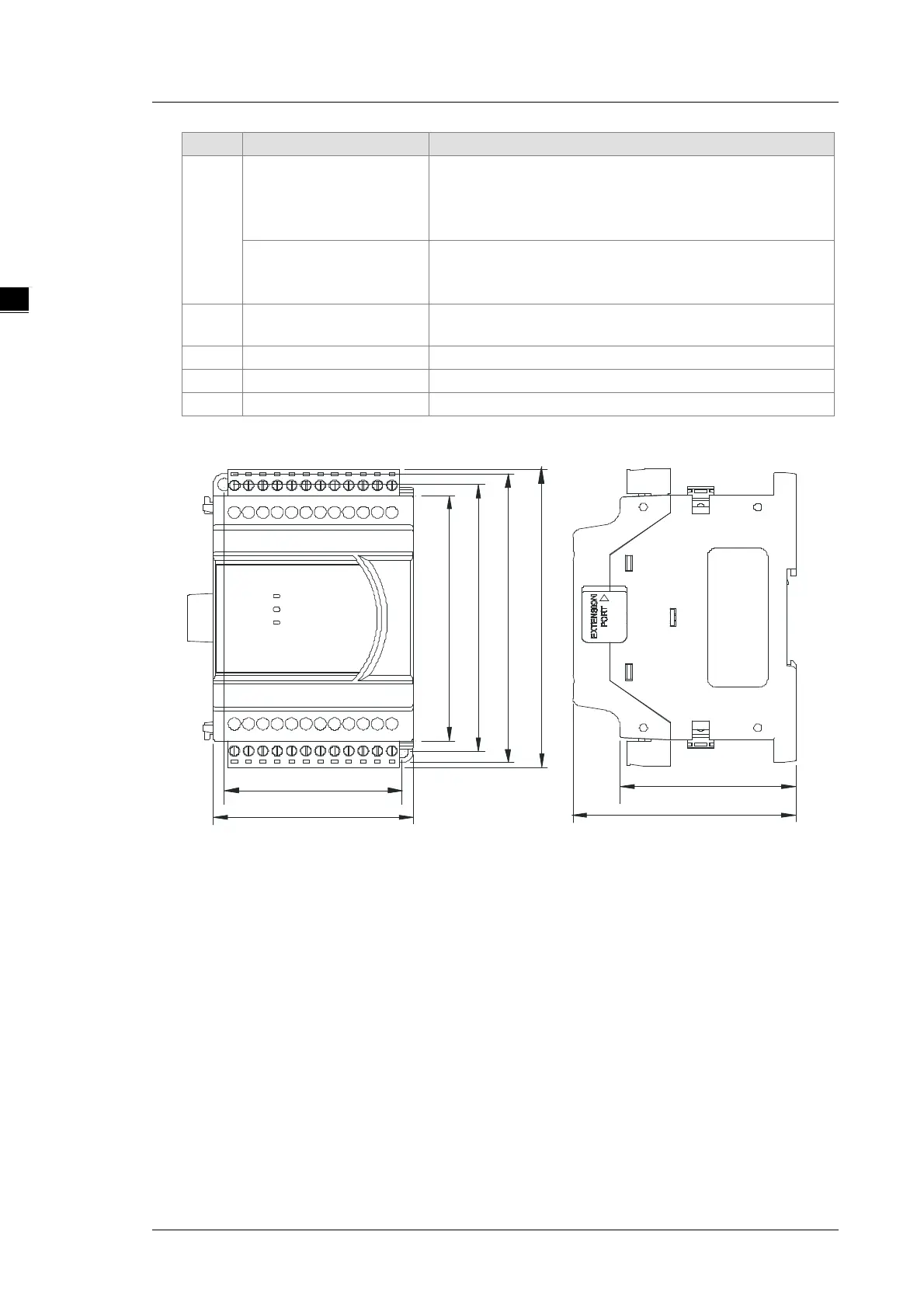

2.5.3 Temperature Measurement Module Dimensions
70
62
106
98
78
90
61.5
110
Unit: mm
