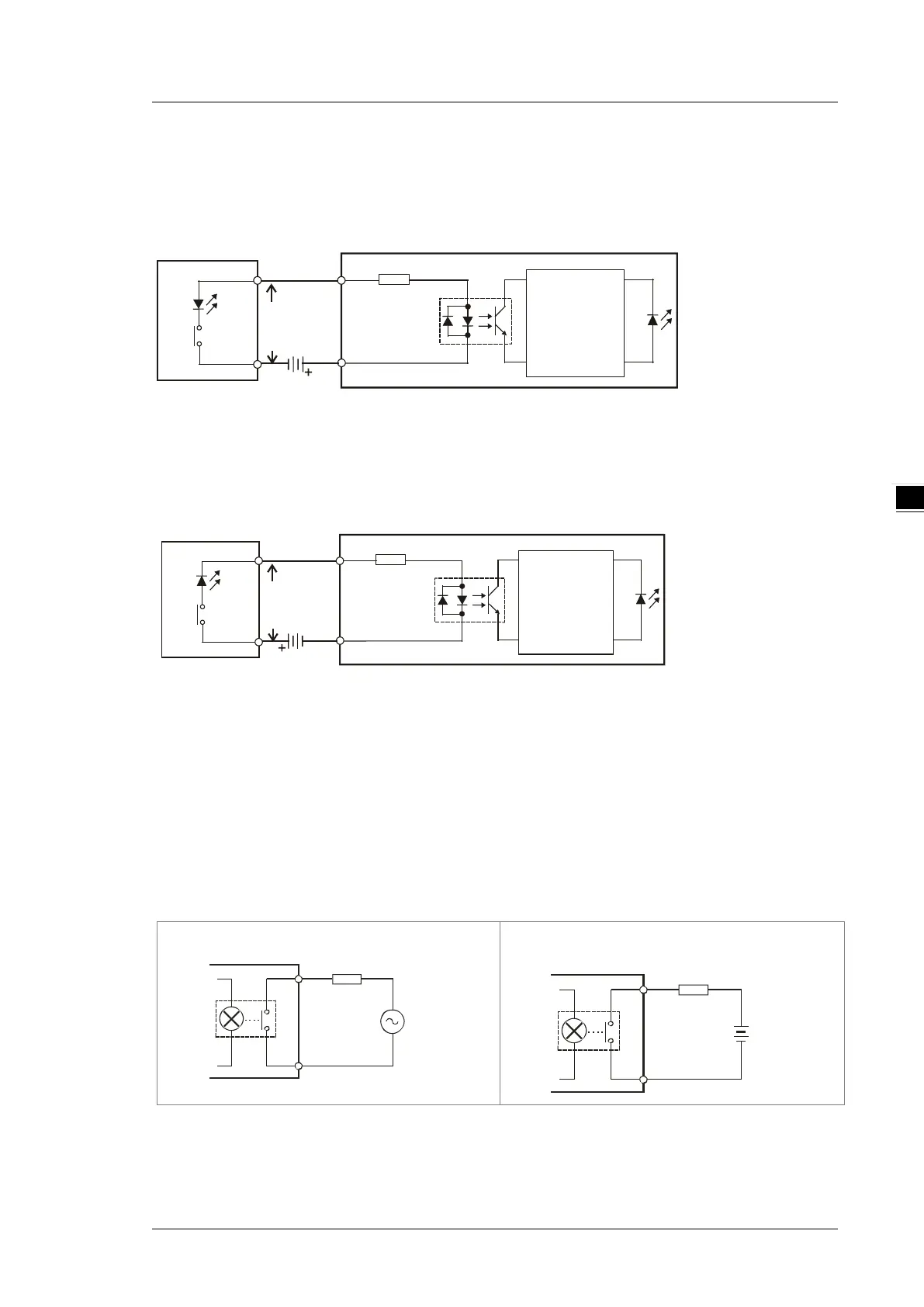

4.6.1.6 Optoelectronic Switch
 Sinking
Above
15 V DC
Optoelectronic switch
Internal
circuit
S/S
X0.0
I/O
24VDC
 Souring
Above
15 V DC
Optoelectronic switch
Internal
circuit
S/S
X0.0
I/O
24VDC
4.6.2 Wiring Digital Output Terminals
4.6.2.1 Output Circuits
There are two types of output units. They are relay outputs and transistor outputs.
1. Relay output
250VAC
2A
I/O Relay
Y0.0
C0
I/O Relay
Y0.0
C0
30VDC
2A
