4.7.9 Wiring DVP16XP211R
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Output type
Relay
Voltage specifications
250 VAC, below 30 VDC, 2A/output, 5A/COM

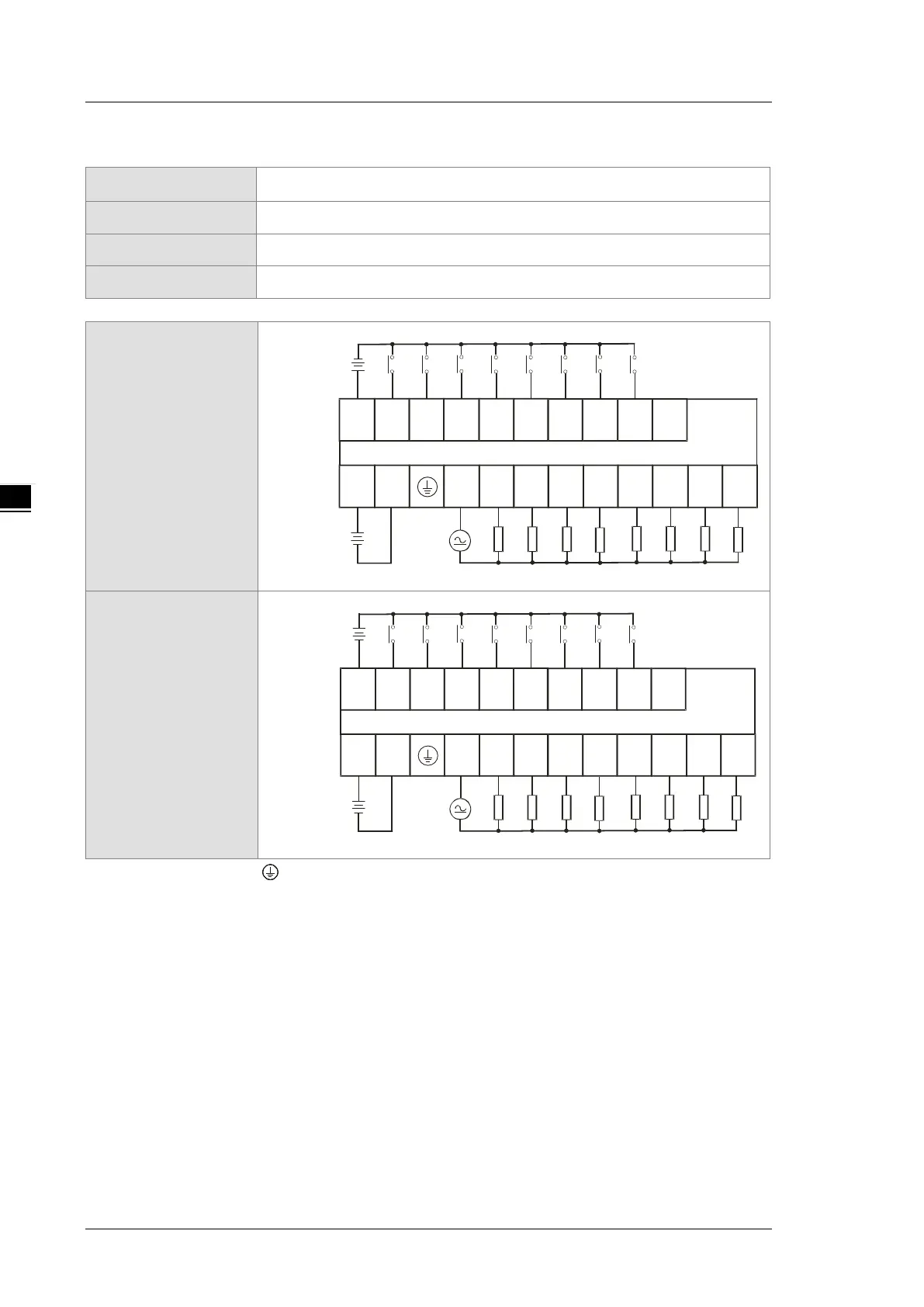

Sinking input and relay
output
OUT
C0 Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP16XP211R ( 8 DI/8DO)
24V 0V
S/S X0 X1 X2 X3 X4 NCX5 X6 X7
IN
Sourc
ing input and relay
output
OUT
C0 Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP16XP211R ( 8 DI/8DO)
24V 0V
S/S X0 X1 X2 X3 X4 NCX5 X6 X7
IN
Note: Connect the terminal to ground.
