Delta DVP-ES3 Series User Manual

Chapter 4 Installing Hardware
4-33
4_

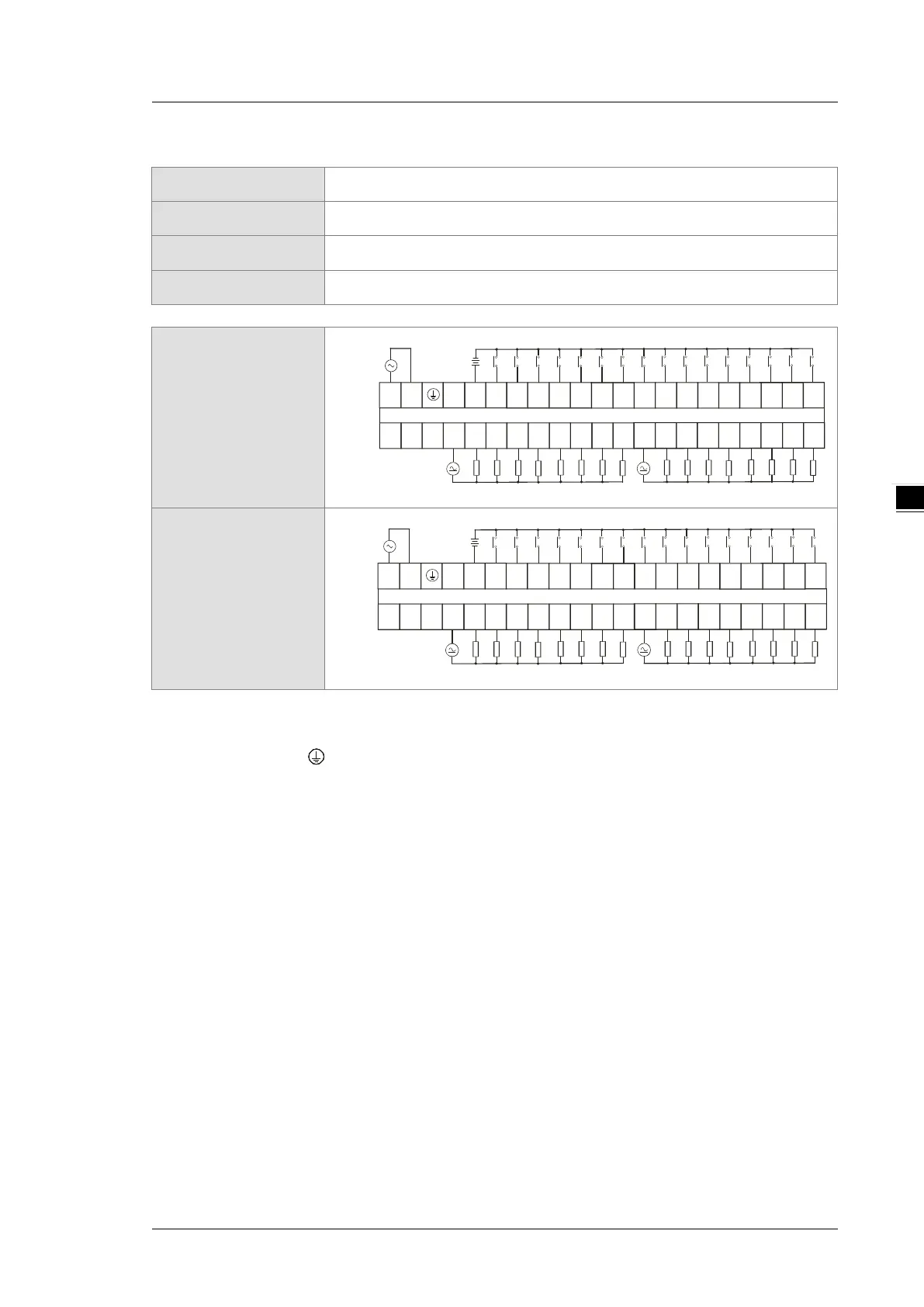

4.7.15 Wiring DVP32XP200R
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Output type
Relay
Voltage specifications
250 VAC, below 30 VDC, 2A/output, 5A/COM
Sinking input and relay
output
OUT
C0
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP32XP200R ( 1 6DI/16DO)
+24V 24G
S/S
X0
X1 X2
X3
X4
X5 X6 X7
IN
NCL N
NC
X10
X11 X12
X13
X14
X15 X16
X17
C1 Y10 Y11 Y12 Y13 Y14 Y15 Y16 Y17
Sourc
ing input and relay
output
OUT
C0
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP32XP200R ( 1 6DI/16DO)
+24V 24G
S/S
X0
X1 X2
X3
X4
X5 X6 X7
IN
NC
L N
NC
X10
X11 X12
X13
X14
X15 X16
X17
C1 Y10 Y11 Y12 Y13 Y14 Y15 Y16 Y17
Note:
1. The module is built-in with a +24 V power supply for I/Os to use.
2. Connect the terminal to ground.
