50
E
Beam setting (fig. 39.1)
When checking the beam setting, put the motorcycle
upright. Tyres should be inflated at the correct pressure
and one person should be sitting astride the motorcycle,
keeping it at right angles to its longitudinal axis. Place the
motorcycle opposite a wall or a screen, 10 meters apart
from it, then draw a horizontal line dictated by headlamp
center and a vertical one in line with the longitudinal axis
of motorcycle.
If possible, perform this check in dim light.
Switch on the low beam. The height of the light spot
(measured at the upper limit between dark and lighted-up
area) should not exceed 9/10th of the height from ground
of headlamp center.
Note
The procedure described here is in compliance with
the “Italian Standard” establishing the maximum height
of the light beam. Owners in other countries will adapt
said procedure to the provisions in force in their
countries.
The height of the light beam can be corrected using the
adjusting screw (1, fig. 39.2) on the beam front. Turn the
screw clockwise to lower the beam, turn anticlockwise
to lift.
fig. 38.2

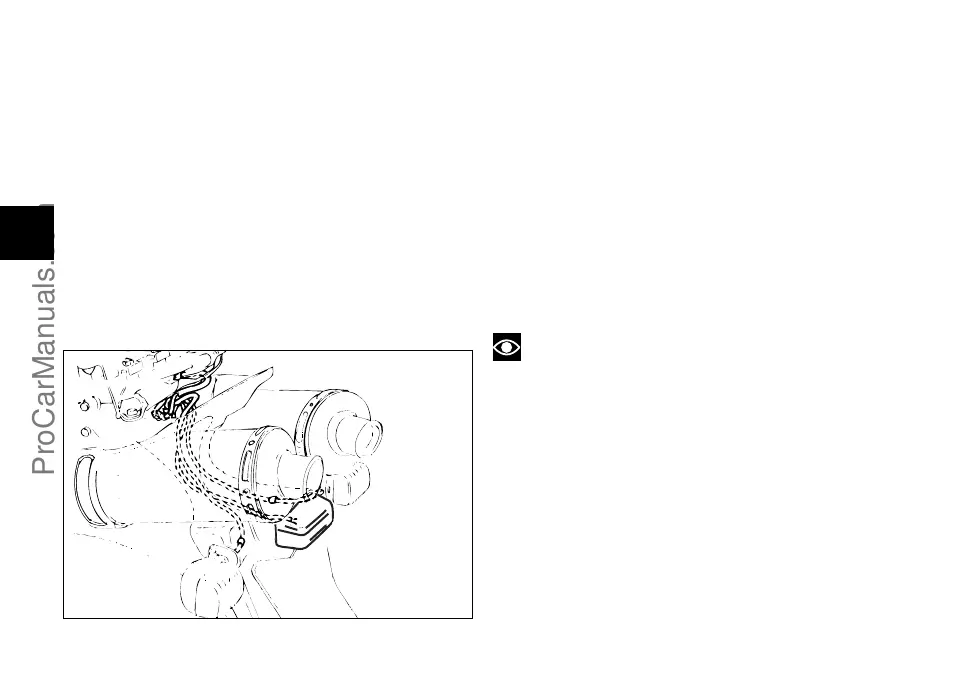

Number plate light (fig. 38.2)
To expose the number plate light bulb, withdraw the
lamp holder from the number plate holder, then extract
the bulb and replace it.
