Ducati 998 User Manual

18
E

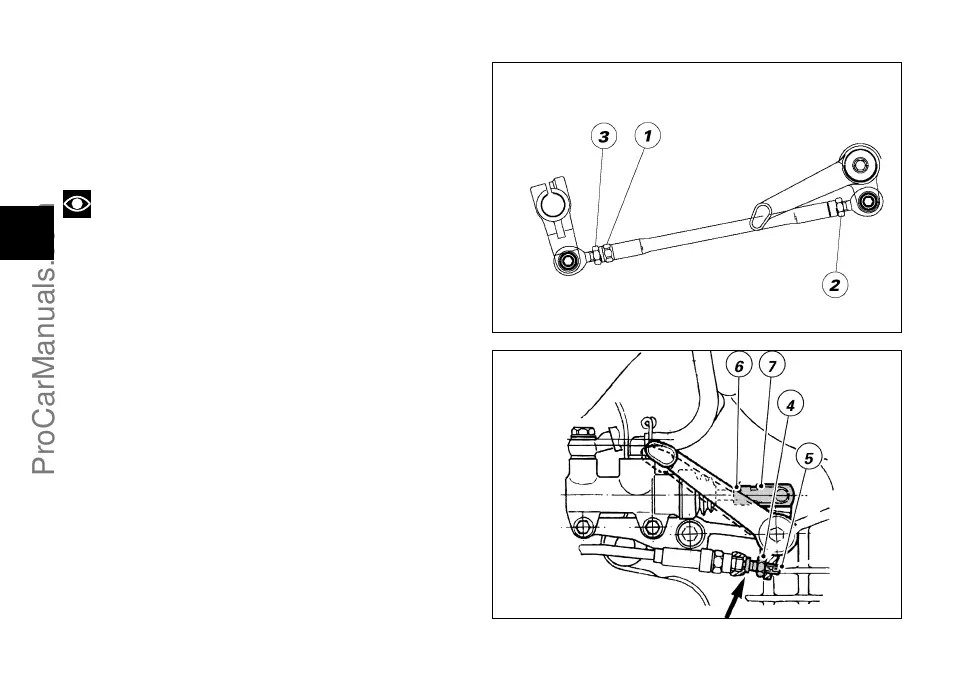

fig. 11.2
fig. 11.3
Setting the gear change and rear brake pedals
(fig. 11.2 and 11.3)
The gear change and rear brake pedals can be adjusted
to suit the preferred riding position of each rider.
To set the gear change pedal, lock linkage (1) and loosen
the check nuts (2) and (3).
Note
Nut (2) has a left-hand thread.
Fit an open-end wrench to the hexagon portion of linkage
(1). Rotate linkage until setting pedal in the desired
position.
Tighten both check nuts onto linkage.
To set the rear brake pedal,
loosen check nut (4).
Turn pedal travel adjusting screw (5) until pedal is in the
desired position.
Tighten check nut (4).
Work pedal by hand to make sure it has 1.5 - 2 mm free
play before brake begins to bite.
If not so, set the length of cylinder linkage as follows.
Loosen the check nut (6) on cylinder linkage.
Tighten linkage into fork (7) to increase play, or unscrew
linkage to reduce it.
Tighten check nut (6) and check pedal free play again.
ProCarManuals.com

Ducati 998 Specifications

General

Displacement	998 cc
Bore x Stroke	100 x 63.5 mm
Compression Ratio	11.4:1
Transmission	6-speed
Frame	Tubular steel trellis
Front Brakes	2 x 320 mm discs, 4-piston calipers
Seat Height	790 mm (31.1 in)
Engine Type	L-twin, 4-valve per cylinder, Desmodromic
Power	123 hp @ 9, 750 rpm
Front Suspension	Showa 43mm upside-down fork
Rear Suspension	Showa monoshock
Rear Brakes	220 mm disc, 2-piston caliper
Fuel Capacity	17 liters
