Ducati 998 User Manual

10
E
CONTROLS
Warning
This section details the position and function of all
the controls you need to drive your motorcycle. Be sure
to read this information carefully before you use the
controls.

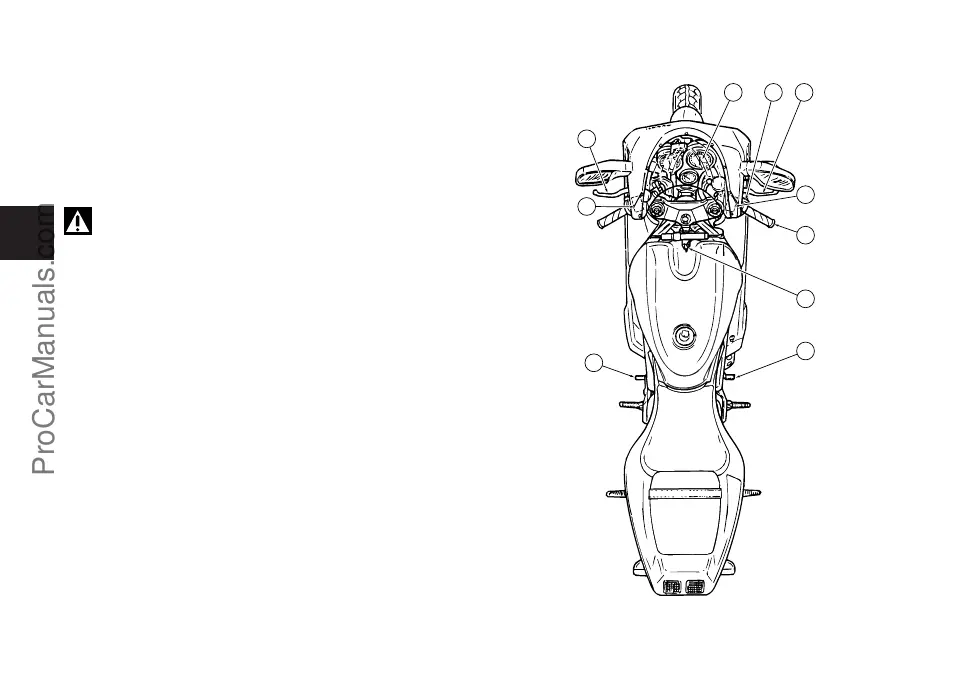

Position of motorcycle controls (fig. 2)
1) Instrument panel.
2) Key-operated ignition switch and steering lock.
3) Left switch.
4) Clutch lever.
5) Cold start button.
6) Right switch.
7) Throttle twistgrip.
8) Front brake lever.
9) Gear change pedal.
10) Rear brake pedal.
fig. 2
9
3
4
1 5 8
6
7
2
10
ProCarManuals.com

Ducati 998 Specifications

General

Displacement	998 cc
Bore x Stroke	100 x 63.5 mm
Compression Ratio	11.4:1
Transmission	6-speed
Frame	Tubular steel trellis
Front Brakes	2 x 320 mm discs, 4-piston calipers
Seat Height	790 mm (31.1 in)
Engine Type	L-twin, 4-valve per cylinder, Desmodromic
Power	123 hp @ 9, 750 rpm
Front Suspension	Showa 43mm upside-down fork
Rear Suspension	Showa monoshock
Rear Brakes	220 mm disc, 2-piston caliper
Fuel Capacity	17 liters
