Patient Monitor User Manual Basic Operation
- 18 -
iM80/M80
1

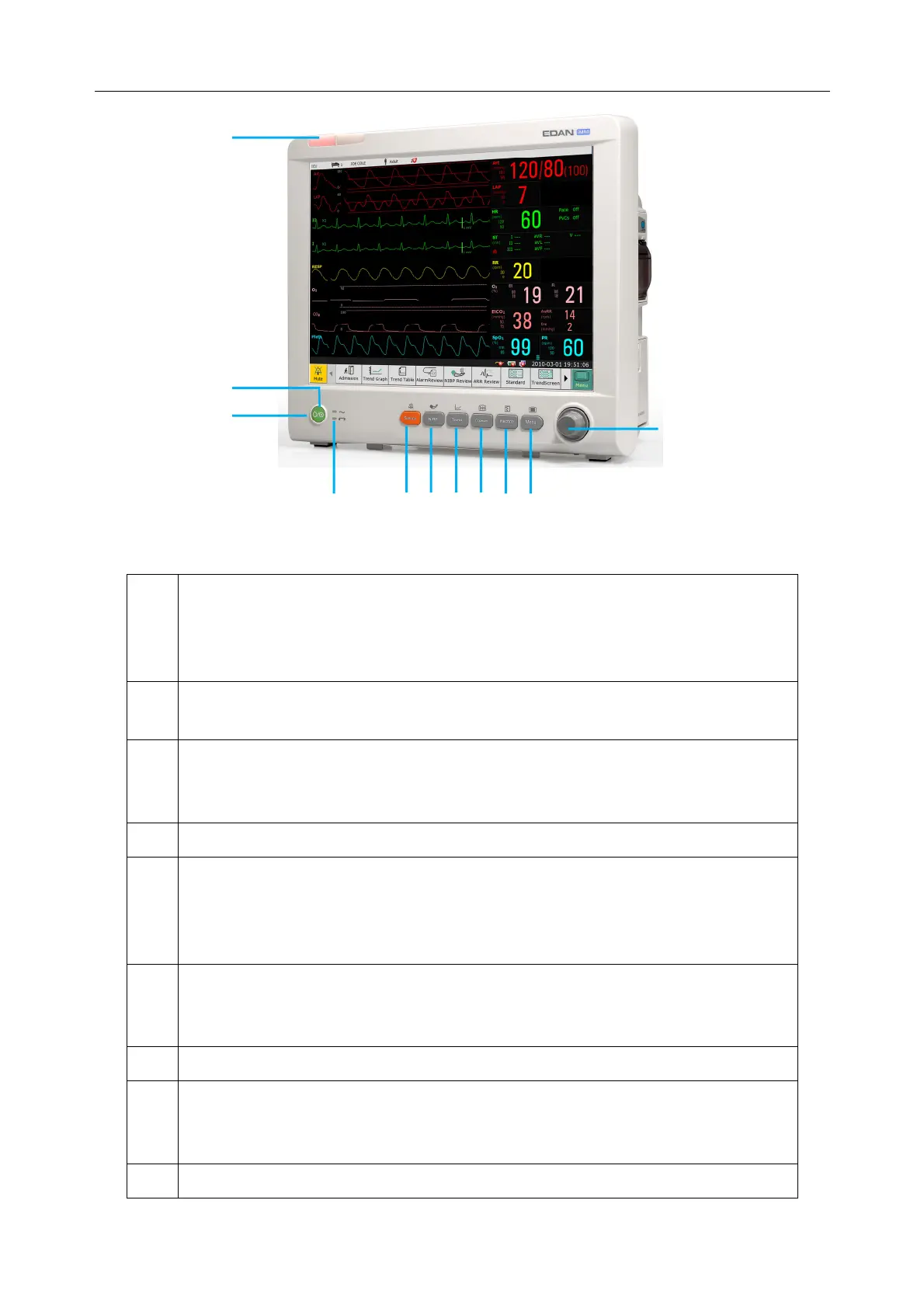

Alarm indicator — when an alarm occurs, the alarm indicator will light or flash.
The color of light represents the alarm level. High level alarm: flashes red;
Medium level alarm: flashes yellow; Low level alarm: constantly yellow for
physiological alarm and constantly blue for technical alarm.
2
Alternating current indicator— On: AC power is connected; Off: AC power is
not connected.
3
Power supply switch — Press it to turn the monitor on when the monitor is
connected to the AC power supply, or press the key to turn the monitor off when
the monitor is on.
4 Battery indicator, refer to Section Battery Power Indicator for details.
5
Mute — Press it to suspend the output of all audible alarm signals. Upon the
configuration, pressing this button to pause or turn off the audio alarm. Further
information can be found in the section Audio Alarm Paused and section Audio
Alarm Off.
6
Start/Stop NIBP measurement — Press this button to inflate the cuff and start
blood pressure measurement. During the measurement, press the button to stop
the measurement.
7 Trend Key — Press this button to enter trend table review interface.
8
Freeze/Unfreeze — In normal mode, press this button to freeze all the
waveforms on the screen. In Freeze mode, press this button to restore the
waveform refreshing.
9 Start/Stop Recording — Press this button to start a real-time recording. During
4
2
3
1
5
678
9
10
11
