5.4.1 Connect the voltage input wiring

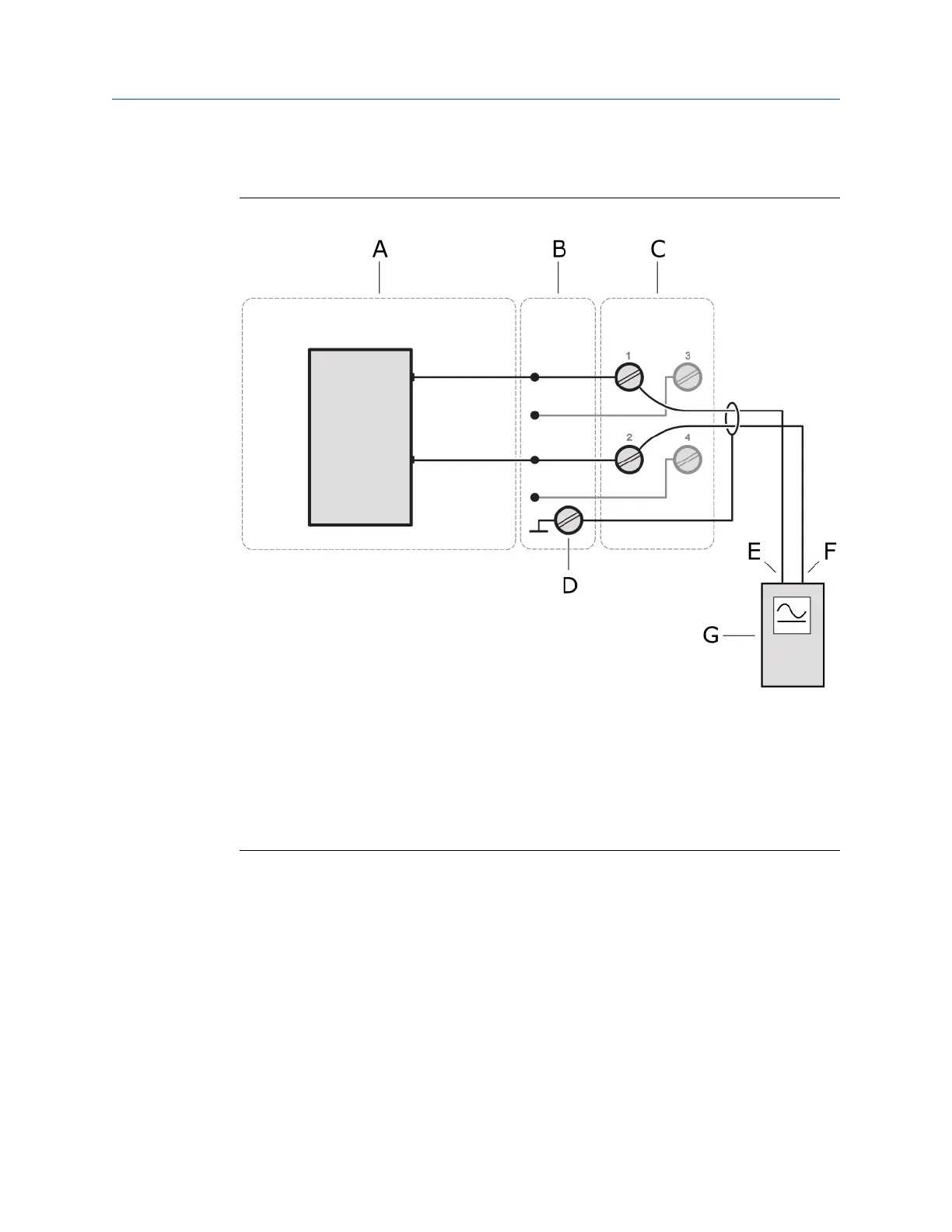

Figure 5-11: Signal connection
A. VI Voltage CHARM
B. CHARM Baseplate
C. Standard CHARM Terminal Block
D. Cable shield connection
E. Signal
F. Return
G. Voltage signal source
Prerequisites
• Wire cutter
• Tool for removing the cable sheath
• Wire stripper
• Suitable screw driver for the CHARM Terminal Block screws
• Shielded sensor cable
• Observe the hints in Wiring guidelines
Installation Guide Installing CHARMs hardware
MHM-97923-PBF March 2024
MHM-97923-PBF, Rev. 2.10 53
