Emerson Bettis XTE3000 User Manual

October 2019
Installation, Operation and Maintenance Manual
MAN-02-04-97-0713-EN Rev. 1
140
Appendix
Appendix
C.7.2 Identication of Entries
The XTE3000 electric actuator is equipped with 5 entries (3 are standard; the 4th and 5th
are supplied upon request).
With reference to Figure C-2, the thread form/size for each entry is as follows:
Table C-4.
Entry NPT size Alternative (Metric size ISO 965)
1 1" M32x1.5
2 1 1/2" M40x1.5
3 1" M32x1.5
4 (optional) 3/4" M25x1.5
5 (optional) 3/4" M25x1.5

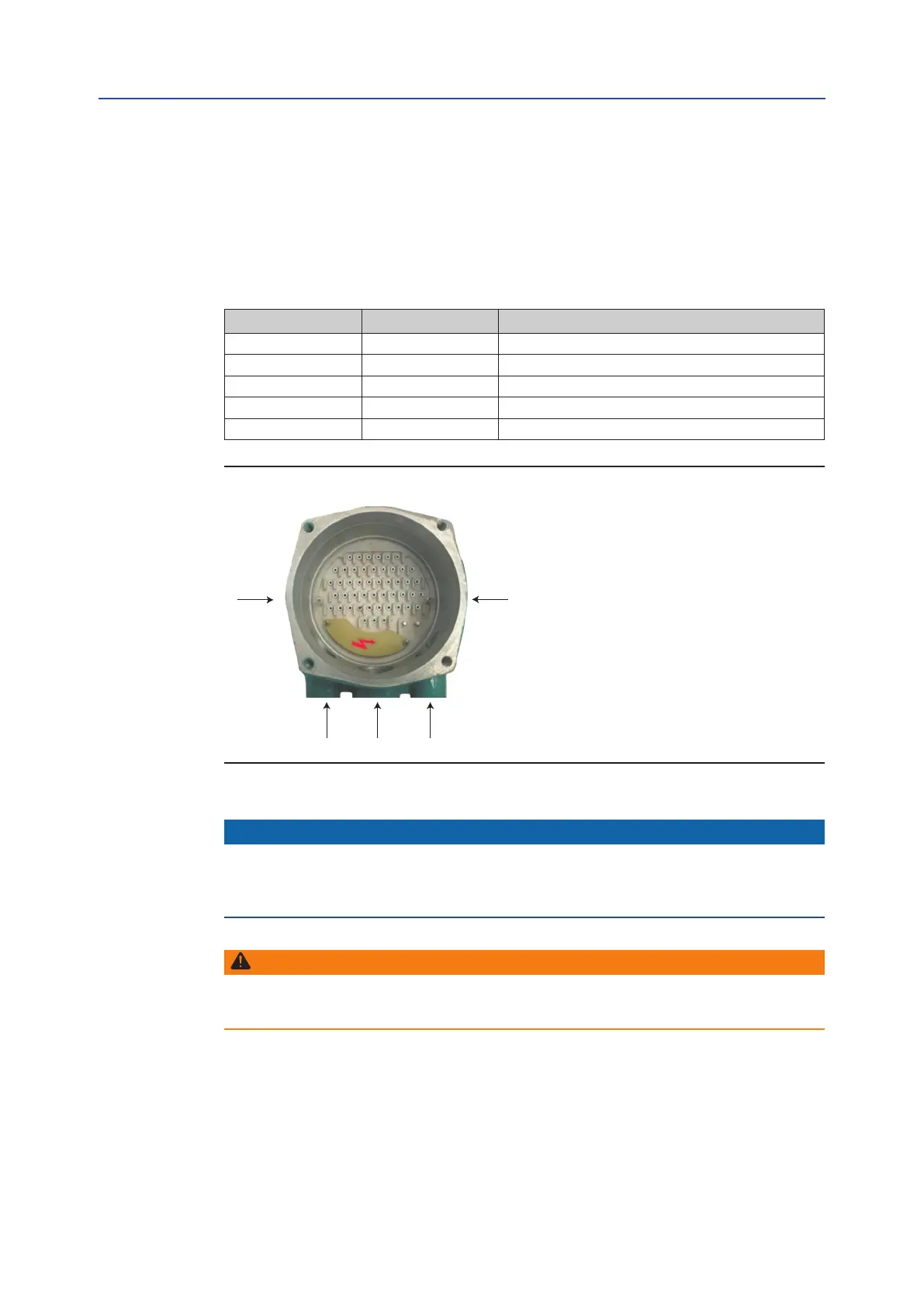

Figure C-2 Base Actuator
6
4
1 2 3
5
XTE3000
NOTICE
When alternative entries according to ISO 965 are used, indication of the dimensions is
imprinted on the adapter bush or directly on the housing when ISO 965 entries are
obtained by machining the housing.
WARNING
Unused entries may remain unmachined or must be plugged with a certied plug suitable
for the subject environment.
