E.7.1 Working Condition
WARNING
Verify that the actuator nameplate conforms to the applicable certication, ambient
temperature range, and site safety requirements.
E.7.1.1 Models and Temperature
XTE3000-010, XTE-020, XTE-030, XTE-040, XTE-050 from -25 °C to +60 °C
(from -13 °F to +140 °F)
E.7.2 Identication of Entries
E.7.2.1 Base Actuator
The XTE3000 electric actuator is equipped with 5 entries (3 are standard; the 4th and 5th
are supplied upon request).
With reference to Figure E-5, the thread form/size for each entry is as follows:
Table E-4.
Entry NPT size Alternative (Metric size ISO 965)
1 1" M32x1.5
2 1 1/2" M40x1.5
3 1" M32x1.5
4 (optional) 3/4" M25x1.5
5 (optional) 3/4" M25x1.5

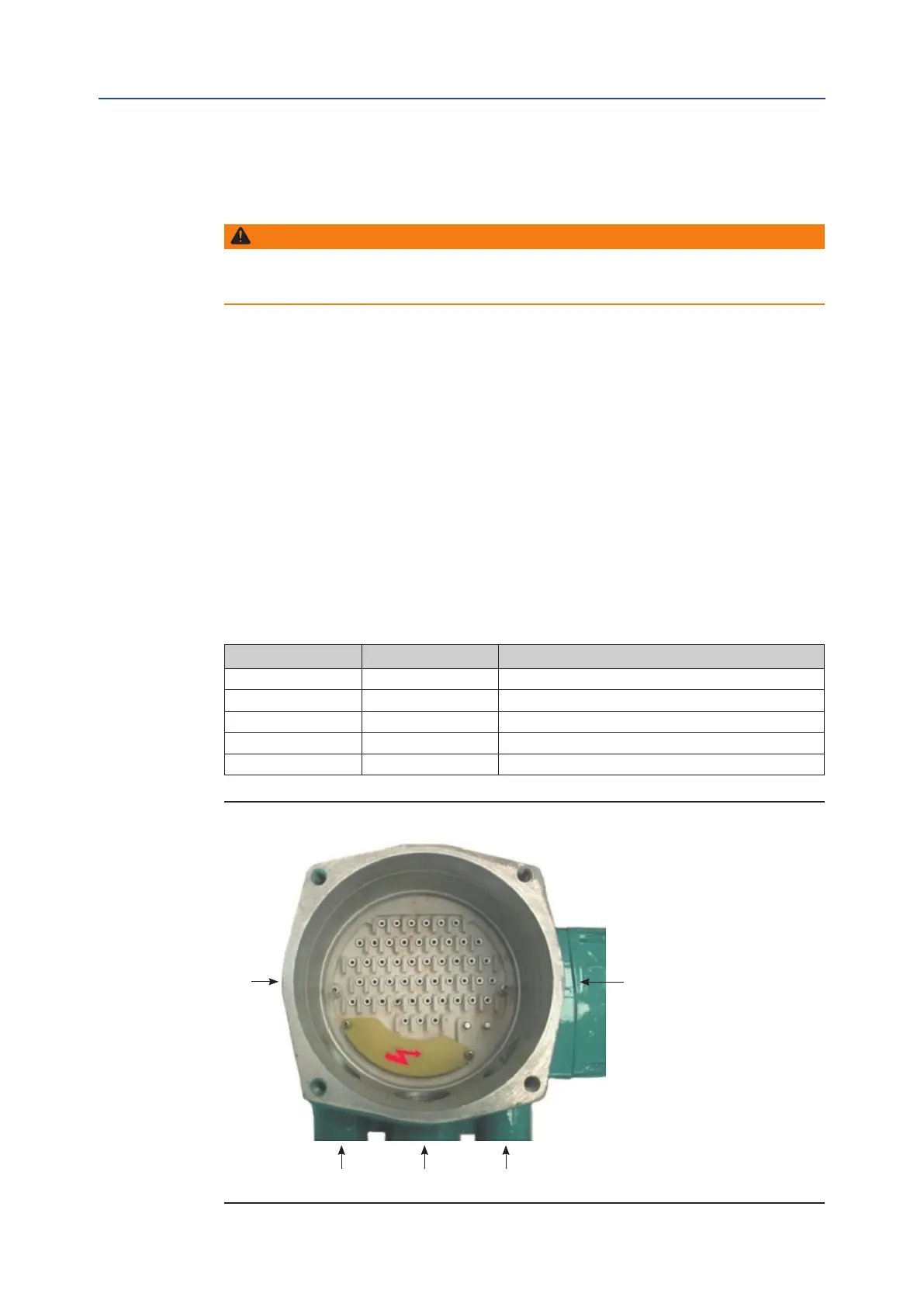

Figure E-5 Base Actuator
4
1 2 3
5
