Installation
Section 3: Installation

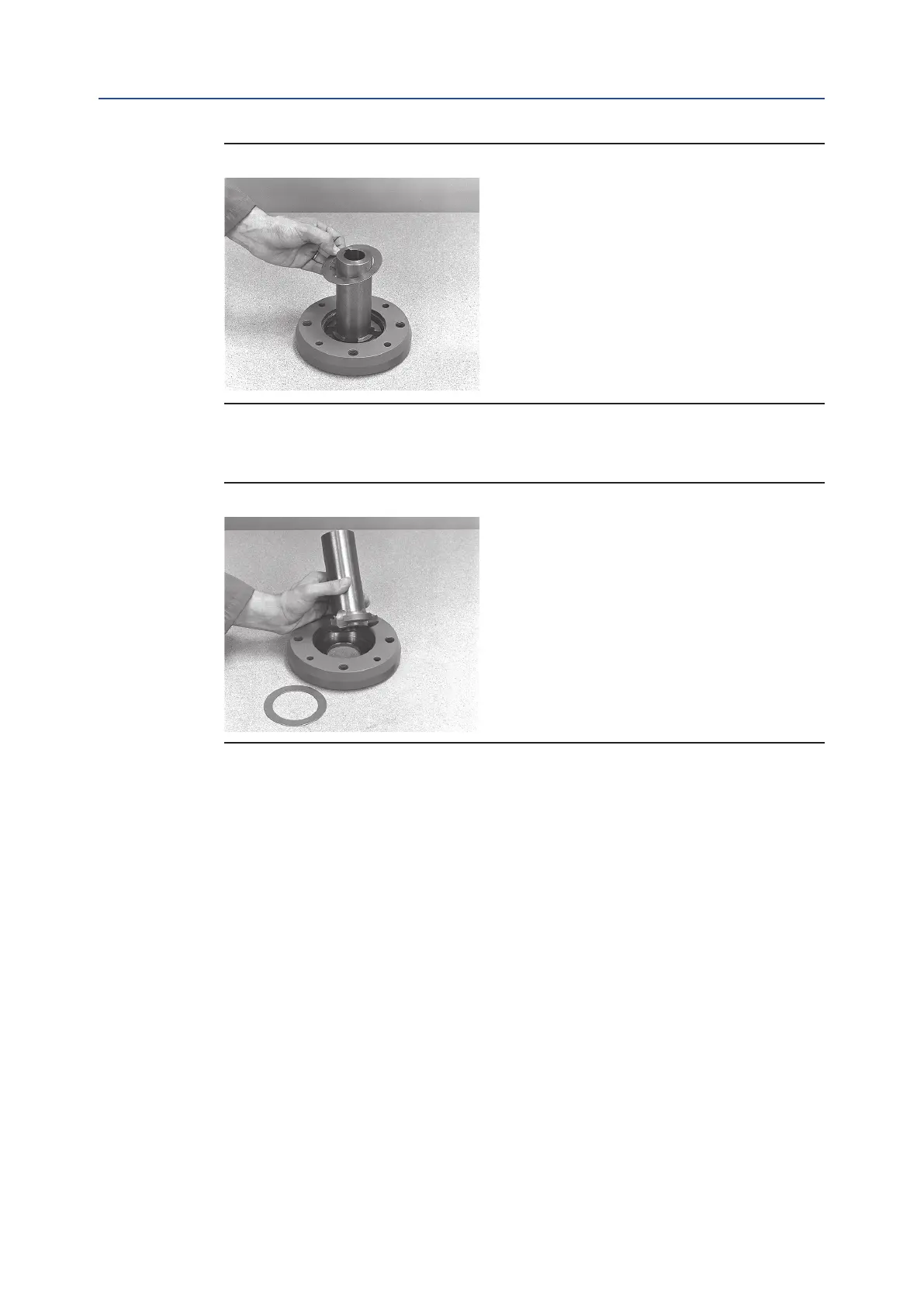

Figure 14
Extract the bushing and machine it according to the mating needs.
Figure 15
3.2.3.2 Re-assembling the Internal Parts
It is advisable to wash the dismantled parts with a suitable solvent and dry them with
compressed air. Make sure that no metal lings or foreign bodies remain; spread a lm of
grease on all parts (for grease type see Section 4, Lubrication).
Proceed with the assembly of the internal parts by following the disassembly procedure in
reverse order. Attach the unit to the gear reducer as described further on.
3.2.4 Attaching the Coupling Block to the Gear Reduction Unit
Check the integrity of the O-ring seal and place it in its slot on the coupling block.
Ensure that the lugs of the drive sleeve t in the correct slots on the bushing.
Attach the screws previously removed.
