Emerson Bettis XTE3000 User Manual

October 2019
Installation, Operation and Maintenance Manual
MAN-02-04-97-0713-EN Rev. 1
64
Section 9: Set-Up Routines
Set-Up Routines
9.1.9 OUT 4-20 mA
This routine is only available if the Ain/Aout card is present. With this card, the XTE3000 is
provided with a 4-20 mA analog input and a 4-20 mA analog output.
The 4-20 mA output can be congured to provide a current proportional to either “position”
or “torque”. The polarity option allows reversal of the relationship between the present
position or torque and the 4-20 mA output signal, according to the following diagrams:

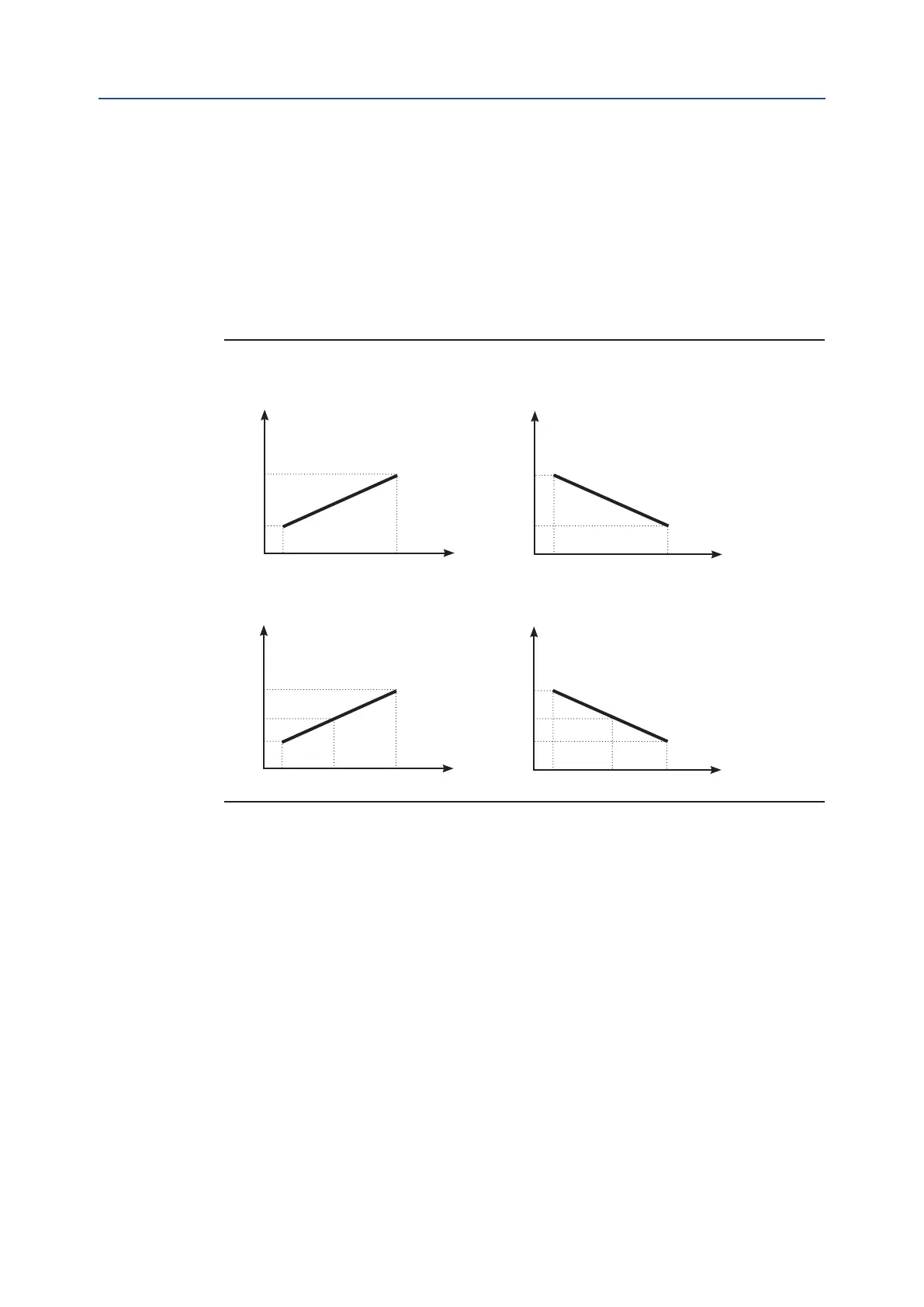

Figure 62 Diagram
20
mA
4 mA
0% 100% 0% 100%
20
mA
4 mA
20
mA
12
mA
12
mA
4 mA
20
mA
4 mA
Output: position
Polarity: 4 mA = CL
Output mA
Position %
Output: position
Polarity: 4 mA = OP
Output mA
Position %
Output: torque
Polarity: 4 mA = CL
Output: torque
Polarity: 4 mA = OP
Output mA
Output mA
Torque % Torque %
100% CL 0% 100% OP
100% CL 0% 100% OP
Configuration procedure
• Move the local selector to OFF and then simultaneously press OPEN and STOP.
Select the language and then enter the password according to the instructions (see
“entering the set-up mode”). When the message of the display is “SET-UP MODE
OK?” press YES. Press YES to select the "Actuator Setup" menu, press NO to scroll
through the list of available routines, and then press YES to select "Out 4-20mA".
• Press YES if the output is correct (POSITION or TORQUE). If not, press NO to
change it and then press YES.
• Press YES if the polarity is correct. If not, press NO to change it and then press YES.
