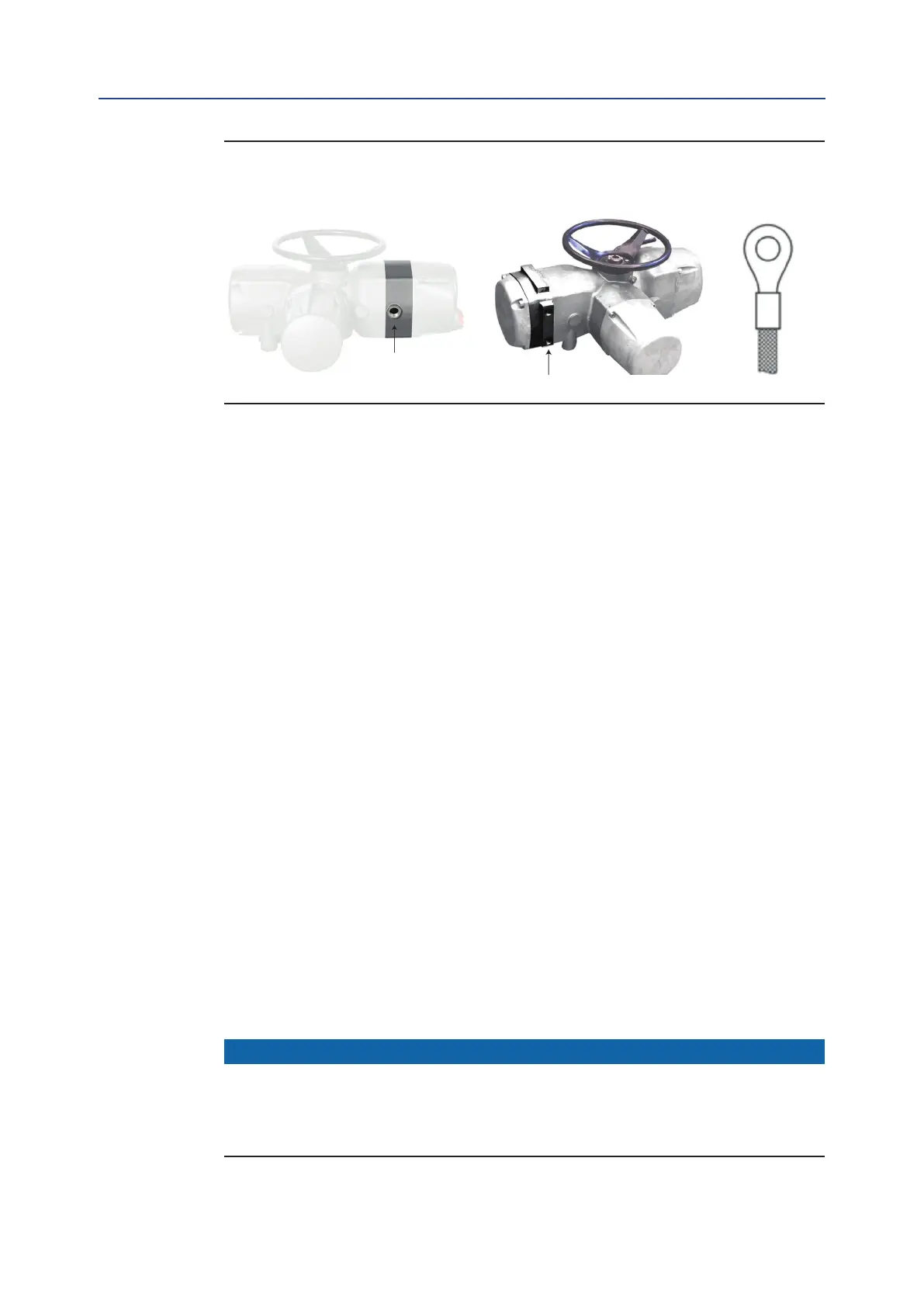

Figure E-6
Base actuator with extension [A]
on the control compartment
Entry 6
Entries from A to K
Base actuator with extensions [B] or [C]
on the terminal board compartment
Connection for Ex-e
terminals enclosure
E.7.3 Electrical Connections
External wires or connections of external ATEX-certied apparatus via the conduit entry of
an additional extension must be wired to the internal cards of the XTE3000, in accordance
with the wiring diagram and general instructions on the actuator label.
E.7.3.1 Connection for Ex-e Terminals Enclosure
The wires must be terminated in accordance with the following method:
Type of terminal: Insulated ring tongue
Eye dimensions: 5.5 mm (0.22 in) for power cable
3.2 mm (0.13 in) for control cables
Recommended tightening torques: 2.0 - 2.8 Nm (17.7 - 24.8 lb.in) for power cables
1.0 - 1.5 Nm (8.9 - 13.3 lb.in) for control cables
Wires section: 4 mm² (0.006 in²) for power cables
2.5 mm² (0.004 in²) for control cables
E.7.4 Cable Connection
When optional extensions for additional entries or additional electronic cards are
connected to external cables or conduits, the sealing of these entries must be carried
out in accordance with the national standards or regulatory authorities that certied
the extension(s). The method of sealing and cable glands used must be approved and
separately certied for use in hazardous areas.
Two earth connection points - one internal and one external - are located on the XTE3000
base model (see Figure E-7) for connection to ground cables.
NOTICE
To prevent water inltration through the line cable conduits, ensure that the cable glands used
possess the minimum degree of protection required by the plant and are specied on the
actuator label. If a rigid conduit makes a connection to the plant, it is recommended to place a
exible pipe connection between the conduit and the conduit entry of the additional extension.
