Emerson Bettis XTE3000 User Manual

Installation, Operation and Maintenance Manual
MAN-02-04-97-0713-EN Rev. 1 October 2019
75
Section 9: Set-Up Routines
Set-Up Routines
9.4 Example of Set-Up Routine
9.4.1 Torque Set-Up

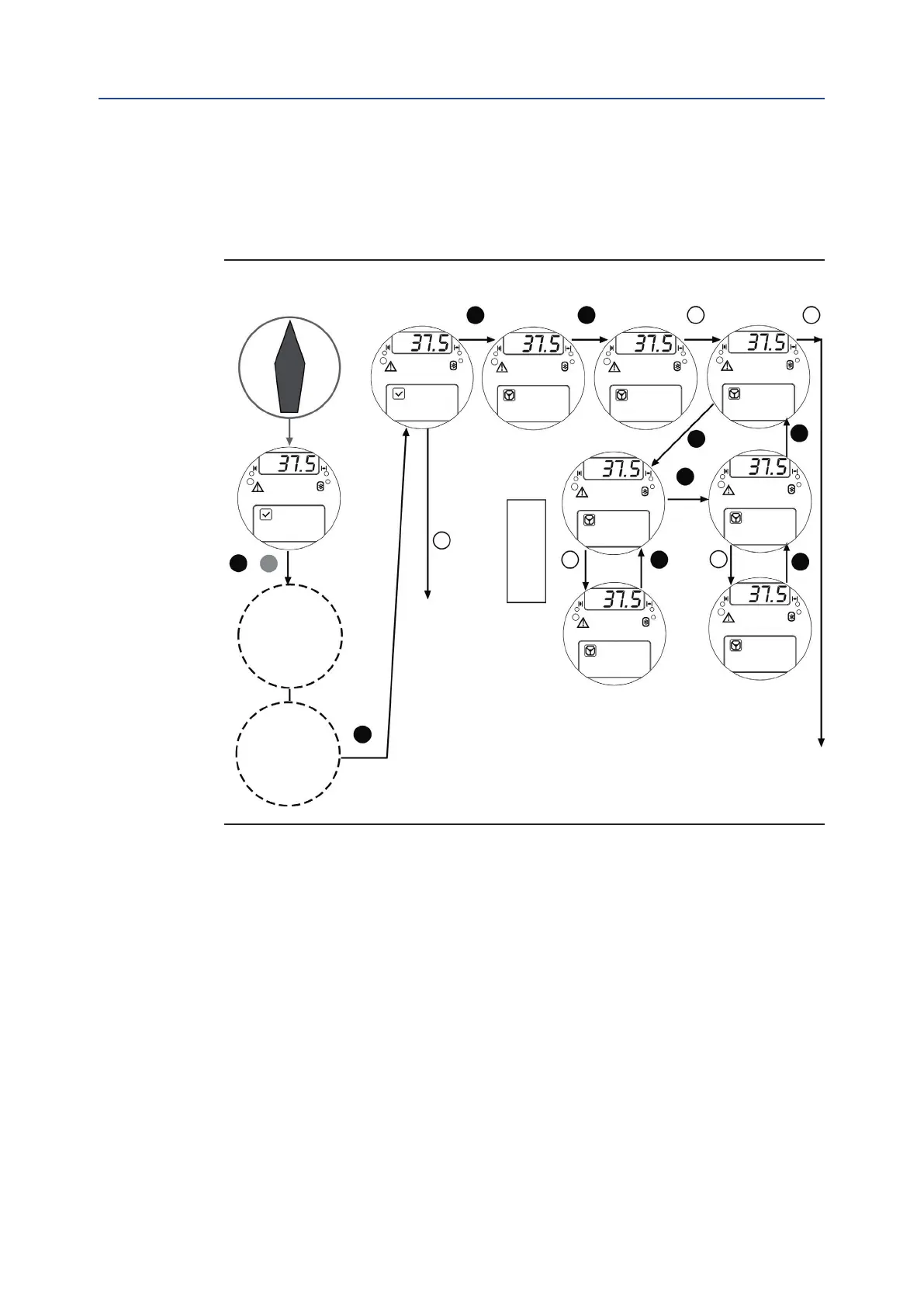

Figure 66
XTE3000
XTE3000
XTE3000
XTE3000
XTE3000
XTE3000
XTE3000
XTE3000
XTE3000
SELECT
LANGUAGE
ENTER
PASSWORD
SETUP MODE
OK?
ACTUATOR SETUP
ACTUATOR SETUP
ACTUATOR SETUP
ACTUATOR SETUP
ACTUATOR SETUP
ACTUATOR SETUP
ACTUATOR SETUP
CHANGE?
STROKE LIMIT
CHANGE?
TORQUE SETUP
CHANGE?
CLOSING TORQUE
55% OK?
CLOSING TORQUE
70% OK?
OPENING TORQUE
60% OK?
OPENING TORQUE
65% OK?
YES
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
TO NEXT
TO VIEW
MENU
Press NO
until the
desired
value
appears
and then
press
YES
XXXXXX OFF
STOP NEXT?
Display
LOCAL
REMOTE
STOPYES
OFF
3-position
selector
To exit from the SETUP menu, press YES and NO simultaneously or move the 3-position
selector to LOCAL or REMOTE.
