Installation, Operation and Maintenance Manual
MAN-02-04-97-0713-EN Rev. 1
October 2019
51
Section 8: View Menu
View Menu
Section 8: View Menu

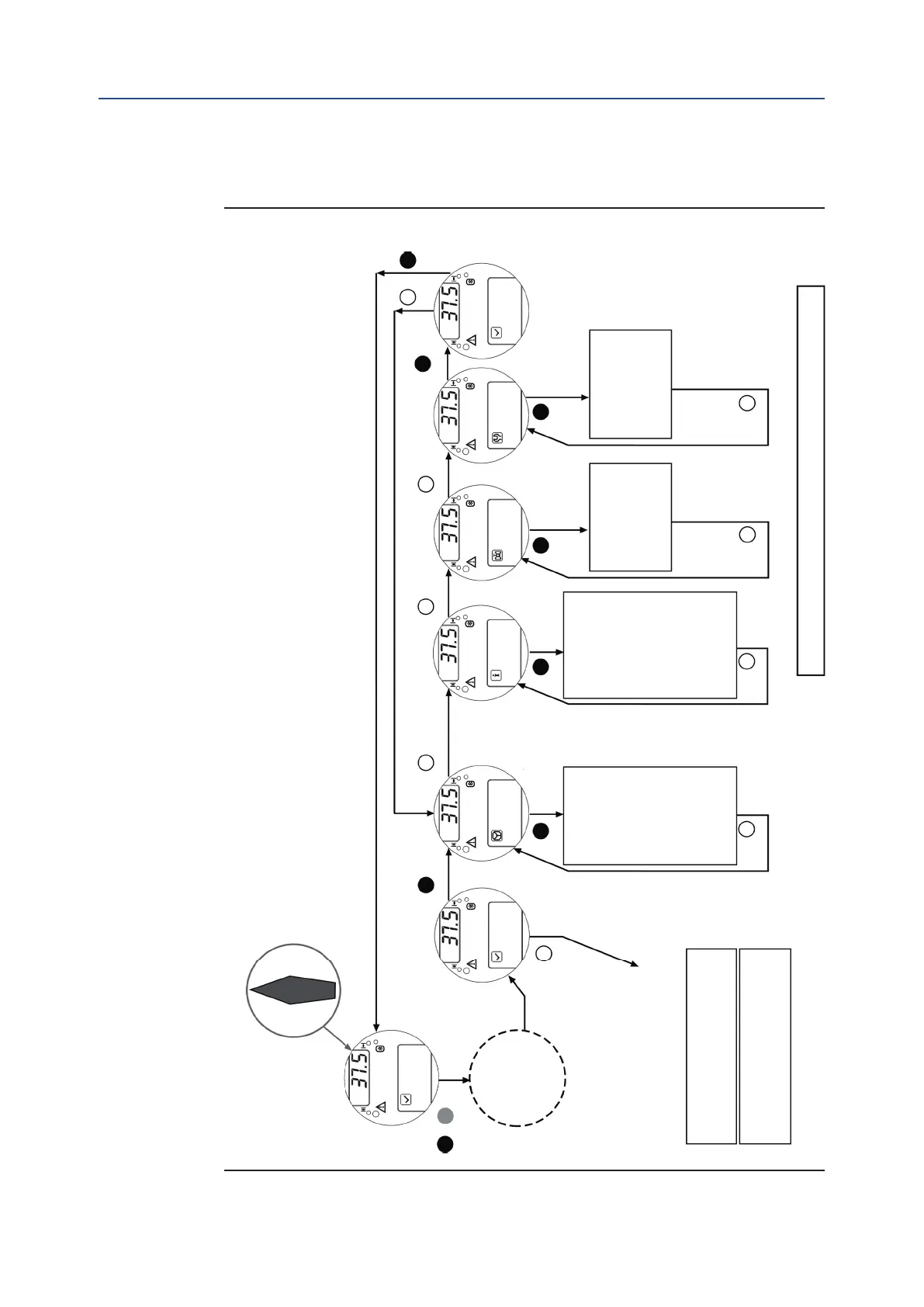

Figure 57 View Menu
XTE3000
XTE3000
XTE3000
XTE3000
XTE3000
XTE3000
XTE3000
To exit from VIEW menu press
YES and NO simultaneously
or move the 3-position selector to
LOCAL or REMOTE
Routines with * are only available if the
relevant modules are present.
TO SETUP
MENU
Press YES or NO to answer the appropriate prompts (OK?, view?, next?, etc.)
SELECT
LANGUAGE
Display
LOCAL REMOTE
YES
YES NO
NO NO
YES
YES
YESYESYES
NO
NO NO
NO NO
YES
NO
STOP
OFF
3-position selector
XXXXXX OFF
STOP NEXT?
VIEW MODE
OK?
ACTUATOR SETUP
VIEW?
NAME PLATE
VIEW?
VALVE DATA
VIEW?
MAINTENANCE
VIEW?
EXIT?
OK?
Routines:
- Stroke limits view?
- Torque set-up view?
- ESD set-up view?
- Remote controls view?
- Local controls view?
- Output relays view?
- Positioner * view?
- Fail Safe * view?
- Out 4-20mA * view?
- Interlock view?
- 2-speed timer view?
- Bus * view?
- Miscellaneous view?
Routines:
- Serial number view?
- Actuator type view?
- Torque / Thrust view?
- Actuator speed view?
- Power supply view?
- Motor data view?
- Test date view?
- Wiring diagram view?
- Enclosure view?
- Certicate view?
- Lubricant view?
- Revision view?
- Torque sensor view?
Routines:
- Tag name view?
- Serial number view?
- Manufacturer view?
- Break OP torque view?
- Break CL torque view?
- Max stem thrust view?
- Flange type view?
Routines:
- Alarm log view?
- Torque prole view?
- Torque curve view?
- Operation log view?
- Maintenance date view?
- Data logger view?
