Installation, Operation and Maintenance Manual
MAN-02-04-97-0713-EN Rev. 1
October 2019
157
Appendix
Appendix
E.2 Instructions for Proper Installation
WARNING
Before installation, it is mandatory to check if the nameplate associated with the
extension for additional entry species the appropriate degree of protection and ambient
temperature limits as requested by the rules applicable to the plant/location where the
XTE3000 is installed.
Installation in environments with the presence of an explosive atmosphere not covered by
the specied grade of protection, or in environments that could reach a temperature higher
than the maximum specied on the label, will invalidate the safety warnings and
the warranty.
NOTICE
Check if the label, as the example here above, is xed on the unit and completed with all
the appropriate information.
E.2.1 Marking

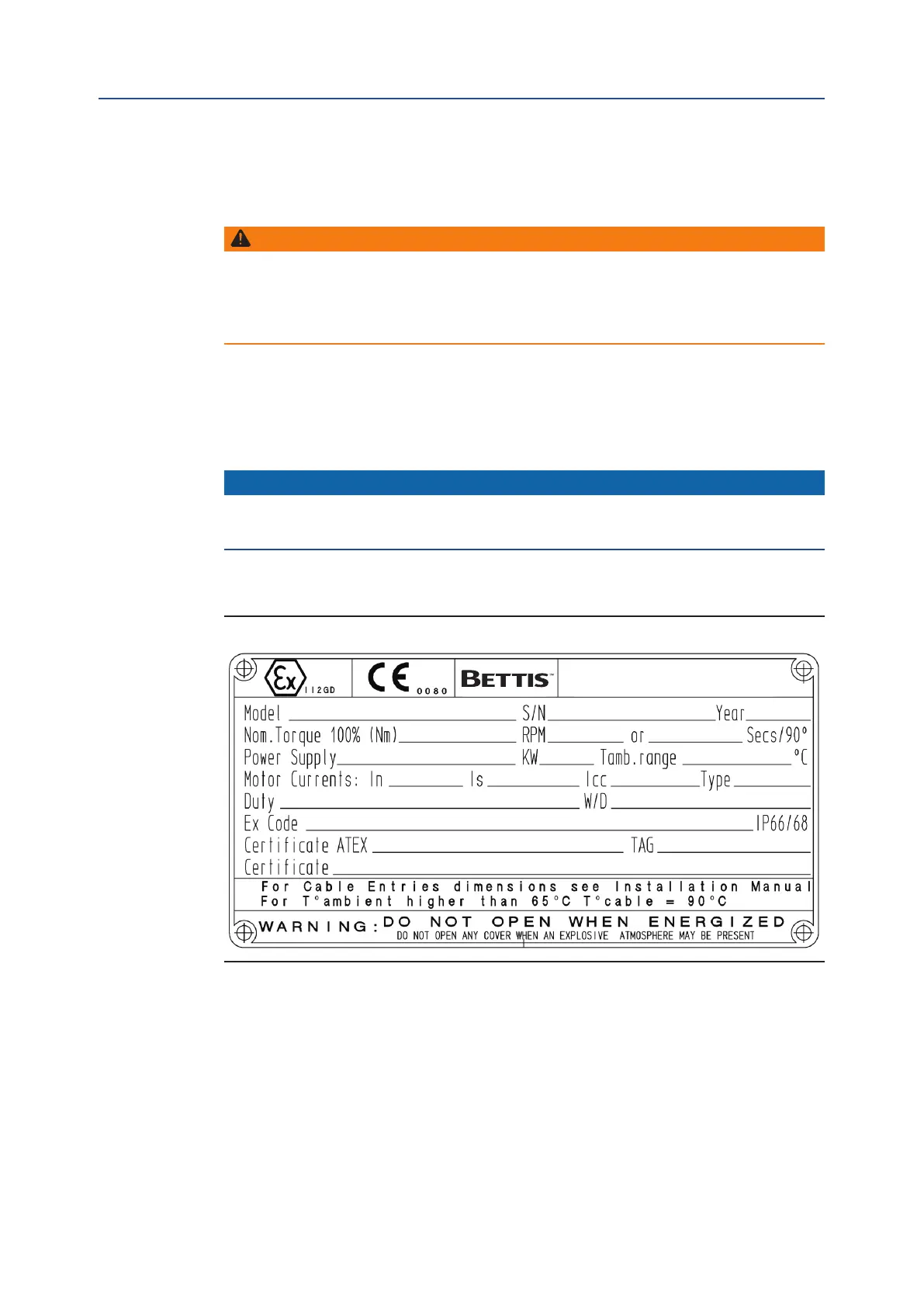

Figure E-4 Template of the label for XTE3000
IECEx INE YY.NNNNX = IECEx reference certicate (CoC)
INERIS YY ATEX NNNNX = ATEX reference certicate
0080 = Notied body for ATEX quality assurance (INERIS)
II = Group II (surface industries)
2 = Category 2 apparatus
G = Explosive atmospheres caused by gas, mists, or vapors
D = Explosive atmospheres caused by gas dusts
IP66/68 = Degree of protection
