Section 6: Local Controls
Local Controls
Section 6: Local Controls
6.1 Description of the Local Operator Interface
The following functions are available via the XTE3000 local operator interface:
• Actuator Control
• Actuator Conguration
• Actuator Status Visualization
The gures on the following pages describe the function of each component of the local
operator interface.

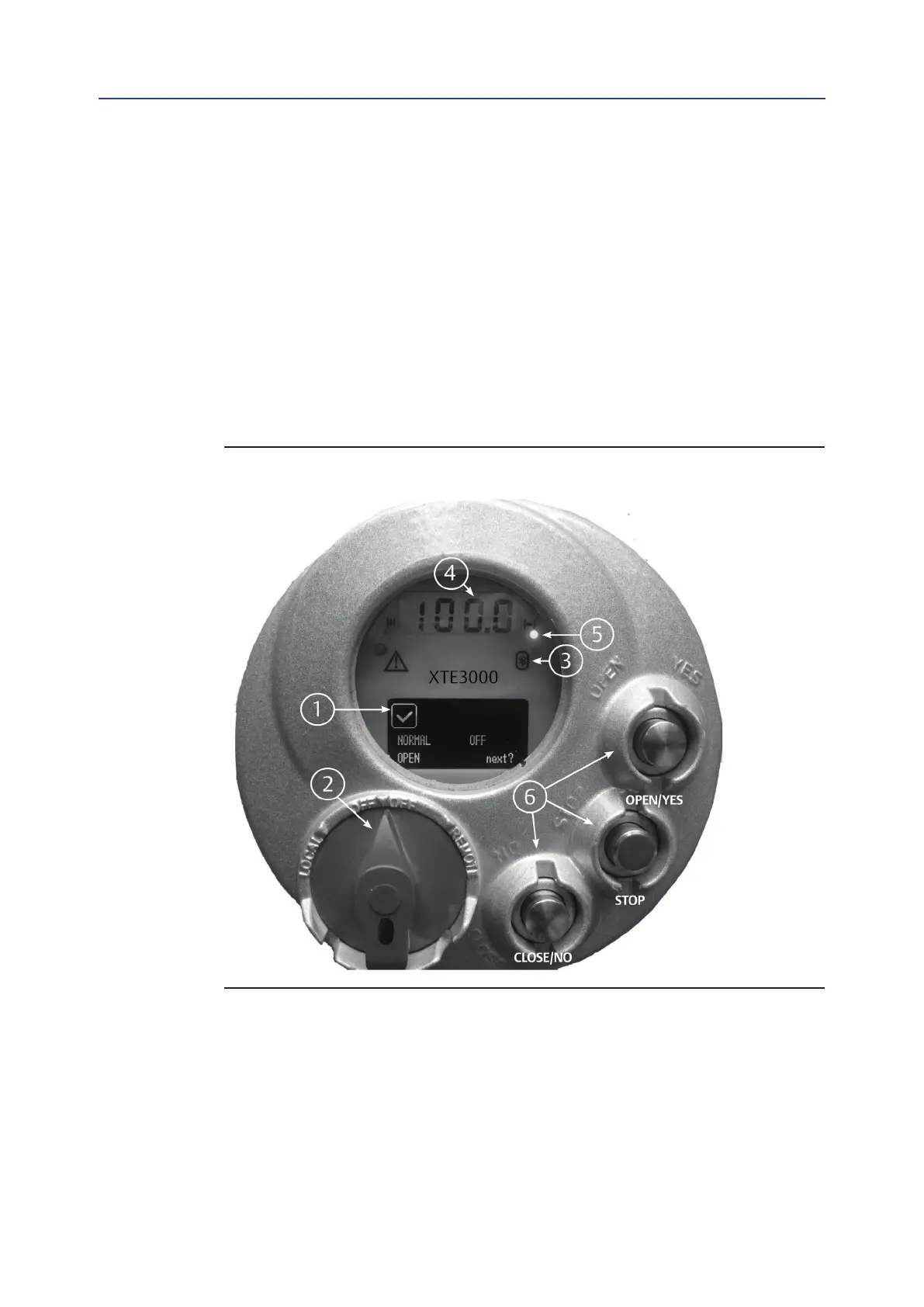

Figure 52 Local Operator Interface Components
1. OLED Graphic display: during normal operation the alphanumeric display shows the
present status (NORMAL, ESD ON, ALARM, WARNING, INTERLOCK), the 3-position
selector status (LOCAL, OFF, REMOTE), and the actuator action (OPEN, OPENING,
CLOSED, CLOSING, STOP, or R% : xxx.x). If the local selector is in OFF or REMOTE,
pressing the YES push-button allows the user to scroll through the list of variables,
alarms, and reports:
