120
OPERATION
Operation_Pic_number:1

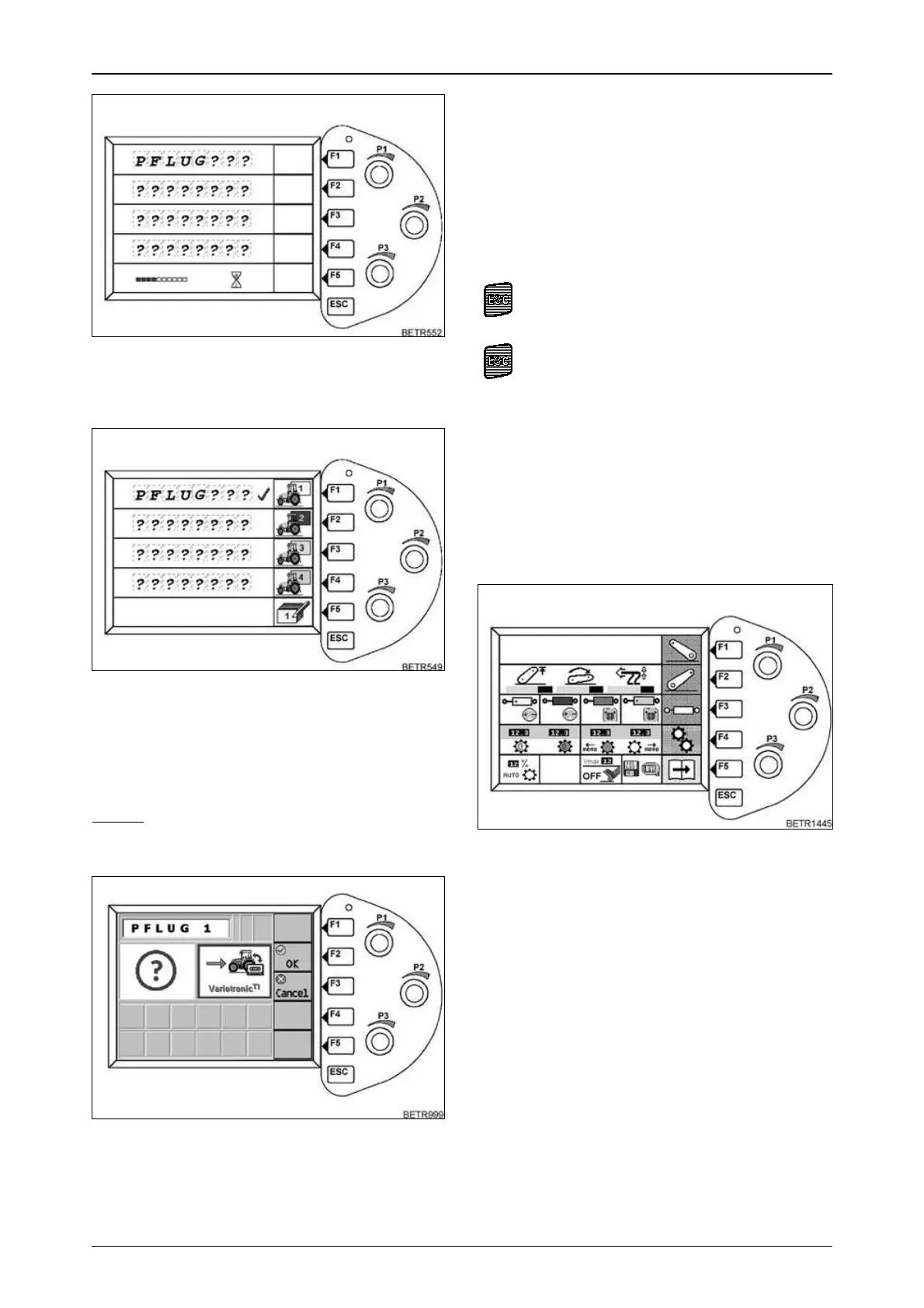

The following sub-menu then automatically
appears. Settings are stored.
Operation_Pic_number:1
If the parameters are loaded successfully, a
checkmark appears next to the memory location.
The following sub-menu then automatically
appears.
NOTE:
Engine must be running with the transmis-
sion in neutral position.
Operation_Pic_number:1
● Press key (F2). The Variotronic Ti menu ap-
pears. For further description (see OPERA-
TION Section 30).
● Press key (F3) to return to first main menu.
Fig.290
Fig.291
Fig.292
29. Implement control
Text-module
With the implement control, the existing controls
on the tractor (operating terminal, joystick) can
be used for operating the attached implement.
Text-module
ESC key
The ESC key has a double function in implement
control.
29.1 Assigning control terminal
Text-module
An LBS control terminal can also work via a se-
parate control terminal, e.g. Fieldstar, therefore
the system must be informed which control ter-
minal is to be used.
Operation_Pic_number:1
● Press key (F5). The following sub-menu ap-
pears.
Press key once (for about 1 sec.) to return
to previous function level.
Press key twice to toggle between last
selected tractor menu and last selected
implement control menu.
This function only works if there is an active
mounted implement.
Fig.293
