FAULTS AND REMEDIAL ACTIONS
6. Emergency operation
If the transmission ratio can no longer be set by
the electronic system due to actual or indicated
faults, the transmission can be controlled me-
chanically with the auxiliary lever.
The maximum speed in range 2 is 34 km/h for
forward travel and 25 km/h for reverse, in range
1 the maximum speed for forward travel is
15 km/h and 11 km/h for reverse.

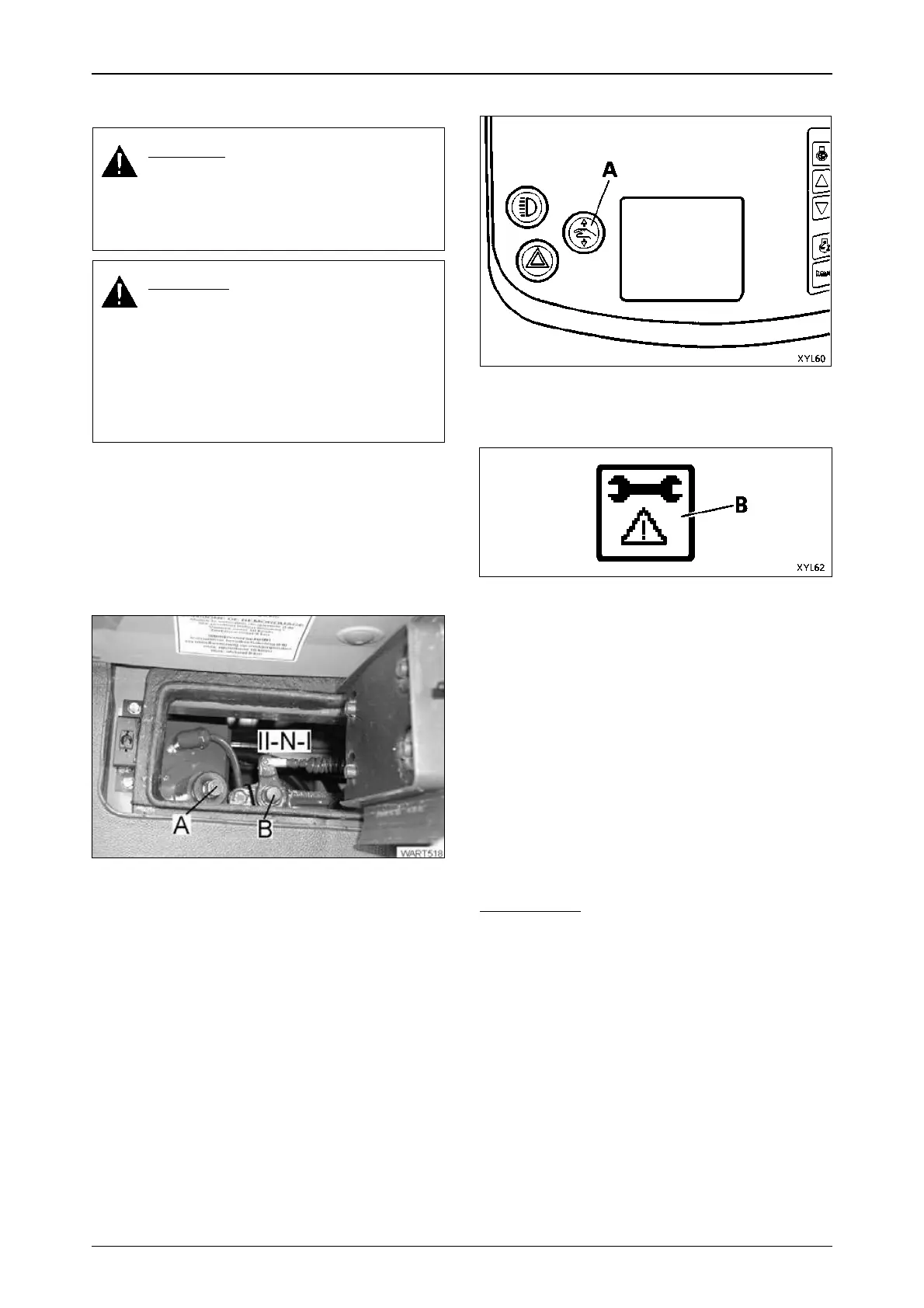

Operation_Pic_number:1
● Open cover from the cab floor and remove.
● Connect auxiliary lever (A) to transmission
adjustment.
Auxiliary lever is included as standard equip-
ment.
DANGER:
Turn off the engine, put the driving
mode selector in neutral position
(centre position) and apply the hand
brake.
CAUTION:
After starting the engine, the
transmission is fully engaged if a
driving mode (I or II) has been
selected.
Since either a transmission ratio or a
direction of travel is selected, the
clutch pedal must be operated
carefully.
Fig.6
Activating the emergency operation
Operation_Pic_number:1
● Press clutch pedal.
● Press button (A/red).
Operation_Pic_number:1
Symbol (B) is now shown on the multiple display.
Symbol (B) is also displayed in the event of a
fault leading to emergency operation.
When using emergency operation, travel
direction indicators are no longer active.
If activated unintentionally:
● Stop the tractor.
● Terminate emergency operation by switching
ignition OFF and ON.
Text-module
Mechanical selection of transmission
ratio
IMPORTANT:
When setting the transmission ratio, only the
supplied auxiliary lever should be used, ot-
herwise the coupling in the adjuster may be
turned too far (max. perm. torque 10 Nm).
● Carefully engage clutch pedal.
The tractor starts moving into the last selected
travel direction and accelerates up to the selec-
ted transmission ratio.
