68
OPERATION

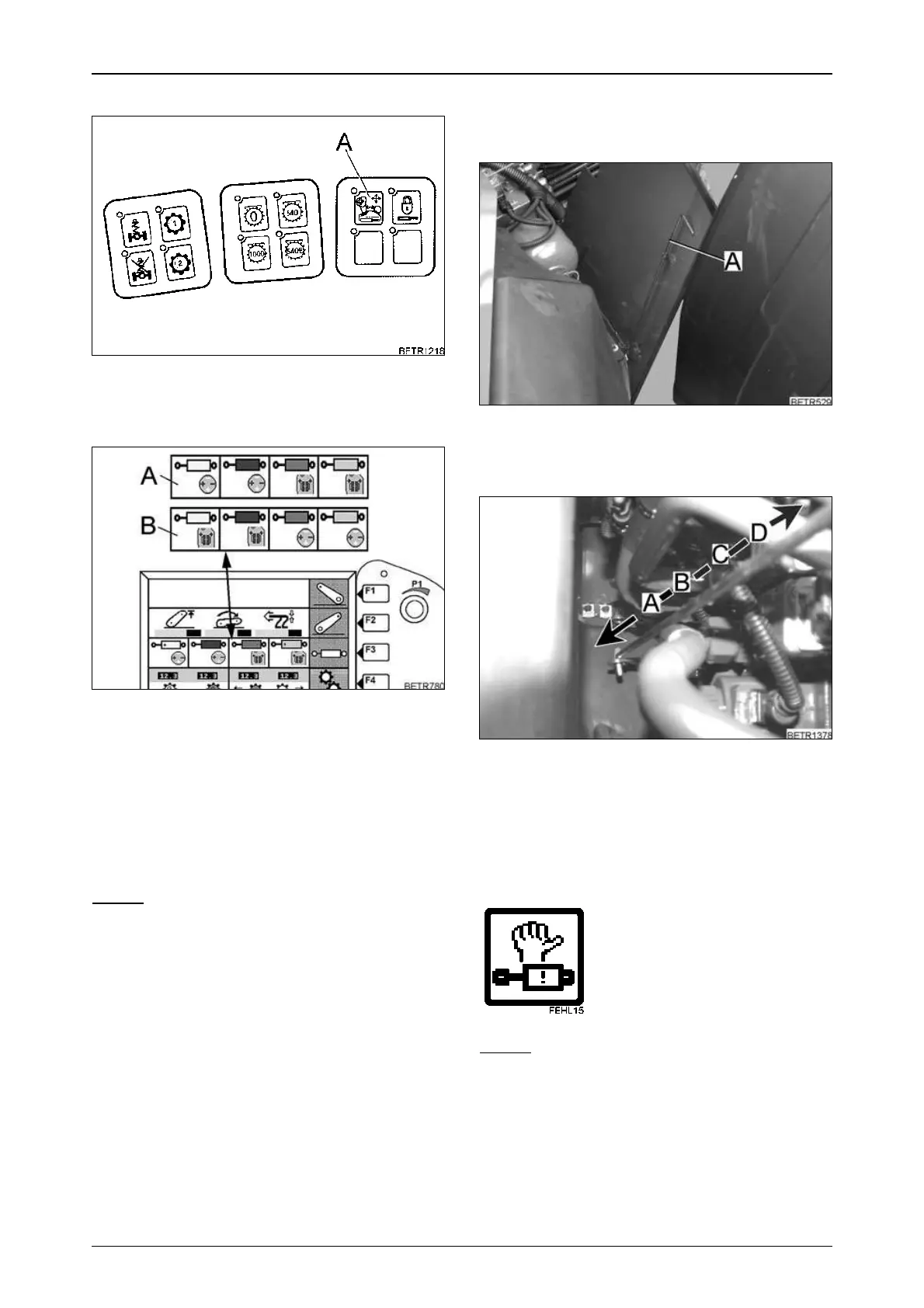

Switching the valve controls
Operation_Pic_number:1
The valves controls can be switched over using
button (A).
Operation_Pic_number:1
A = The yellow and blue valves are operated
with the crossgate lever, and the red and
green valves are operated using the tog-
gle switches on the joystick.
B = Valves (red, green) are operated from
the crossgate lever, valves (yellow, blue)
are operated from the toggle switches on
the joystick.
NOTE:
The new setting remains effective even when
the tractor is restarted.
Do not keep the control valves at the end of
travel for long periods (the hydraulic pump
delivers against pressure, causing the oil to
heat up).
Fig.121
Fig.122
Manual operation
In the event of electronic failure, the individual
valves can also be operated manually.
Operation_Pic_number:1
● Levers (A) under cover on right of doorway.
Actuate the valves using lever.
Operation_Pic_number:1
Directions of actuation:
A = Raise
B = Neutral
C = Lowering
D = Floating position
NOTE:
After manual operation, the valves cannot
only be operated again with the crossgate le-
ver or toggle switches after a Reset (engine
OFF then ON).
This screen is displayed as soon
as a valve is operated manually,
when the engine running.
Fig.123
Fig.124
