89
OPERATION
20.2 Standard version
In the standard version, the front power lift is
connected by a fixed pipe to the red or green
valve, depending on the the type of equipment.
Operating with the control for the corresponding
valve (see also OPERATION Section 17.3).

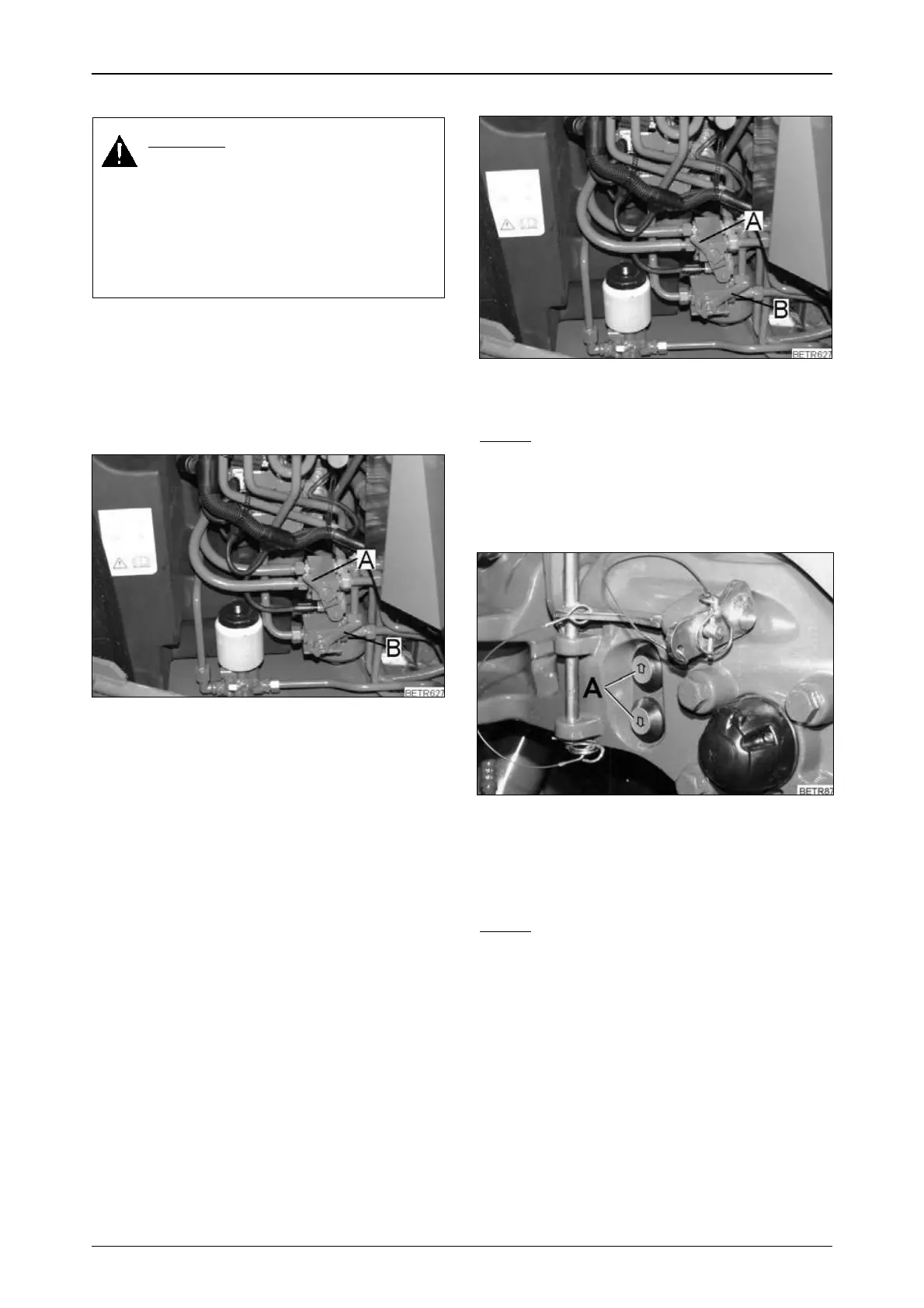

Shutoff cock
Operation_Pic_number:1
OPEN
● Turn lever (A) to the left.
CLOSE
● Turn lever (A) to the right.
DANGER:
Disconnect rear hydraulic lines
before opening the shutoff cock!
Risk of unintentional implement
movement.
After finishing front powerlift
operations, turn stopcock to (see
OPERATION Fig. 212) OFF.
Fig.197
DA/SA operation
Operation_Pic_number:1
● Turn lever (B) - see sticker.
NOTE:
Only use light implements (e.g. mowers)
which are loaded without pushing, in the SA
position.
External operation
Operation_Pic_number:1
● The lifting gear can be raised or lowered
using buttons (A).
Max. oil quantity 15 l/min.
NOTE:
The external controls only work when the
shutoff cock is open.
Fig.198
Fig.199
