99
OPERATION
Remote control
Operation_Pic_number:1

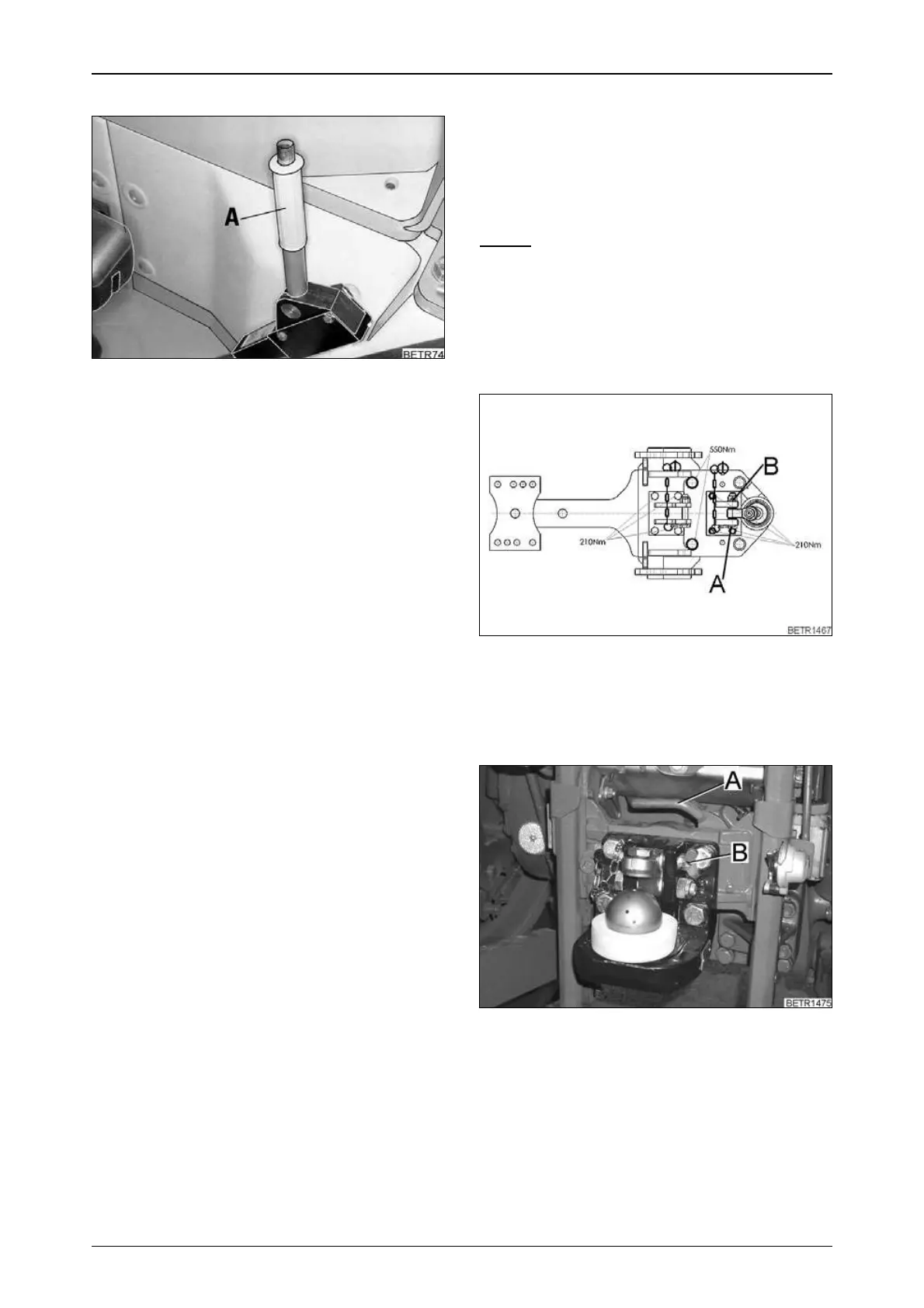

● The hitch coupling can be operated from the
driving seat using hand lever (A).
Fig.229
21.5 Ball coupling, drawbar, pi-
ton fix
Text-module
(optional).
Text-module
Ball coupling
NOTE:
The use of ball coupling when travelling on
the public highway is only permitted if this is
entered in the vehicle documents.
The trailer must be equipped with a height-
adjustable support.
Ball coupling
Operation_Pic_number:1
After coupling, secure locking clamp with bolt
(A), fit safety lock (B).
Ball coupling height adjustable
Operation_Pic_number:1
Moving the hitch coupling.
● Press handle (A) upwards and to the right.
● Bring trailer hitch to the desired height.
● Hold trailer hitch in floating position to allow
the locking bolt to lock in place; at the press
handle (A) to the left.
● After coupling, secure locking clamp with bolt
(A), fit cotter pin (B).
Fig.230
Fig.231
