CARE AND MAINTENANCE
13.2 Changing the hydraulic oil
IMPORTANT:
Always use only clean oil, containers and
funnels.
Oil must meet the cleanness standard of fil-
ter class 10 in accordance with NAS 1683.
Change the oil when the oil in the system is
warm, the power lift is lowered, and all cylinders
are retracted.
Operation_Pic_number:1
Draining the oil:
● Place oil drip pan underneath the hydraulic
reservoir.
● Unscrew and remove drain plug (A) and allow
the oil to drain.
● Clean the drain plug, refit and tighten.
Operation_Pic_number:1
Filling with oil:
● Preferably fill in the oil through a return flow
coupling using a pump.
This way the oil is filtered.

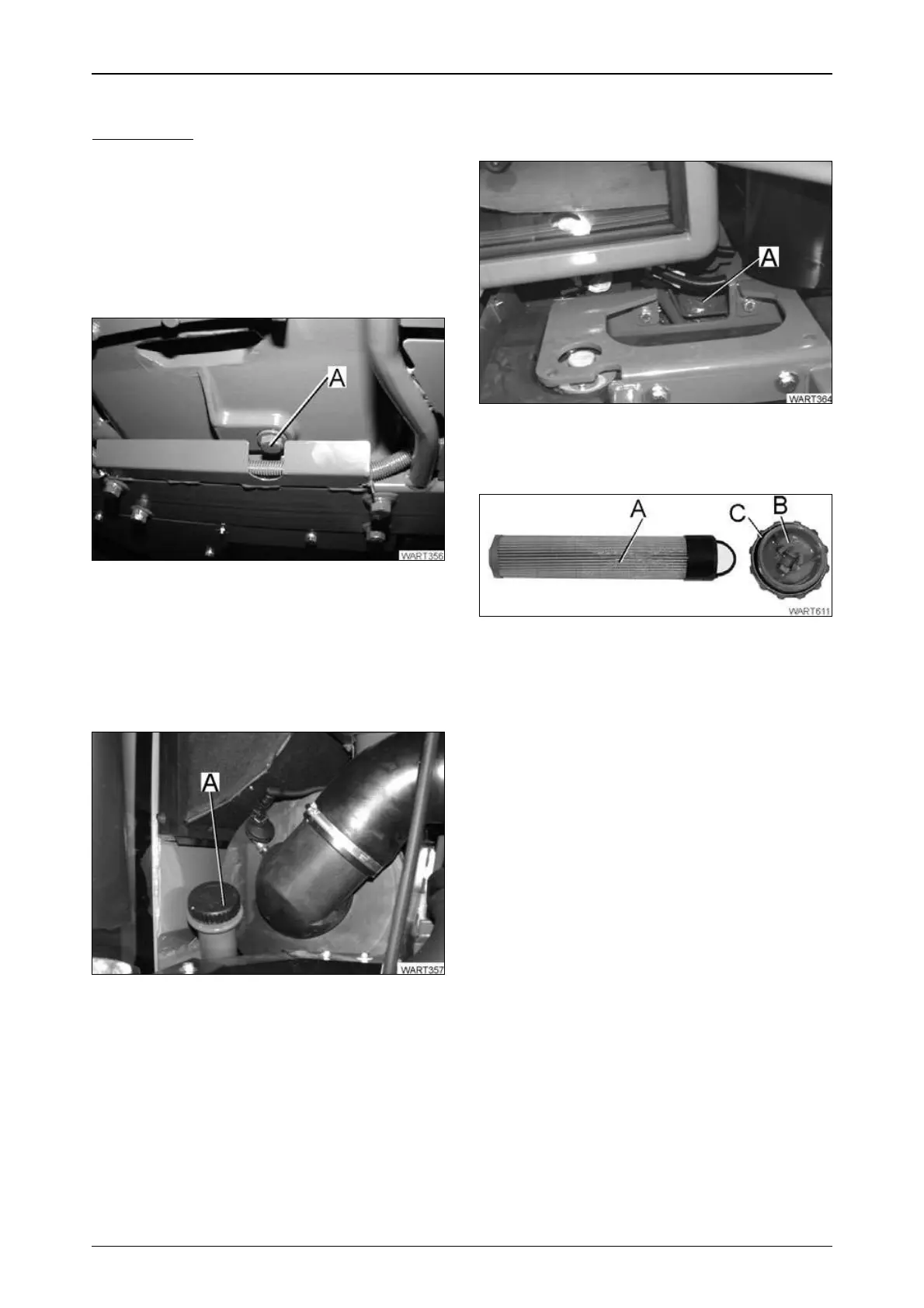

Fig.43
Fig.44
13.3 Hydraulic oil filter
Replacing the return line filter
Operation_Pic_number:1
Remove the cover panel on right of entrance.
● Unscrew the filter cover (A).
Operation_Pic_number:1
● Pull out main cartridge (A).
● Insert new filter cartridge (hole downwards).
● Insert new flat seal (B) in filter cover (C).
● Screw on filter cover (C).
Fig.45
Fig.46
