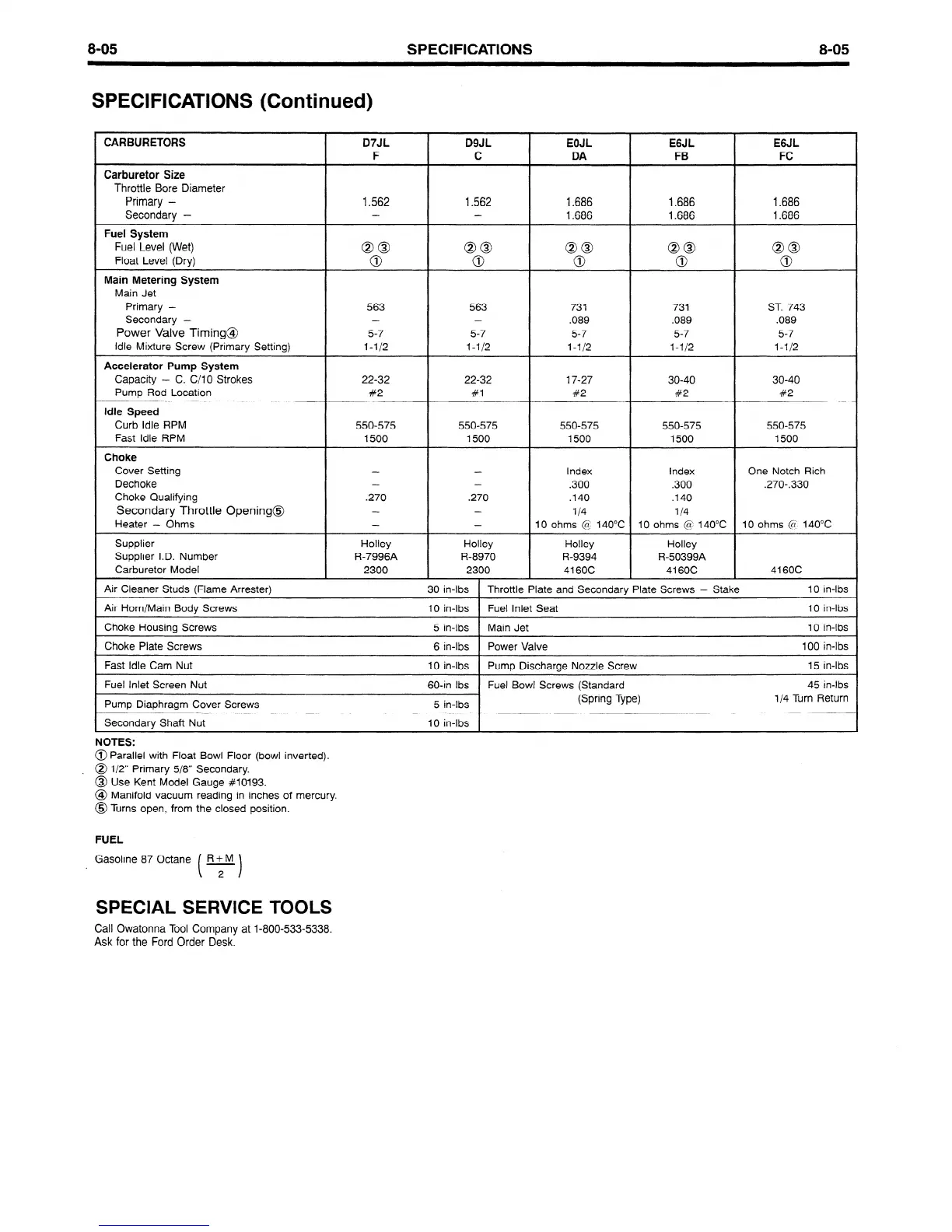

8-05
SPECIFICATIONS
8-05
SPECIFICATIONS (Continued)
CARBURETORS
D7JL DSJL EOJL EGJL EGJL
F
C DA FB
FC
Carburetor Size
Throttle Bore Diameter
Primary -
1.562
1.562 1.686 1.686 1.686
Secondary -
- -
1.686 1.686
1.686
Fuel System
Fuel Level (Wet)
00 00 00 00 00
Float
Level (Dry)
0
CD 0 0 0
Main Metering System
Main
Jet
Primary -
563
563 731 731
ST. 743
Secondary -
- -
.089 .089 .089
Power
Valve
Timing@
5-7
5-7 5-7 5-7 5-7
idle Mixture Screw (Primary Setting)
l-112 l-112
l-1/2
l-112 l-1/2
Accelerator Pump System
Capacity -
C. C/IO Strokes 22-32 22-32 17-27
30-40 30-40
Pump Rod Location
#2
#l #2 #2 #2
Idle Speed
Curb idle RPM
550-575
550-575 550-575 550-575 550-575
Fast Idle RPM
1500
1500 1500 1500
1500
Choke
Cover Setting
- -
Index Index
One Notch Rich
Dechoke
- -
.300
.300
.270-.330
Choke Qualifying
.270 .270 .140
.140
Secondary Throttle Opening@
- -
l/4 l/4
Heater - Ohms
-
-
10 ohms @ 140°C 10 ohms @ 140°C 10 ohms @ 140°C
Supplier
Halley Halley Holley
Holley
Supplier I.D. Number
R-7996A R-8970
R-9394 R-50399A
Carburetor Model
2300 2300 416OC
416OC
416OC
Air Cleaner Studs (Flame Arrester) 30 in-lbs Throttle Plate and Secondary Plate Screws - Stake 10 in-lbs
Air Horn/Main Body Screws
10 in-lbs Fuel Inlet Seat
10 in-lbs
Choke Housing Screws 5 in-lbs
Main Jet
10 in-lbs
Choke Plate Screws 6 in-lbs
Power Valve
100 in-lbs
Fast Idle Cam Nut 10 in-lbs
Pump Discharge Nozzle Screw
15 in-lbs
Fuel Inlet Screen Nut 60-in Ibs
Fuel Bowl Screws (Standard
45 in-lbs
Pump Diaphragm Cover Screws 5 in-lbs
(Spring Type)
l/4 Turn Return
Secondary Shaft Nut
10 in-lbs
I
NOTES:
@ Parallel with Float Bowl Floor (bowl inverted).
. @ l/2” Primary 5/8” Secondary.
@ Use Kent Model Gauge #10193.
@ Manifold vacuum reading in inches of mercury.
@ Turns open, from the closed position.
FUEL
Gasoline 87 Octane
SPECIAL SERVICE TOOLS
Call Owatonna Tool Company at I-800-533-5338.
Ask for the Ford Order Desk.
