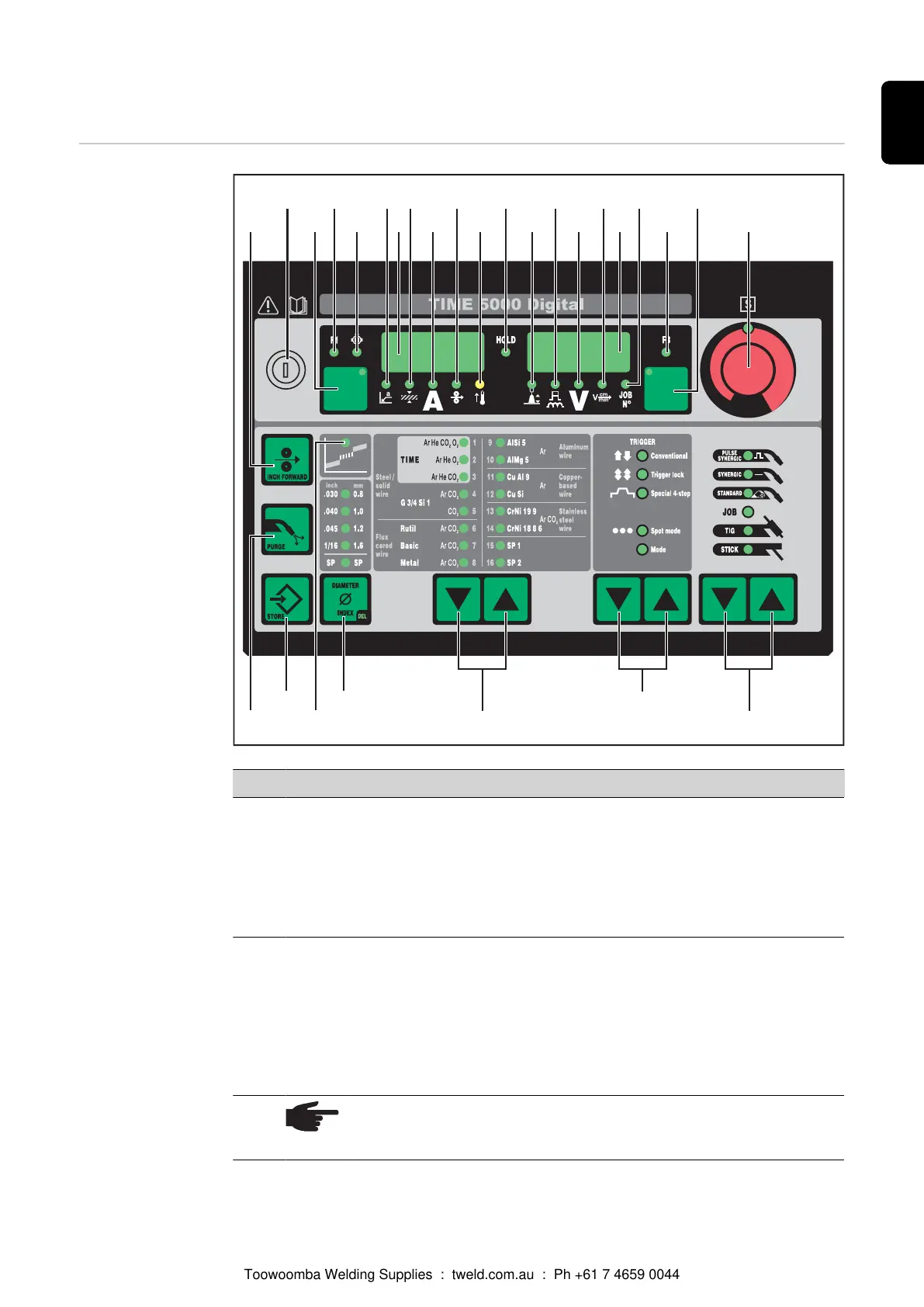

TIME 5000 Digital control panel
TIME 5000 Digital
control panel
(14)(4)
(1)
(28) (26)
(25)
(5)
(18)
(15)
(12)
(11)
(10)
(3)
(6)
(9)(7)
(16)(8)
(27)
(24)
(23)
(22)
(13)
(2)
(19)
(17)
(20)
(21)
No. Function
(1) Inch Forward (feeder inching) button
for feeding the wire electrode into the torch‑hosepack with no accompanying
flow of gas or current
For information on the various wire feed sequences that are possible when the
welder presses and holds the "Feeder inching" button, see the Fdi parameter
in the Setup menu.
(2) Keylock switch (optional)
When the key is in the horizontal position, the following functions are dis-
abled:
- Selecting the welding process using the Process button(s) (20)
- Selecting the mode using the Mode button(s) (21)
- Selecting the filler metal using the Material button(s) (22)
- Opening the Setup menu using the Store button (25)
- Opening the job correction menu (see “Job mode”)
NOTE! The functions available on the control panel of system com-
ponents are restricted in the same way as those of the control panel
on the power source.
