No. Function
(12) 4 roller drive
TPS 2700 CMT
power source
(3)(4)
(5)
(6)
(2)(1)
(7) (8)
(9)
(10)(11)
(13)(12)

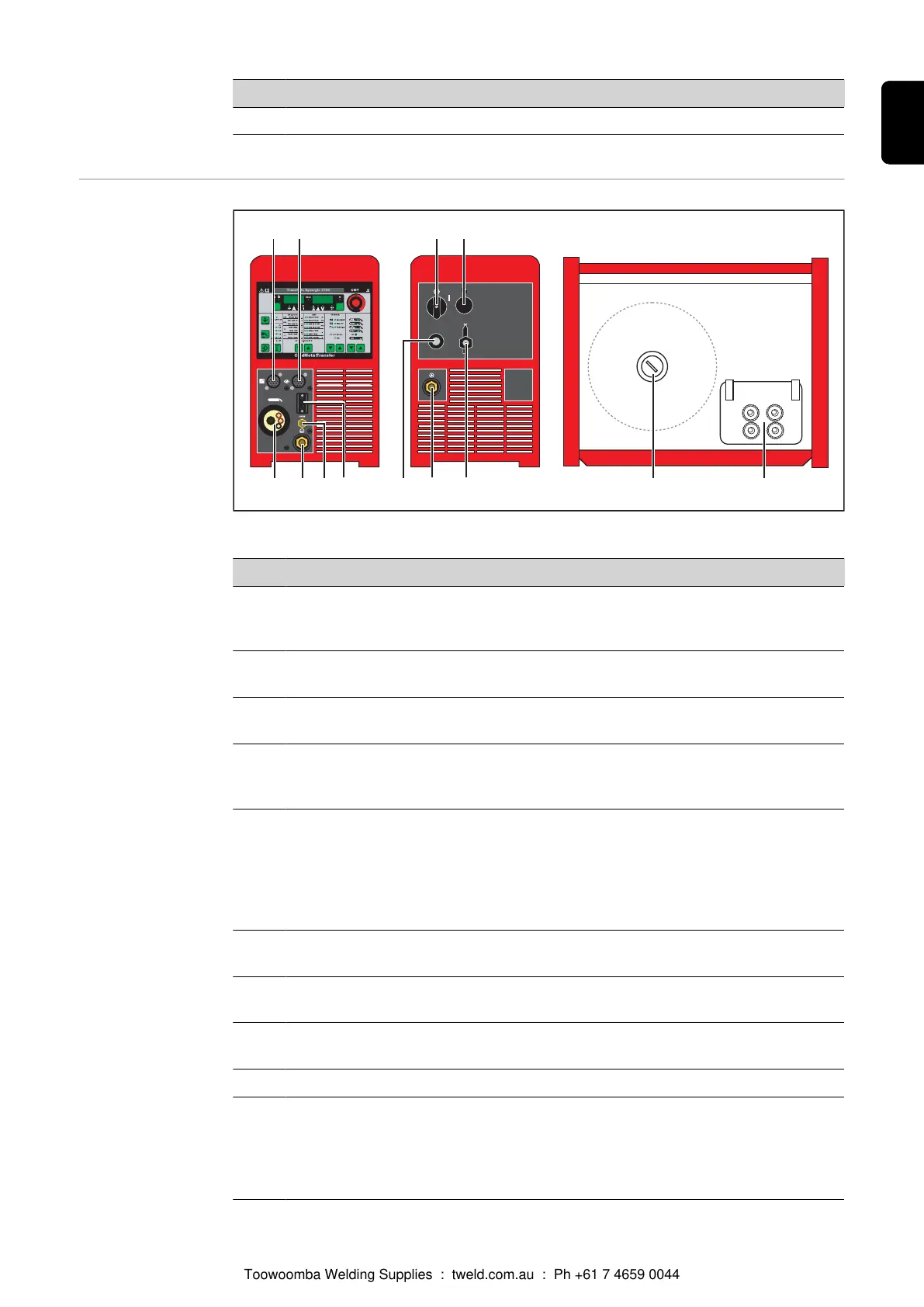

Front view / Rear view / Side view
No. Function
(1) LocalNet connection
Standardised connection socket for system add-ons (e.g. remote control, Job-
Master torch, etc.)
(2) Motor control connection
for connecting the control line from the CMT drive unit
(3) Welding torch control connection
for the welding torch control plug
(4) LHSB connection
for connecting the LHSB cable from the CMT drive unit (LHSB = LocalNet
High-Speed Bus)
(5) (-) - Current socket with bayonet latch
for:
- connecting the grounding (earthing) cable during MIG/MAG welding
- the current connection for the TIG welding torch
- connecting the electrode cable or grounding (earthing) cable during MMA
welding (depending on the type of electrode used)
(6) Welding torch connection
for connecting the welding torch
(7) Mains switch
for switching the power source on and off
(8) Blanking cover
reserved for a LocalNet connection
(9) Shielding gas connection
(10) (+) - Current socket with bayonet latch
for:
- connecting the grounding (earthing) cable during TIG welding
- connecting the electrode cable or grounding (earthing) cable during MMA
welding (depending on the type of electrode used)
67
EN
