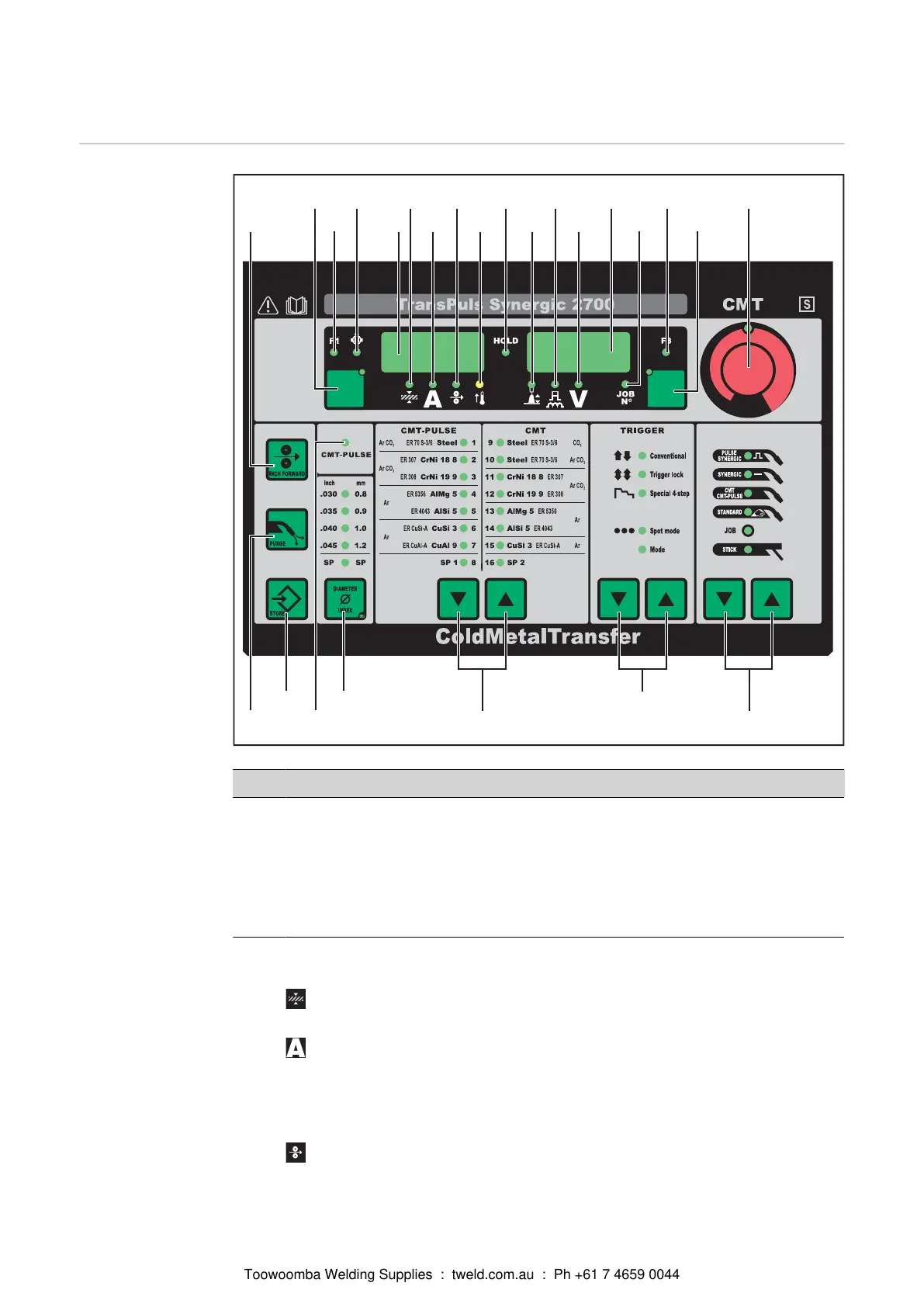

CMT control panel
CMT control
panel
(14)(4)
(1)
(25)
(5)
(18)
(15)
(12)
(11)
(10)
(3)
(6)
(9)(7)
(16)(8)
(24)
(23)
(22)
(13)
(2)
(19)
(17)
(20)
(21)
No. Function
(1) Inch Forward (feeder inching) button
for feeding the wire electrode into the torch‑hosepack with no accompanying
flow of gas or current
For information on the various wire feed sequences that are possible when the
welder presses and holds the "Feeder inching" button, see the Fdi parameter
in the Setup menu.
(2) Parameter selection button
for selecting the following parameters:
Sheet thickness
1)
Sheet thickness in mm or in.
Welding current
1)
Welding current in A
Before the start of welding, the machine automatically displays a
standard value based on the programmed parameters. During weld-
ing, the actual value is displayed.
Wire feed speed
1)
Wire feed speed in m/min or ipm.
54
