No. Function
(8) Second (-) - Current socket with bayonet latch (optional) for:
- connecting the interconnecting hosepack in MIG/MAG welding for polar-
ity reversal (e.g. for innershield and flux core wire welding)
- specially for automated and robot applications where the interconnecting
hosepack and grounding (earthing) cable are to be connected to one side
of the power source (e.g. in a switch cabinet)
Second (+) - Current socket with bayonet latch (optional)
for connecting a second current cable
Blanking cover
If the second (-) current socket with bayonet latch or second (+) current socket
with bayonet latch options are not present on the power source.
(9) (+) - Current socket with bayonet latch for:
- connecting the current cable from the interconnecting hosepack during
MIG/MAG welding
- connecting the grounding (earthing) cable during TIG welding
- connecting the electrode cable or grounding (earthing) cable during MMA
welding (depending on the type of electrode used)
CMT 4000
Advanced power
source
CMT 4000 Advanced
(1)
(2)
LHSB
(3)
(4)
(5)
(7)
(8)
(6)

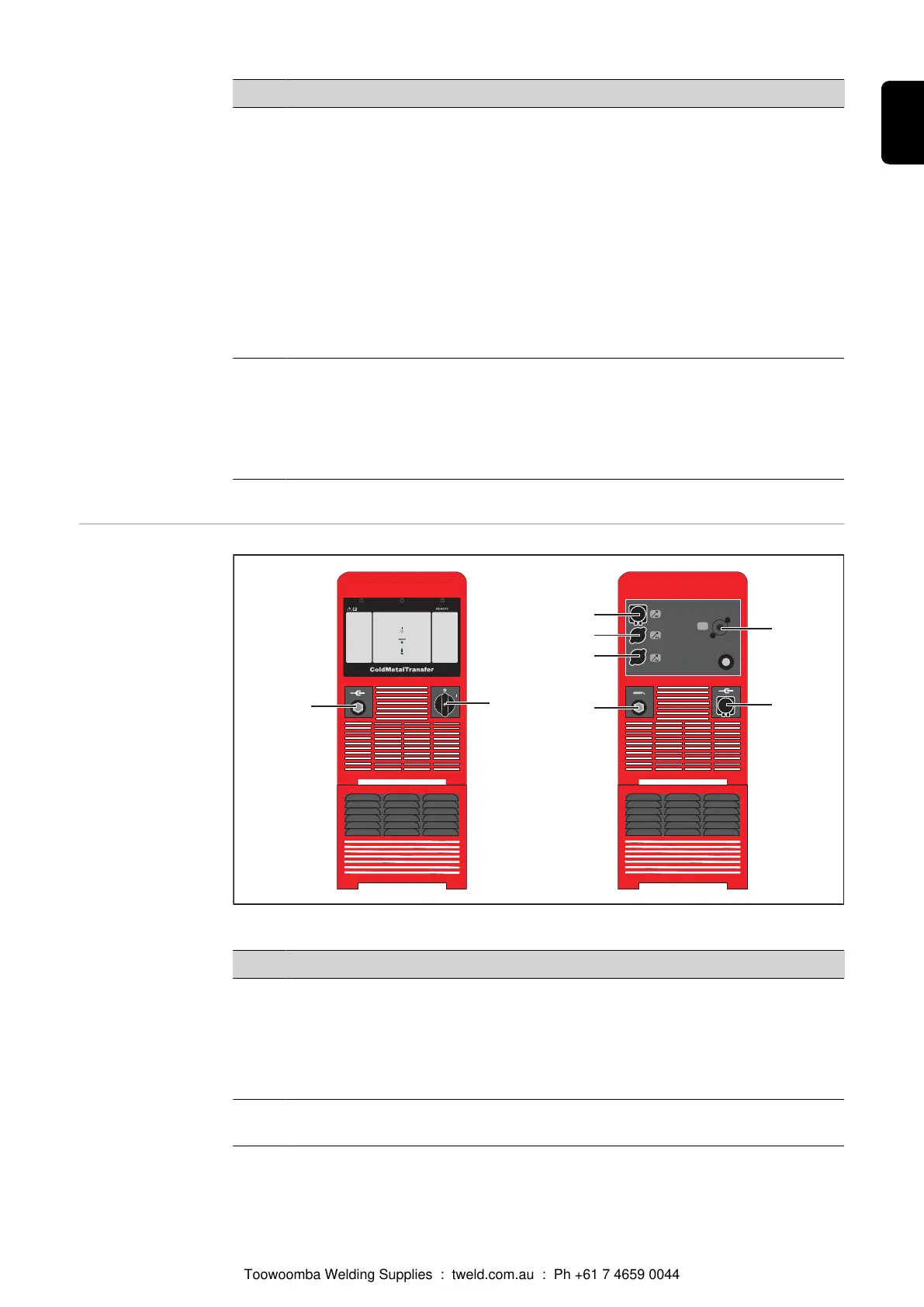

Front view / Rear view
No. Function
(1) Grounding (earthing) cable connection
for:
- connecting the grounding (earthing) cable in MIG/MAG welding, CMT
welding and CMT Advanced welding
- connecting the electrode cable or grounding (earthing) cable during MMA
welding (depending on the type of electrode used)
(2) Mains switch
for switching the power source on and off
69
EN
