348 Troubleshooting
Clearing Paper Jams From the DADF
When a document jams while it passes through the DADF, remove the jam in the following procedure.
NOTE:
• To prevent document jams, use the document glass for thick, thin, or mixed documents.

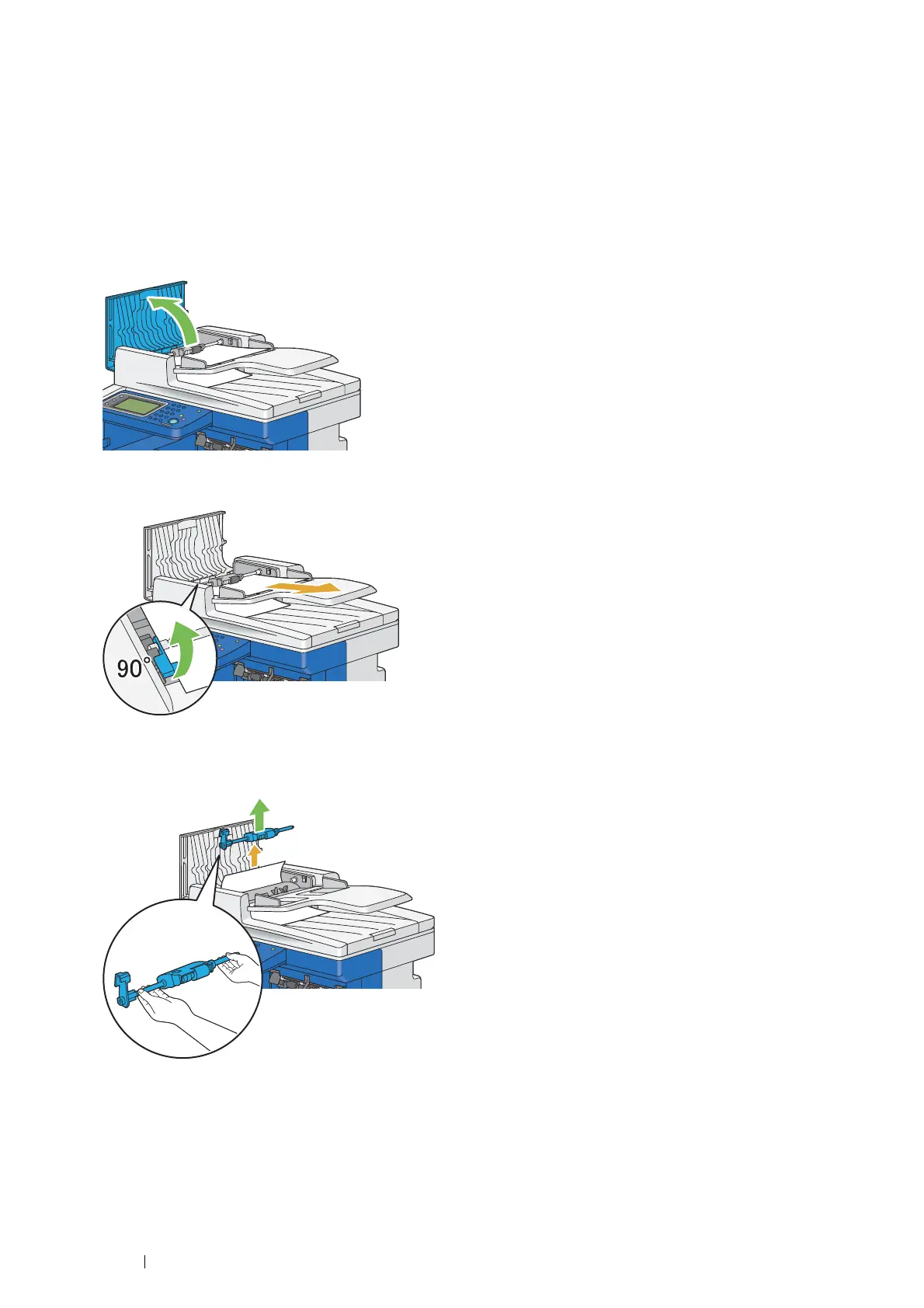

1 Remove the remaining documents from the DADF.
If the document is jammed in the paper feed area:
a Open the DADF cover.
[
b Lift the release lever 90 degrees and remove the jammed document by carefully pulling the document in
the direction of the arrow shown in the following illustration.
If you find it difficult to pull the document:
c Remove the DADF feed roller assembly and remove the document by gently pulling the document in the
direction of the arrow shown in the following illustration.
To Next Page
