Furuno GP-1670F User Manual

xi

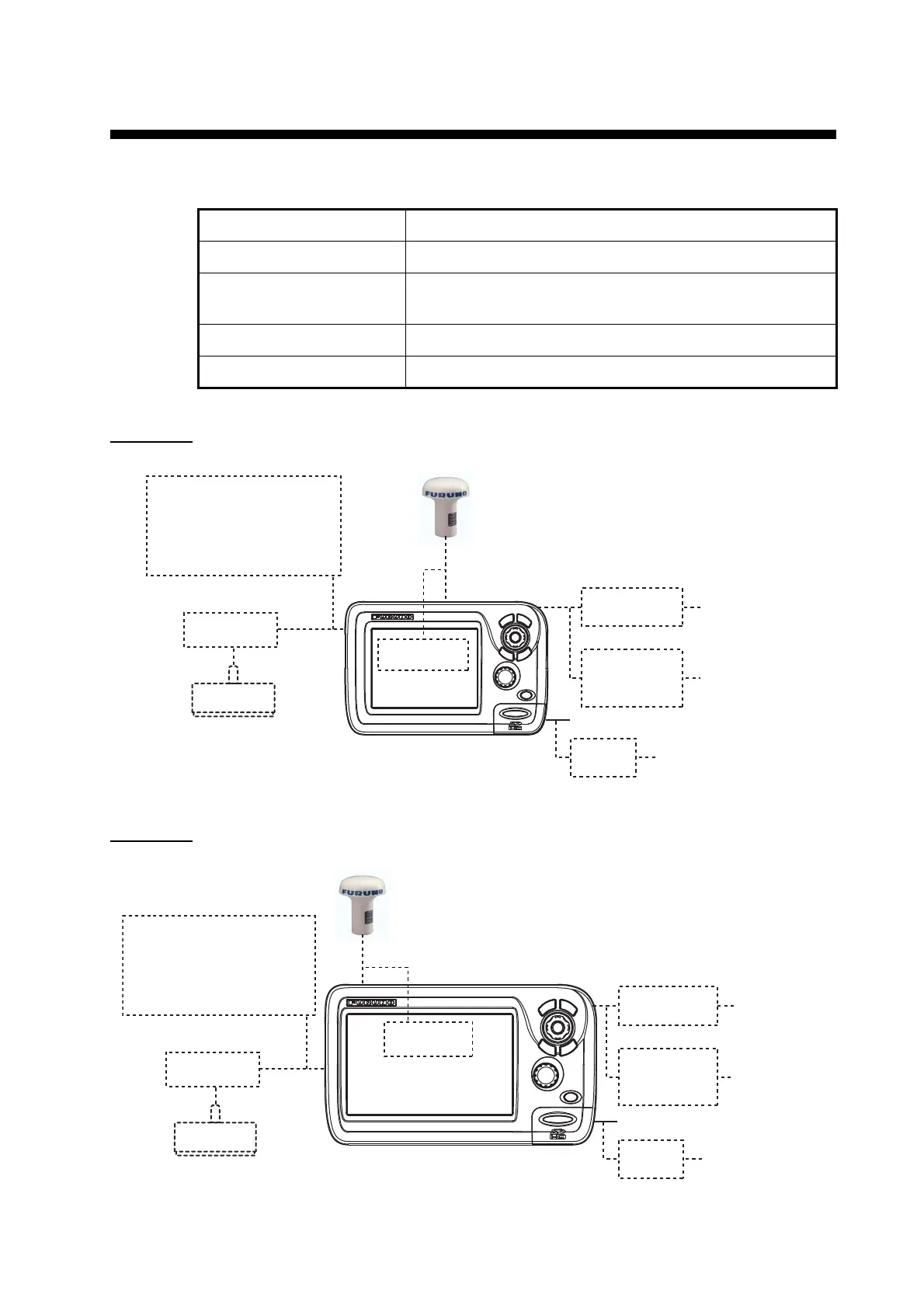

SYSTEM CONFIGURATION
The environmental category of each unit is as follows:
GP-1670F
GP-1870F
Unit Environmental category
Display unit Protected from the weather
GPS antenna unit Exposed to the weather, or protected from the weather in
case of internal antenna
Transducer, sensor Submerged in water
Other units Protected from the weather
OR
Display Unit
GP-1670F
Antenna Unit
GPA-017 or
GPA-017S
CAN bus
equipment
NMEA 0183
equipment
Junction Box
FI-5002
NMEA Data
Converter
IF-NMEA2K2
Internal GPS
antenna
520-5PSD, 520-5MSD,
525-5PWD, 525STID-MSD,
525STID-PWD
Transducer
Matching Box
MB-1100*
* For connection to 1 kW
transducer (50B-6, 50B-6B,
200B-5S, 50/200-1T,
50/200-12M)
12-24 VDC
100/110/
220/230 VAC,
1ø, 50/60 Hz
Rectifier
PR-62
Water temp./speed
sensor
ST-02MSB, ST-02PSB
Water temp. sensor
T-04MSB, T-04MTB
Display Unit
GP-1870F
Antenna Unit
GPA-017 or
GPA-017S
OR
520-5PSD, 520-5MSD,
525-5PWD, 525STID-MSD,
525STID-PWD
Transducer
Matching Box
MB-1100*
* For connection to 1 kW transducer
(50B-6, 50B-6B, 200B-5S,
50/200-1T, 50/200-12M)
12-24 VDC
CAN bus
equipment
NMEA 0183
equipment
100/110/
220/230 VAC,
1ø, 50/60 Hz
Junction Box
FI-5002
NMEA Data
Converter
IF-NMEA2K2
Rectifier
PR-62
Internal GPS
antenna
Water temp./speed
sensor
ST-02MSB, ST-02PSB
Water temp. sensor
T-04MSB, T-04MTB
