13. INSTALLATION
13-20
13.6.2 CAN bus input/output
How to select CAN bus input and output data
1. Long-press the ESC/MENU key to open the menu.
2. Rotate the RotoKey
TM
to select [INTERFACE] then push the key.
3. Use the RotoKey
TM
to select [SELECT INPUT DEVICE] then push the key.
4. Select the data to input as follows:
1) Use the RotoKey
TM
to select a data then push the key. For [POSITION &
SOG/COG], [DEPTH], [WATER TEMPERATURE] and [SPEED THROUGH
WATER], the following options windows appear.
2) For [POSITION & SOG/COG]:
[Internal GPS]: Position fix is obtained via the internal GPS antenna (including
optional GPS antenna).
[AUto]: Select if you have multiple external navigators connected and want to
use them instead of the internal GPS. In this case, the navigator with the low-
est Node address has priority.
If you have a FURUNO external navigator speed/course source connected, its
name appears below [Auto]. Select the model name to have that device feed
corresponding data.
3) For [DEPTH], [WATER TEMPERATURE] and [SPEED THROUGH WATER],
Select [Fish Finder] to have the internal fish finder feed respective data. Select
[Auto] when external sources are available and you want to use them instead
of the internal fish finder. In this case, the device with the lowest IP address
has priority.

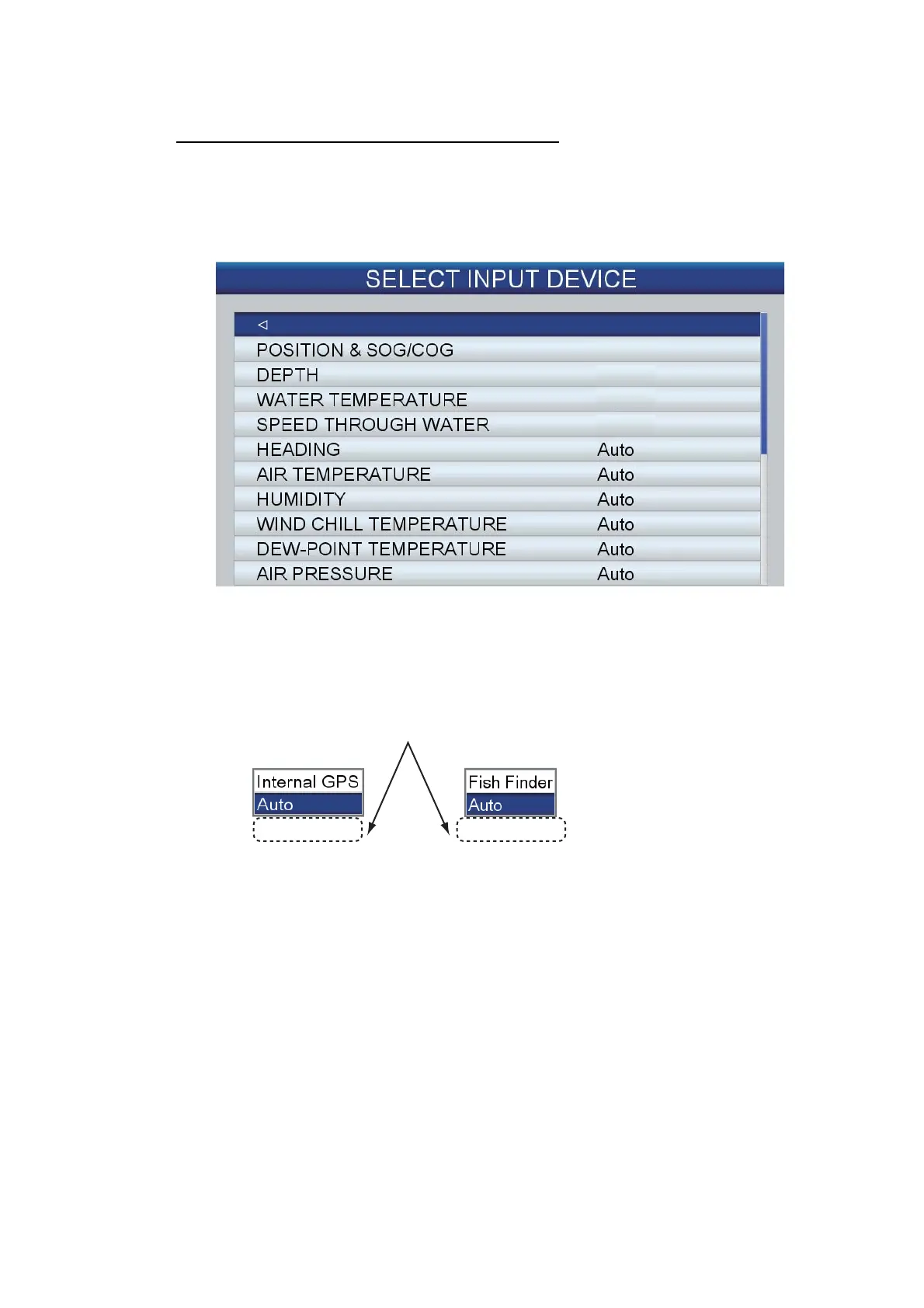

Internal GPS
Fish Finder
Fish Finder
Fish Finder
POSITION &
SOG/COG
DEPTH, WATER TEMPERATURE,
SPEED THROUGH WATER
Name of connected
equipment appears here
To Next Page
