Furuno GP-1670F User Manual

1. OPERATIONAL OVERVIEW
1-18

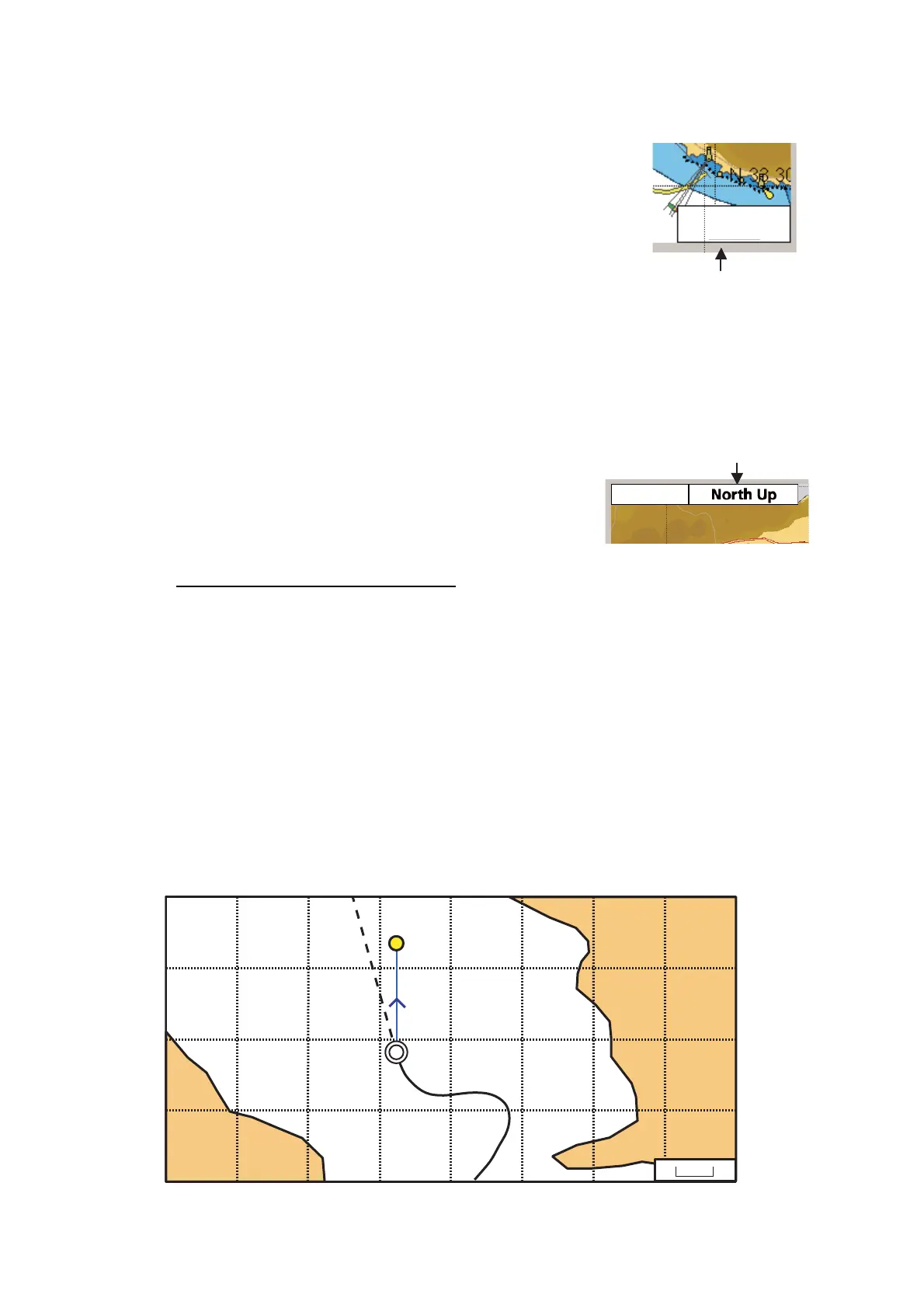

1.9 Display Width
You can change the display width to change the amount of in-
formation shown, or zoom in or out at the location you select,
in the plotter and steering displays. The selected display
width appears at the bottom right-hand position on the
screen. The available widths depends on latitude and chart
area.
To select a display width, rotate the RotoKey
TM
. Clockwise
to increase the width; counterclockwise to decrease the
width.
1.10 Orientation Mode
The chart can be shown in head-up, north-up, course-
up and auto course-up. Select an orientation mode
from the RotoKey menu: Select [Mode] followed by
[Head Up], [North Up], [Course Up] or [Auto Course
Up]. The selected mode appears at the top left-hand
position.
Description of orientation modes
Head-up: Displays the chart with the current compass heading of your boat at the top
of the screen. The heading data from a compass is required. When the heading
changes, the ship icon remains fixed, and the chart picture rotates according to head-
ing.
North-up: North is at the top of the screen. When your heading changes, the ship icon
moves according to heading. This mode is for long-range navigation.
Course-up: The chart picture is stabilized, and shown with your current course (over
ground) at the top of the screen. The ship icon moves with the heading. If you select
a new course, the picture resets to display the new course at the top of the screen. If
no destination is set, the course is upward on the screen at the moment course-up is
selected.
Display width
20 NM
Orientation mode
GPS 3D
PT00001
5 NM
