Sample pump piston rinsing system

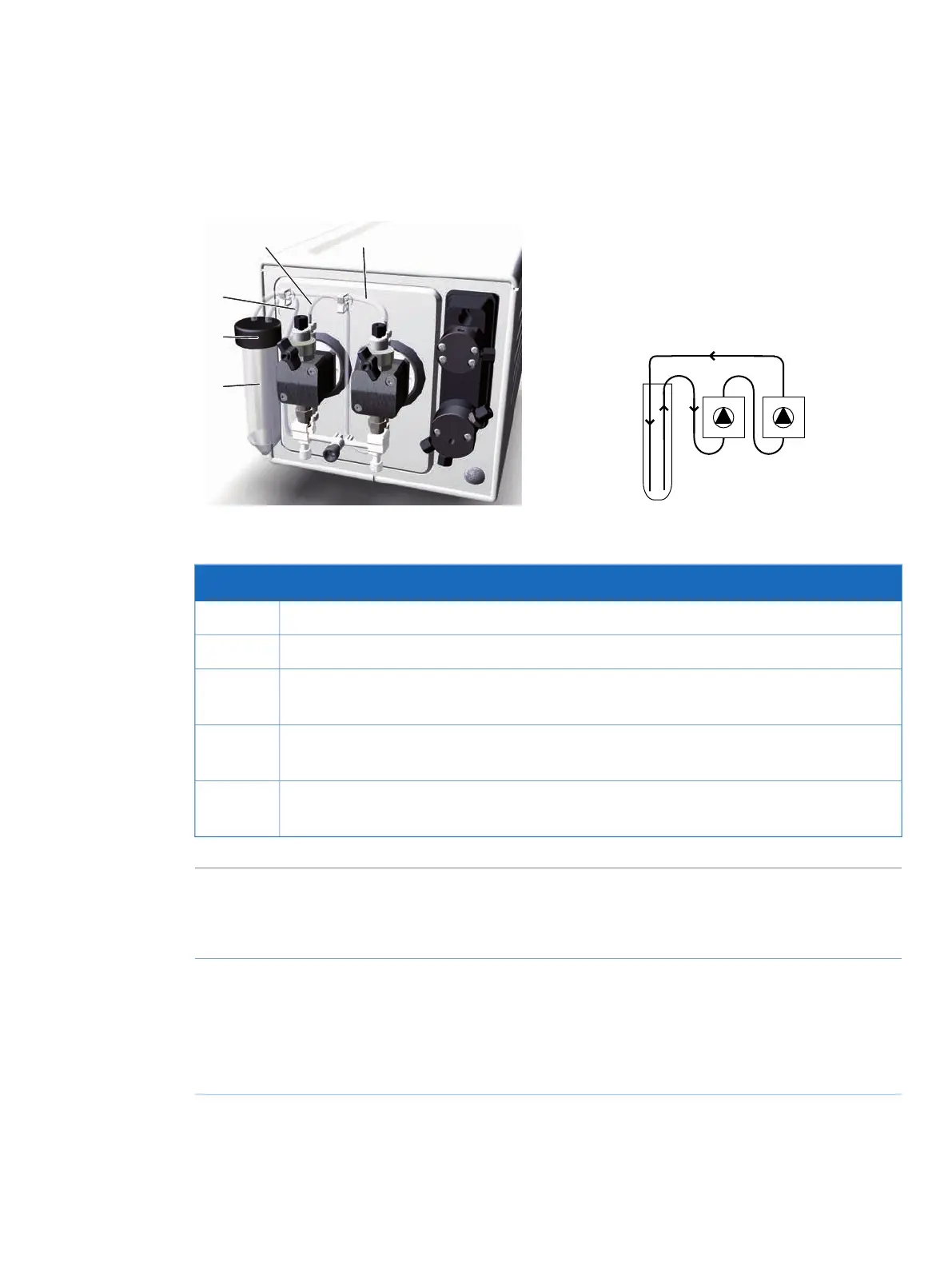

The illustrations below show the parts, tubing and flow path of the sample pump piston rinsing system.
Rinsing system flow pathParts and tubing
FunctionPart
Pump rinsing liquid tube1
Pump rinsing liquid tube holder2
Inlet tubing, from the rinsing liquid tube to the left pump head (lower rinsing system
connection) .
3
Tubing between the left pump head (upper rinsing system connection) and the right
pump head (lower rinsing system connection).
4
Outlet tubing, from the right pump head (upper rinsing system connection) to the rinsing
liquid tube.
5
Connect new tubing
ActionStep
Disconnect the used tubing.1
Cut the new tubing to desired length.2
Connect the new tubing according to the illustrations above.3
Fit all pieces of tubing into the tubing holders on the pump modules.4
ÄKTA pure User Manual 29119969 AB 353
