2.4.6 Injection valve
Function of the Injection valve
The Injection valve is used to direct sample onto the column. The valve enables usage of a number of
different sample application techniques.
The injection valve is labeled V9-Inj for ÄKTA pure 25 and V9H-Inj for ÄKTA pure 150.
A sample loop or a Superloop can be connected to the injection valve and filled either automatically,
using a Sample Pump or System pump A, or manually, using a syringe. The sample can also be injected
directly onto the column using a Sample pump, or System pump A together with the mixer valve.
For instructions on how to connect and use loops, see Section 5.7 Sample application, on page 180.
Location and illustration of the Injection valve

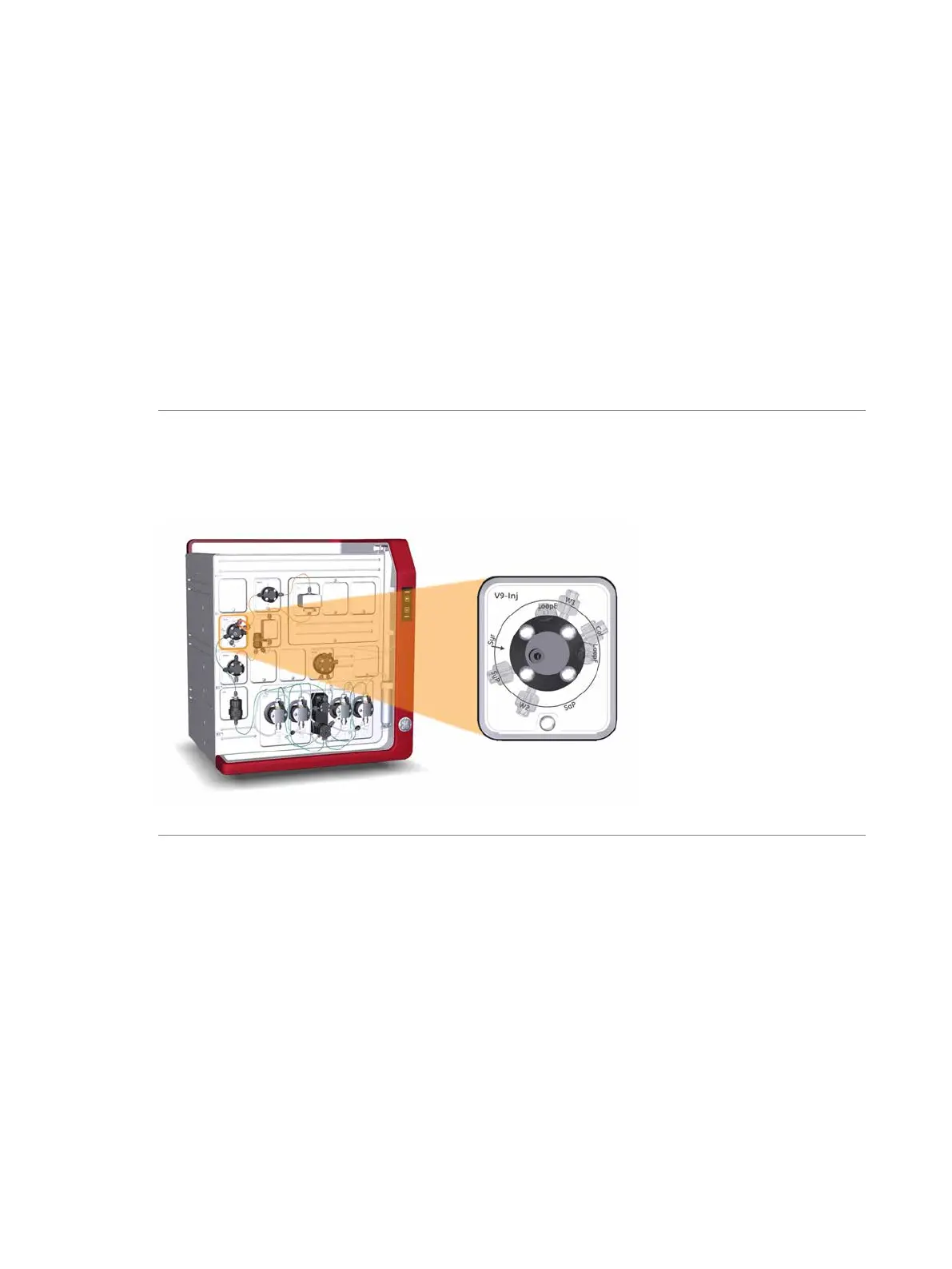

The illustration below shows the location, together with a detailed view of the Injection valve, in this
exampel labeled V9-Inj.
Ports and flow paths of the Injection valve
The illustration and tables below describe the ports of and different flow paths through the Injection
valve.
The Injection valve can be set to different positions that give different flow paths through the valve.
