GE AKTApure User Manual

DescriptionPort
Outlet ports 1 - 10Out1 -
Out10
Port to Fraction collector
Note:
If a secondary Fraction collector F9-R is used it should be connected to port Out10.
Frac
Waste portW
Ports of Outlet valves V9-Os and V9H-Os

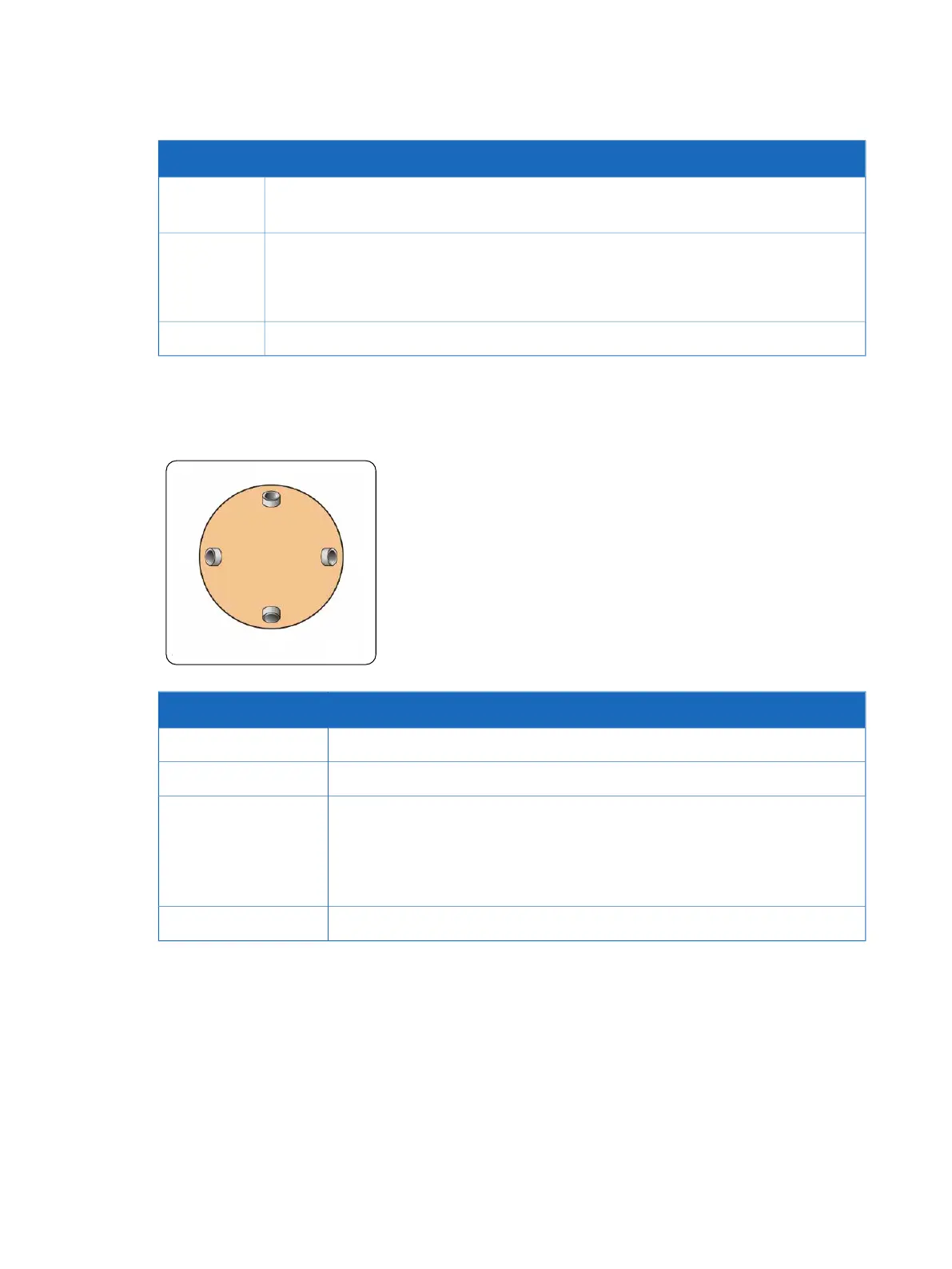

The illustration below shows the ports of Outlet valve V9-Os.
In
Out1Frac
W
V9-Os
DescriptionPort
Inlet portIn
Outlet portOut1
Port to fraction collector
Note:
If a secondary Fraction collector F9-R is used it should be connected to port
Out1.
Frac
Waste portW
66 ÄKTA pure User Manual 29119969 AB
2 The ÄKTA pure instrument
2.4 Instrument modules
2.4.11 Outlet valves
