Module Bus Flex board
Module Bus Flex board connects the CPU board of the miniC unit and the recorder board to
the module bus.

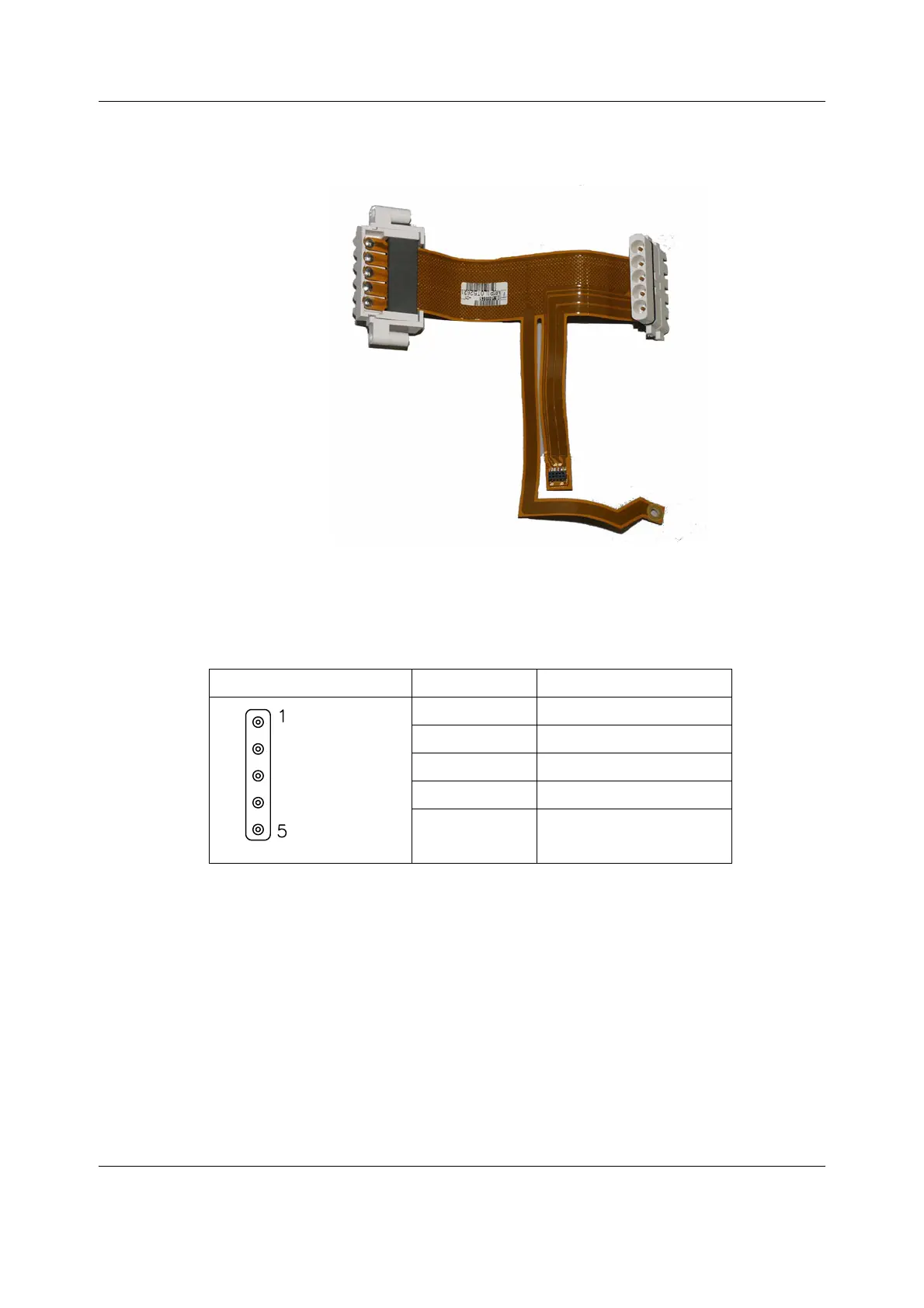

Figure 7 Module bus flex board
3.3 Connectors and signals
3.3.1 Module bus connector
5 pin female connector Pin No. Signal
1
GND
2
Vmod 13.8 - 16 V
3
Data +
4
Data -
5
Shield
