B30 Patient Monitor
8-18
Document no. 2044677-001
5 N-FCREC Module disassembly and
reassembly
CAUTION When reassembling the module, make sure that the tubes and cables are not
pinched between the boards and the cover.
5.0.1 Instructions after replacing MiniC unit
After replacing the MiniC unit:
• perform the sampling system leak test
• perform the occlusion test
• perform the gas calibration
5.0.2 Before disassembly
NOTE: Wear a grounded, antistatic wristband when handling PC boards. Electrostatic
discharge may damage components on the board.
Disconnect the Extension Module from the monitor.

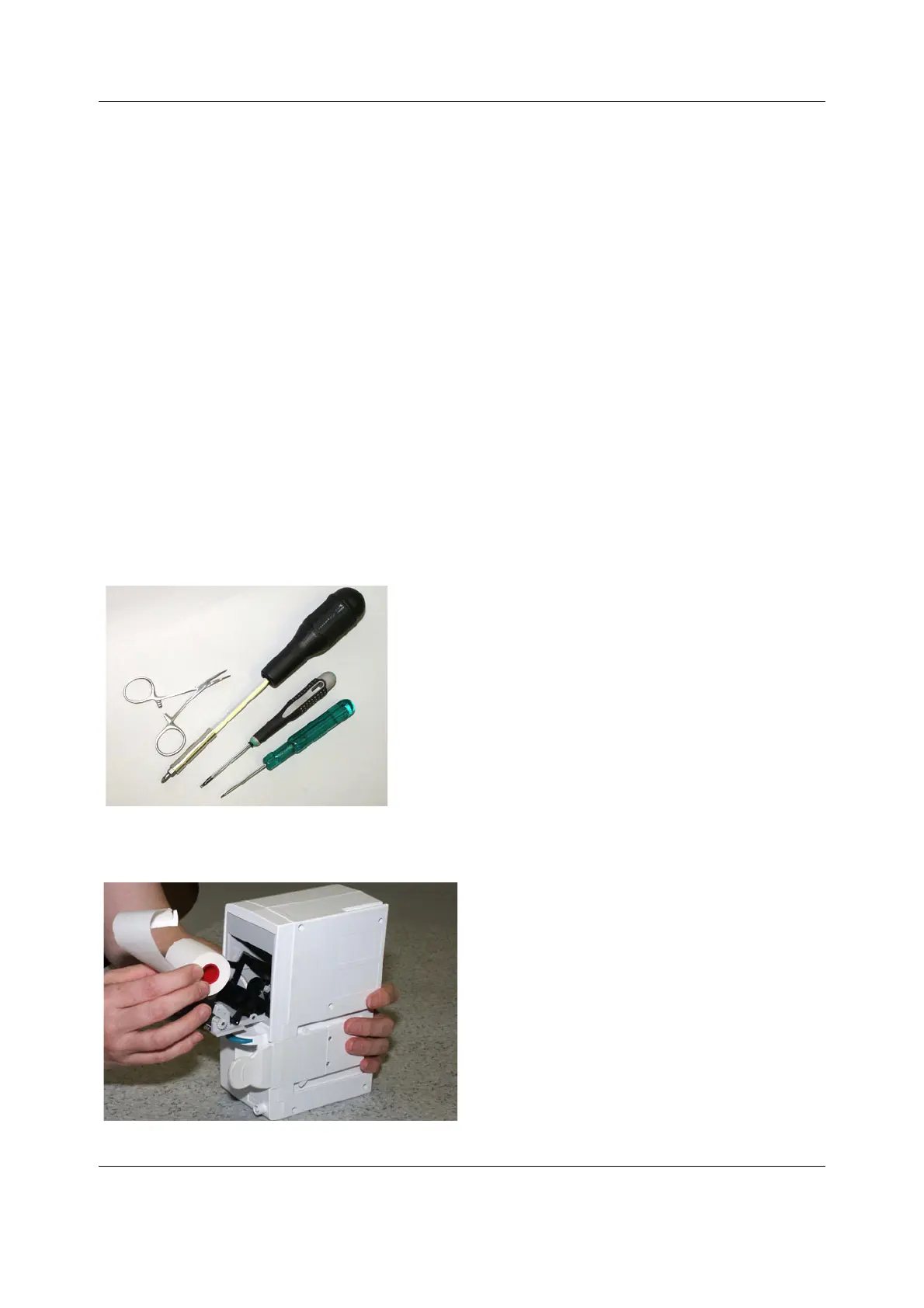

Tools needed
- screwdrivers, TORX; T8, T10, T15
- crosshead screwdriver; M15
- flat blade screwdriver
- pinchers
- antistatic wristband
Disassemble the Extension Module
1. Remove the Mini D-fend.
2. Open the recorder unit paper cover and remove
the paper roll, if installed.
