GE b30 Technical Reference Manual

System installation
2-4
Document no. 2044677-001
1.4 Monitor connections

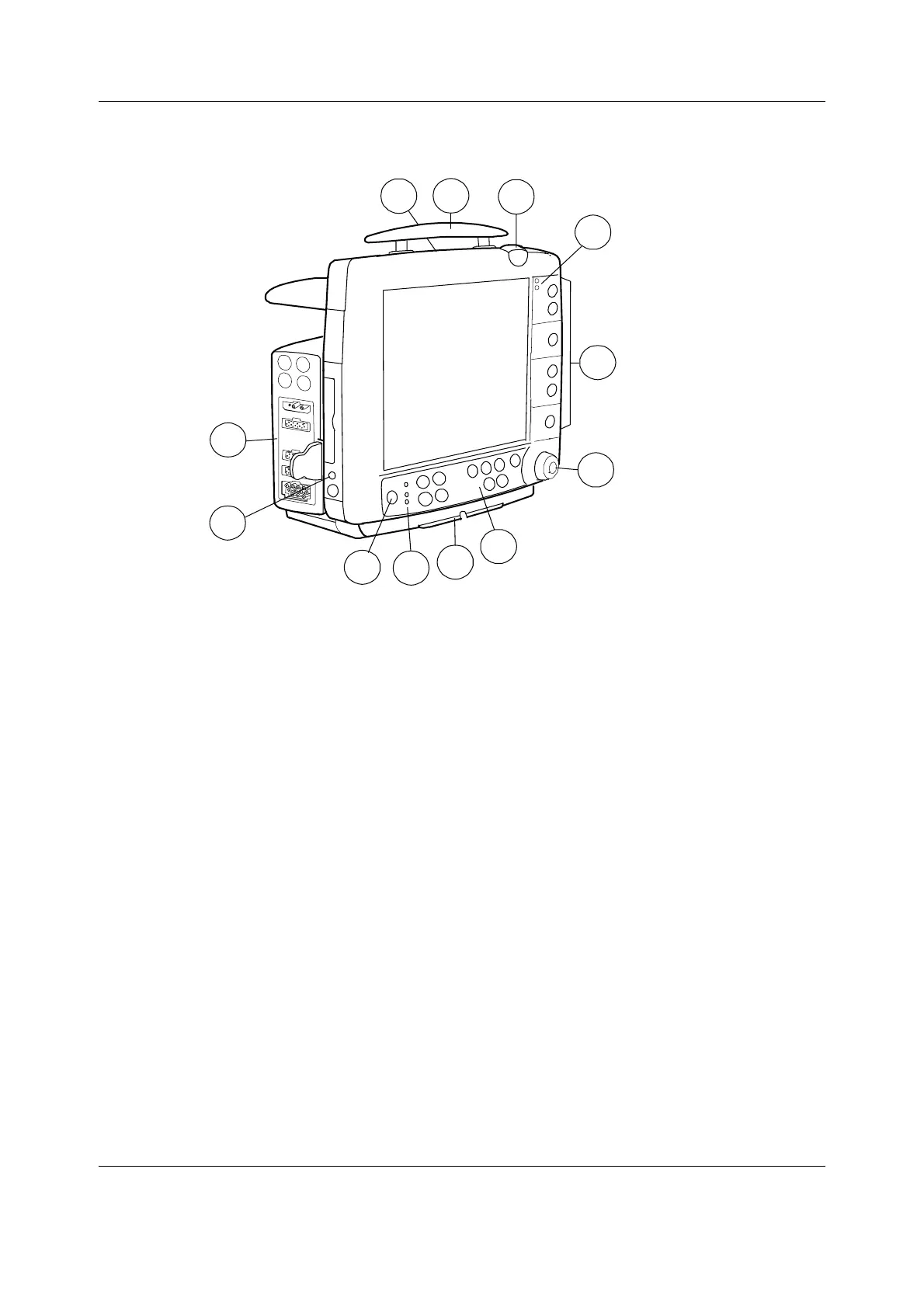

Figure 4 B30 font panel
(1) Battery compartment
(2) Transportation handle
(3) Alarm light
(4) Alarm LED indicators
(5) Side panel keys
(6) The ComWheel
(7) Command Board keys
(8) Guide rail for GCX mounting
(9) Mains power and battery LEDs
(10) ON/standby key
(11) Connector for defibrillator synchronization (X5)
(12) Measurement modules
You can use one E-PSM(P)W and/or one N-F(C)(REC) module in the monitor at a time.
1
12
11
2
3
5
4
6
7
9
8
10
