1.3.1 E-PSM(P)W Mounting Accessories
Intended use
The Module Bus Adapter for PSMW is intended for connecting the Pole Mount for PSMW to the
B30 monitor.
With Module Bus Adapter, the Pole Mount for PSMW, short or long, can be connected to the B30
monitor . The E-PSM(P)W module can be removed from the B30 monitor and docked to the Pole
Mount for PSMW, short or long.

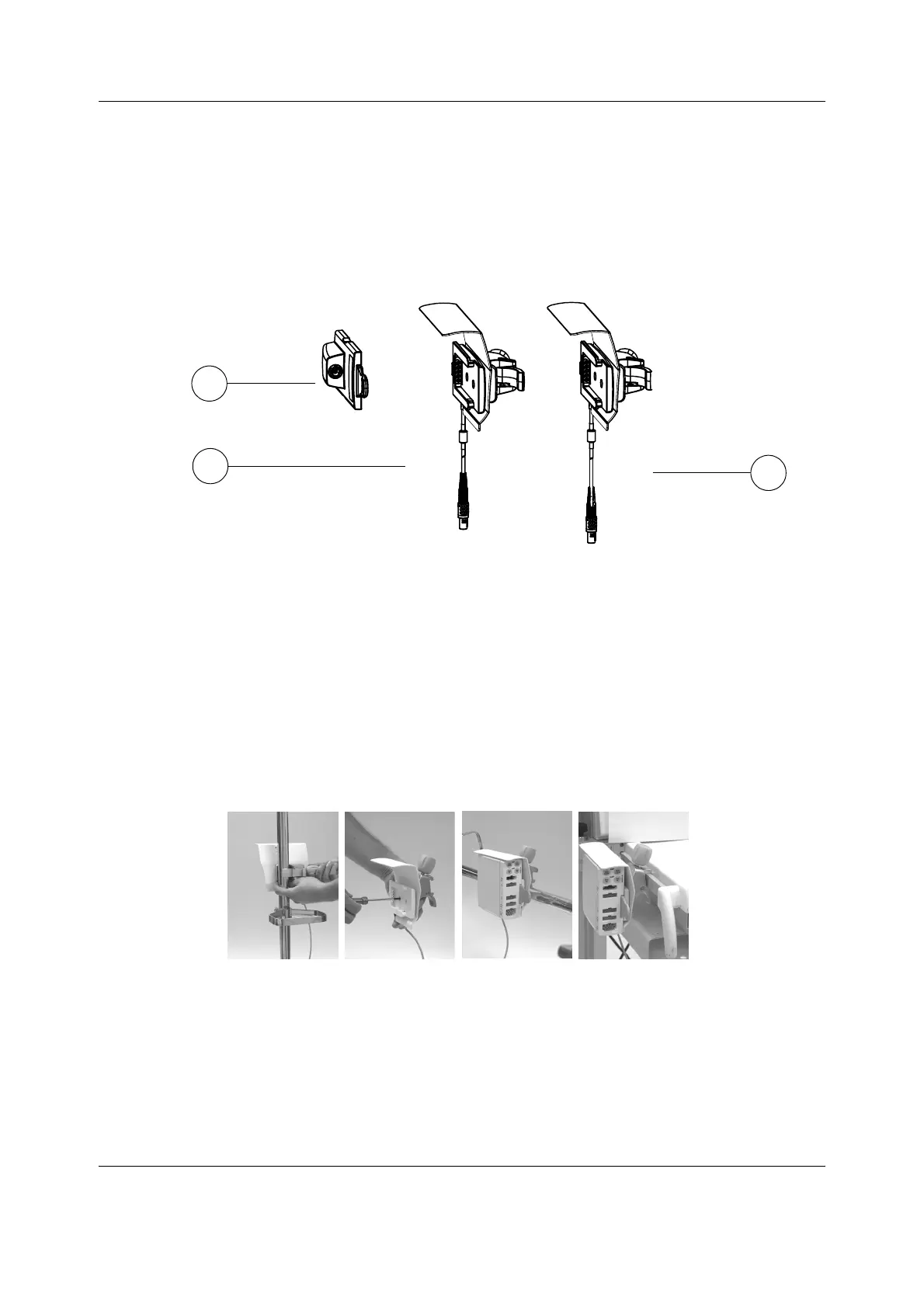

Figure 3 E-PSM(P)W mounting accessories
1. M1051025 Module Bus Adapter for
2. M1049197 Pole Mount for , short
3. M1051023 Pole Mount for , long
WARNING Make sure that the Pole Mount for PSMW is always used in vertical position
to prevent water from entering the E-PSM(P)W module.
Pole Mount for PSMW – Instructions for connecting to an IV pole, vertical
position
Fasten the Pole Mount for PSMW with the fastening screw of the clamp
and tighten properly to an IV pole.
2
1
3
