GE MEDICAL SYSTEMS
D
IRECTION FK091075, REVISION 04 VIVID 3N PRO/EXPERT SERVICE MANUAL
Chapter 8 Replacement Procedures 8-77
8-5-10-4 CDRW Drive Installation Procedure

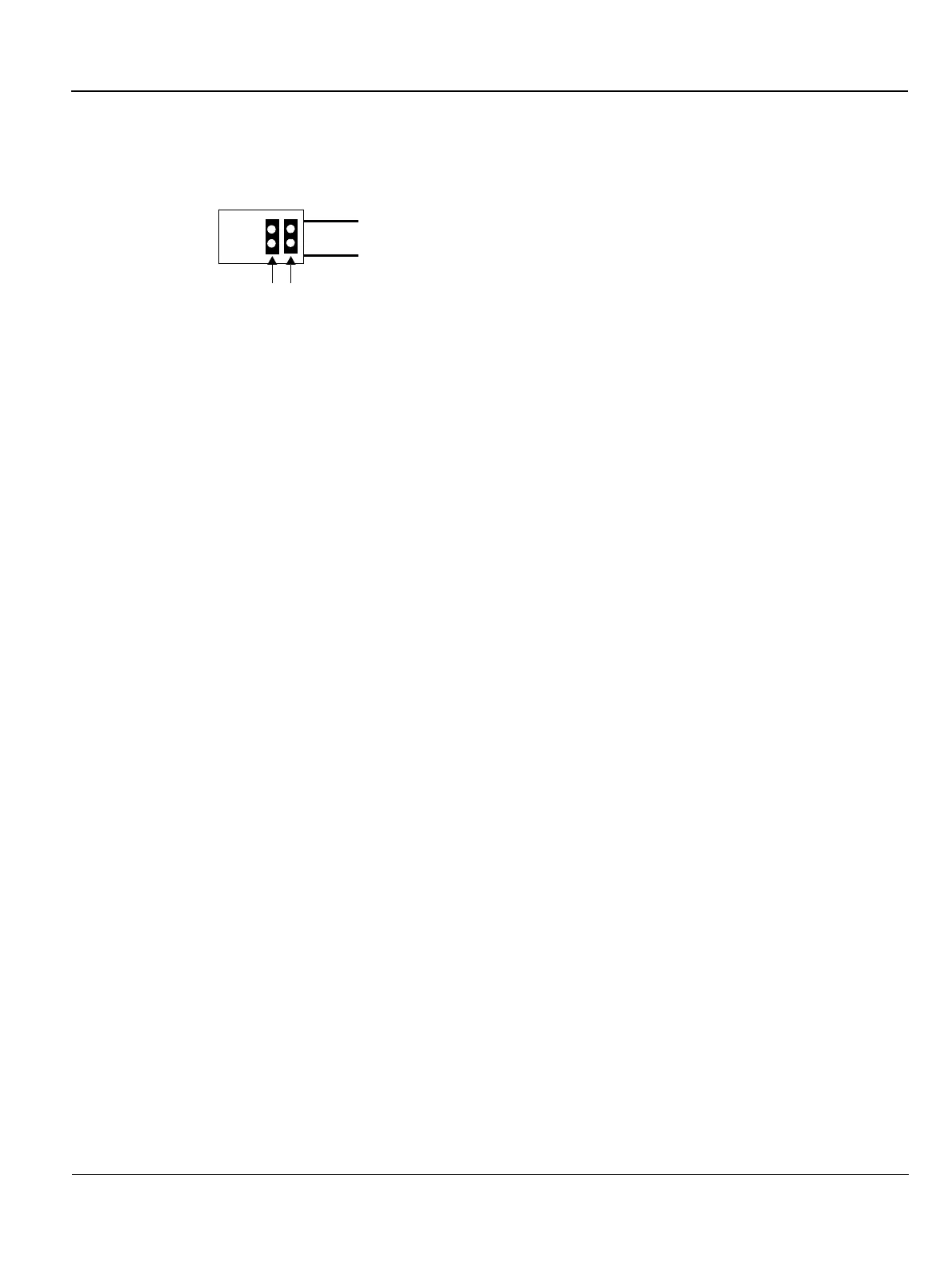

Note: Before installing the new CDRW Drive, make sure the jumper settings closest to the data
cable are shorted as follows:
1.) For BEP1:
Assemble the black plastic slides provided with the CDRW drive, or use those from the drive
previously removed.
For BEP2:
Use the metal slides provided with the CDRW drive, or use those from the drive previously
removed.
2) Carefully slide the CDRW Drive into the front of the BEP (refer to Figure 8-66 "CDRW Drive
Removal" on page 8-76).
3) Reconnect the cables (data and power) to the rear of the CDRW Drive.
4) Install the BEP left and right side covers, as described in the appropriate procedure:
8-5-2-4 "BEP1 - Left and Right Side Cover Installation Procedure" on page 8-62, or 8-5-3-4 "BEP2
- Side Cover Installation Procedure" on page 8-64.
5.) Reconnect the power cable to the rear of the BEP.
6) Return the Vivid 3N rear, left and right covers - see the 8-2-2-4 "Side Covers Installation Procedure"
on page 8-4 and 8-2-4 "Rear Cover Replacement Procedures" on page 8-7.
Data cable
Power cable
MasterSlave
To Next Page
