GE MEDICAL SYSTEMS
D
IRECTION FK091075, REVISION 04 VIVID 3N PRO/EXPERT SERVICE MANUAL
8-92 Section 8-6 - Lower Section Components Replacement
Section 8-6
Lower Section Components Replacement
8-6-1 AC Distribution Box Replacement Procedure
8-6-1-1 Tools
Use the appropriate flat and Phillips-type screw drivers and a wire cutter as indicated in the AC
Distribution Box replacement procedure.
8-6-1-2 Preparation
Shut down the Vivid 3N Pro/Expert ultrasound unit, as described in Chapter 3 - Installation.
8-6-1-3 AC Distribution Box Removal Procedure
1) Remove the Vivid 3N left, right and rear covers, as described in 8-2-2-3 "Side Covers Removal
Procedure" on page 8-4, and 8-2-4-3 "Rear Cover Removal Procedure" on page 8-7.
2) Unplug all the internal cables from the AC Distribution Box and the voltage setting plugs at Jumper1
and Jumper2.
3) Unscrew the Ground cable located at the top-right corner of the AC Distribution Box.
4) Remove the two screws that are located on the lower bracket of the AC Distribution Box.

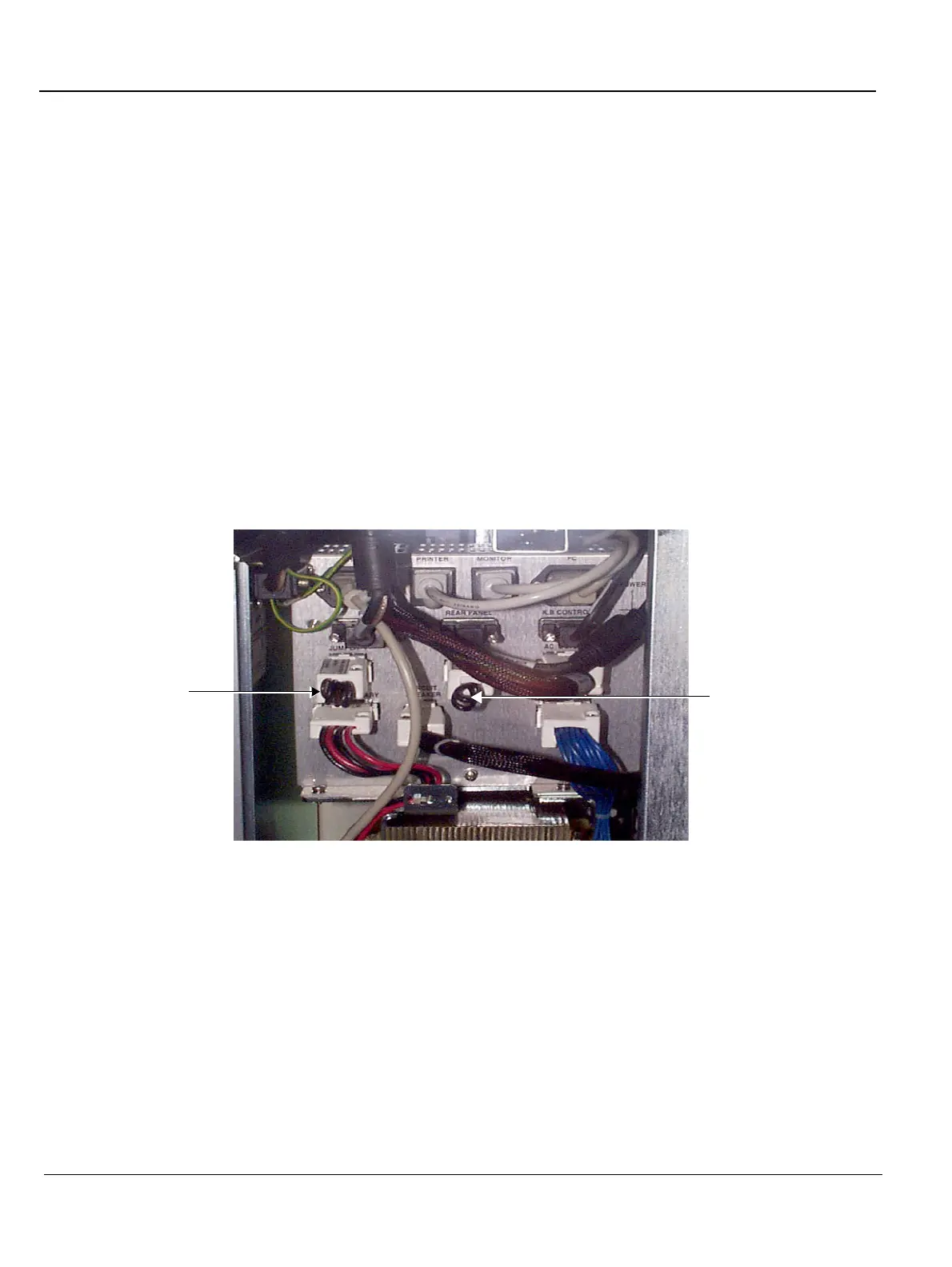

Figure 8-78 Lower Bracket of the AC Distribution Box
5) Gently pull the AC Distribution Box towards you, pulling it out through the rear of the machine.
Connector
Primary
Connector
Secondary
To Next Page
