Chapter 8 Replace
ment Procedures
8-81
8-5-12-3
B
EP1 - ECG Module Removal Procedure
(cont’d)
8)
Disconnect the power cable and COM2 cable
from the rear of the ECG Module - see
Fig
ure 8-68
below.
9)
Carefully slide out the ECG Mo
dule
from the front of the BEP.

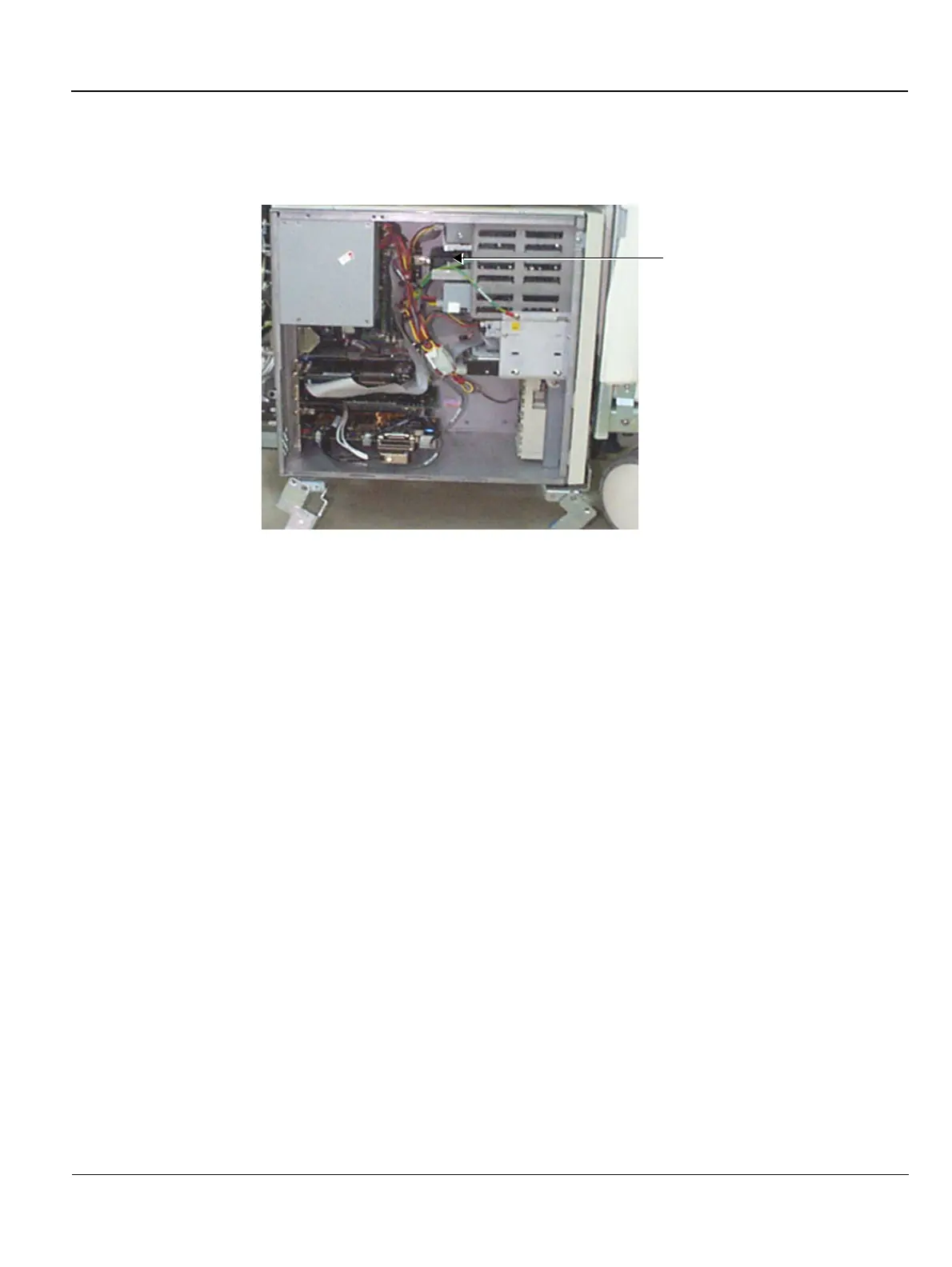

Figure 8-68 ECG Module - BEP1
ECG Module
450
452
