8-8-3-4 JVC VCR Setup Procedures
8-8-3-4-1 Front Panel Setup
1) Open the flip-down switch cover on the lower left side of the JVC front panel (by pulling downwards),
as seen in Figure 8-110, above.
2.) Check that the switch settings for each of the following switches is correct (as shown below).
If necessary, adjust accordingly:
TBC - Set to OFF
Hi Fi Select - Set to Hi-Fi L + R
If setting incorrect, press the Hi Fi Select button repeatedly until
Hi-Fi L + R is selected (and visible at the bottom of the LCD display).
Y/C Line (video input) - Set to Y/C
RS-232C/Local/Remote- Set to RS-232C

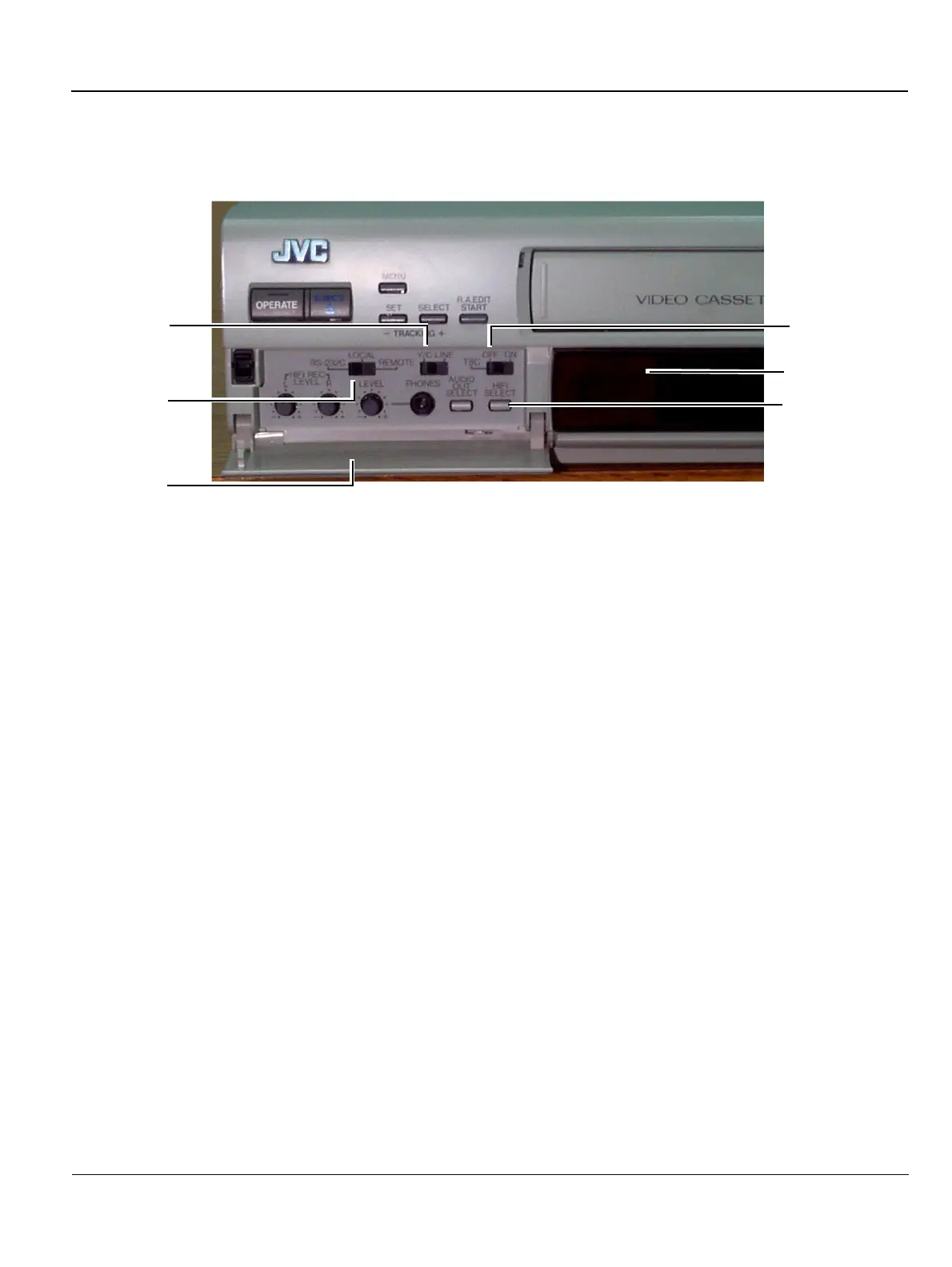

Figure 8-110 JVC VCR Front Panel - Switch Settings
Y/C
RS-232C
Flip-down
Cover
TBC
Hi Fi Select
LCD Display
