GE MEDICAL SYSTEMS
D
IRECTION FK091075, REVISION 04 VIVID 3N PRO/EXPERT SERVICE MANUAL
3-30 Section 3-6 - Completing the Hardware Installation
3-6-4 Connecting the ECG (cont’d)
Note: For optimal ECG operation, use only electrodes that meet universal standards.

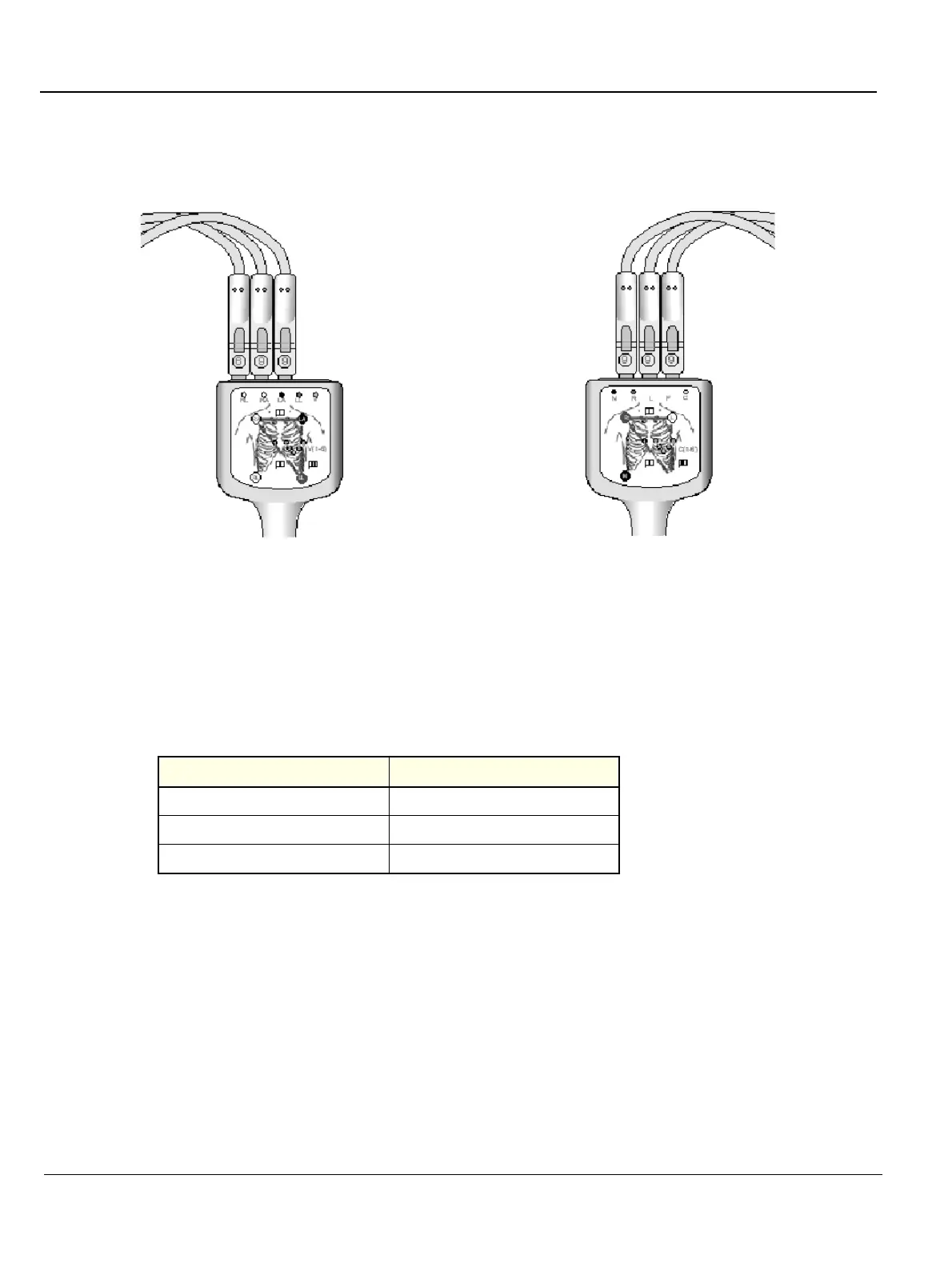

Figure 3-16 ECG Cable and Electrode Placement
Table 3-21 ECG Cable and Electrode Placement
AHA (America, Japan) IEC (Europe, Asia, ROW)
Black (LA) Yellow (L)
White (RA) Red (R)
Green (RL) Black (N)
AHA (Americas, Japan)
IEC (Europe, Asia, ROW)
