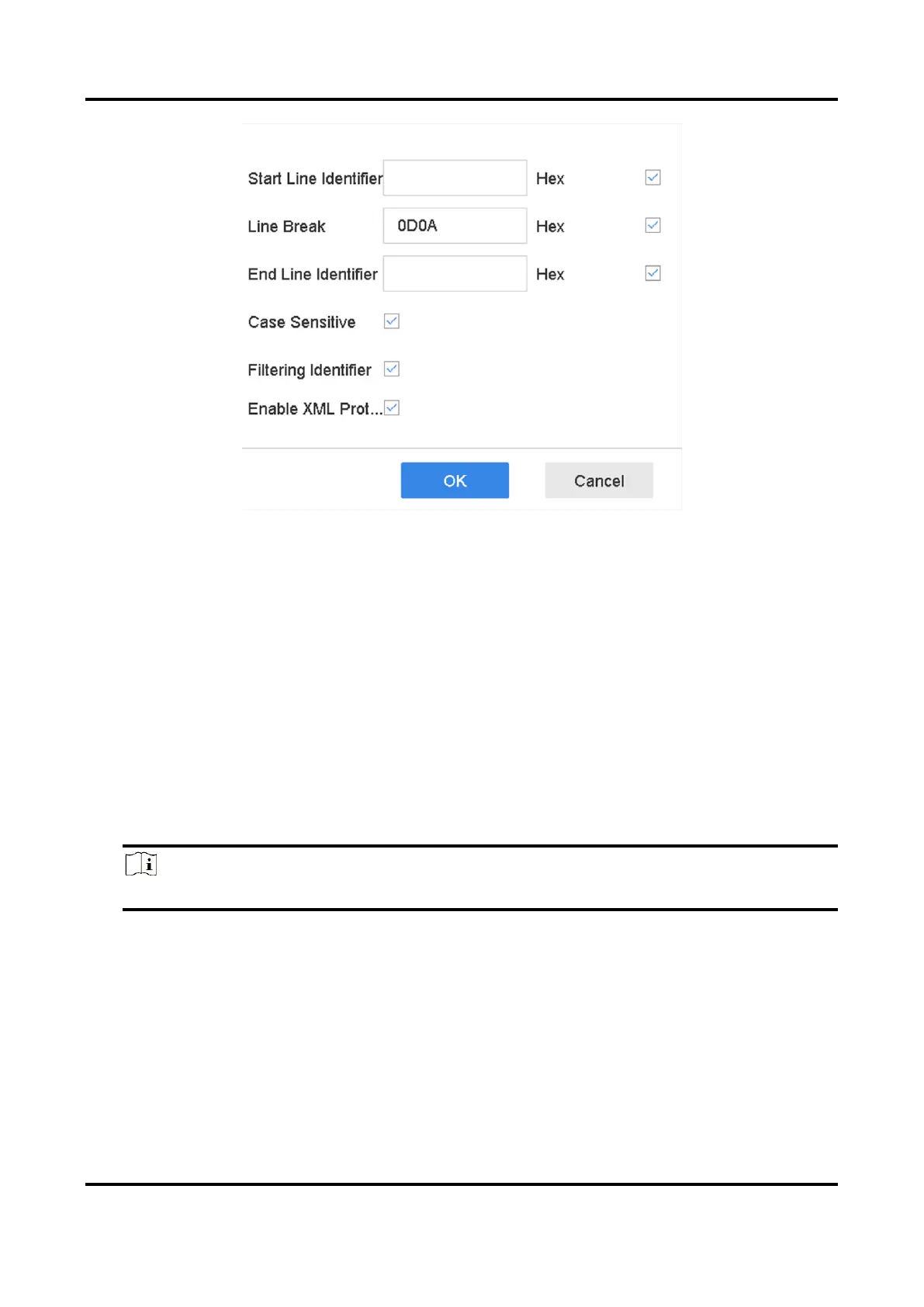

Figure 13-2 Universal Protocol Settings
EPSON
The fixed start and end line tag are used for EPSON protocol.
AVE
The fixed start and end line tag are used for AVE protocol. Serial port and virtual serial port
connection types are supported.
Click Custom to configure the AVE settings. Select Rule as VSI-ADD or VNET . Set the address
bit of the POS message to send. Click OK to save the settings.
NUCLEUS
Click the Custom to configure the NUCLEUS settings.
Enter the employee No., shift No., and the terminal No. in the field. The matching message
sent from the POS device will be used as the valid POS data.
Note
The NUCLEUS protocol must be used in the RS-232 connection communication.
6. Select Connection Mode and click Parameters to configure the parameters for each
connection mode.
TCP Connection
When using TCP connection, the port must be set from 1 to 65535, and the port for each POS
machine must be unique.
Set the Allowed Remote IP Address of the device sending the POS message.
UDP Connection
When using UDP connection, the port must be set from 1 to 65535, and the port for each POS
