Honda SH300 2009 User Manual

LUBRICATION SYSTEM
5-9

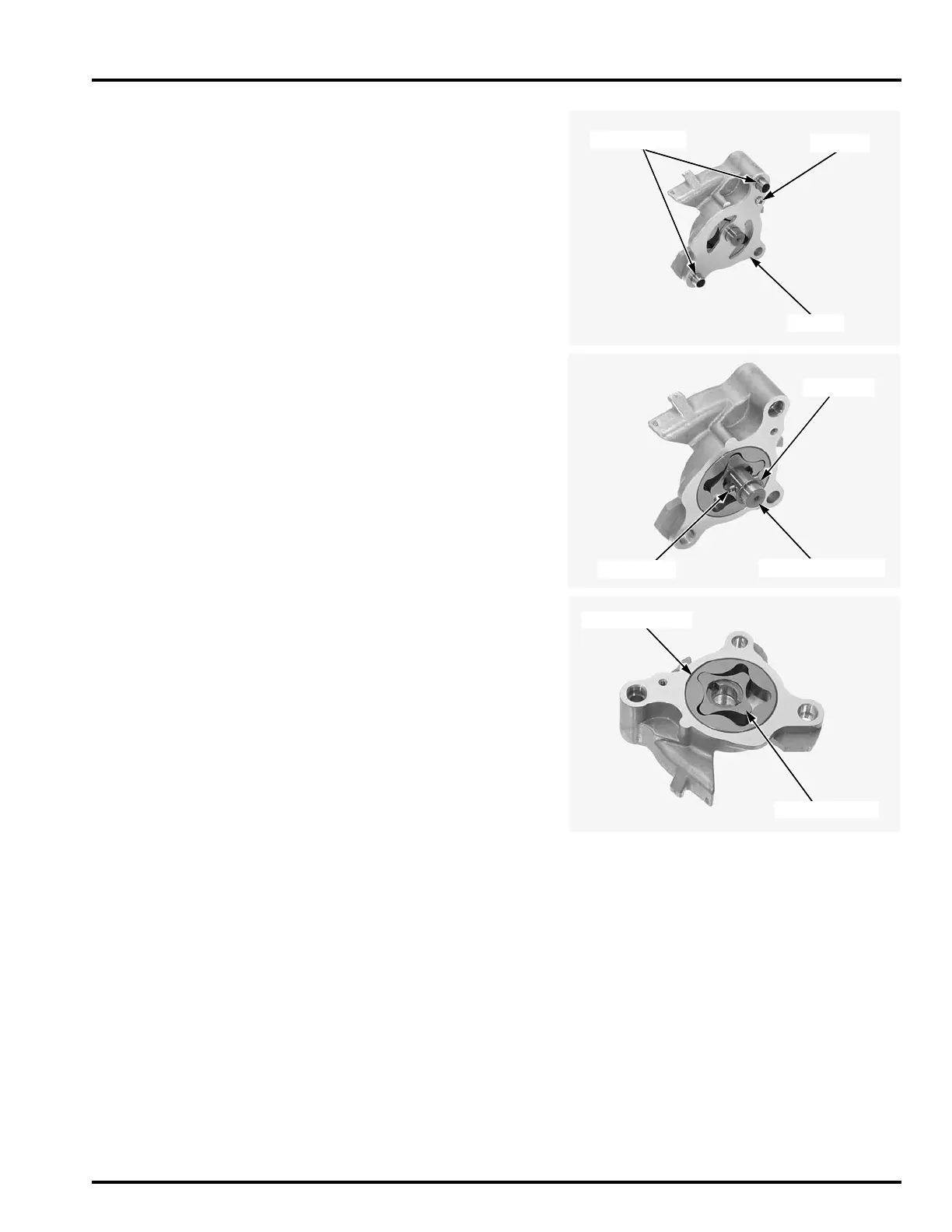

DISASSEMBLY
Remove the following:
– dowel pins
– screw
– pump cover
– oil pump shaft
– thrust washer
– drive pin
– inner rotor
– outer rotor
Wash all parts with a high flash point or non-flam-
mable solvent.
COVER
SCREW
DOWEL PINS
DRIVE PIN
WASHER
OIL PUMP SHAFT
OUTER ROTOR
INNER ROTOR

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
